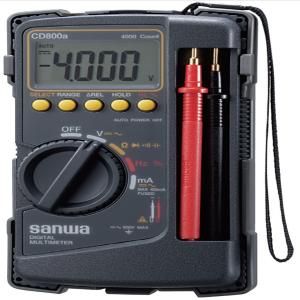

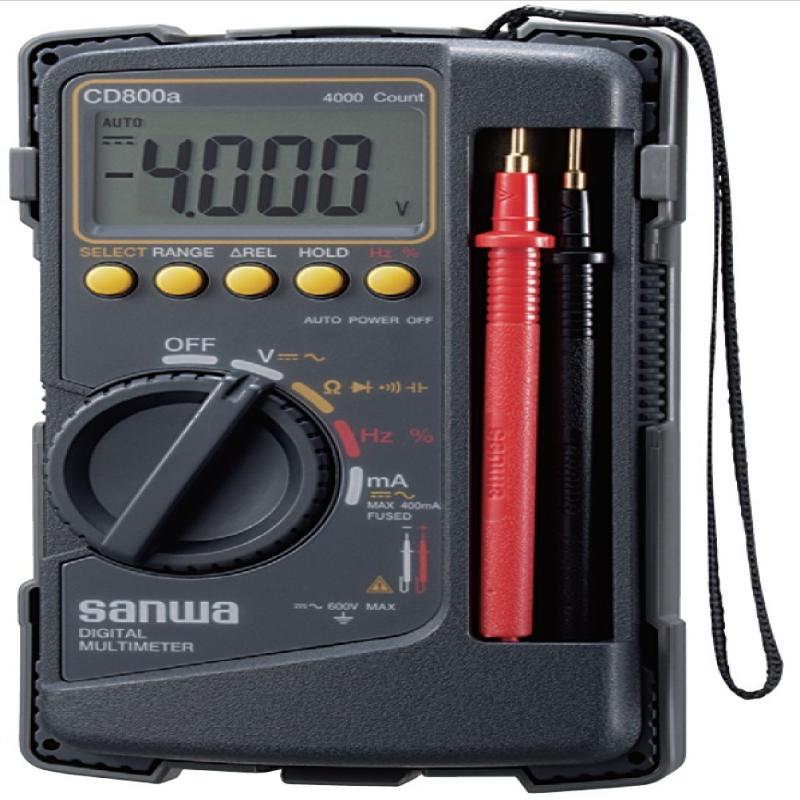

SANWA CD800A Digital Multimeter (China)
৳4840
The Sanwa CD800A Digital Multimeter is a compact and reliable tool designed for professionals and hobbyists alike. Whether you're troubleshooting household electronics, conducting low-voltage circuit analysis, or performing routine maintenance, this multimeter offers the accuracy and durability you need.
| Function | Measuring Range | Best Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DC Voltage | 400mV/4V/40V/400V/600V | ±(0.7%+3) | 0.1mV | 10MΩ–100MΩ |
| AC Voltage | 4V/40V/400V/600V | ±(1.6%+5) | 0.001V | 10MΩ–11MΩ |
| DC Current | 40mA/400mA | ±(2.2%+5) | 0.01mA | – |
| AC Current | 40mA/400mA | ±(2.8%+5) | 0.01mA | – |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.2%+5) | 0.1Ω | – |
| Capacitance | 50nF/500nF/5μF/50μF/100μF | ±(5%+10) | 0.01nF | – |
| Frequency | 5Hz–100kHz | ±(0.5%+3) | – | – |
| Duty Cycle | 20%–80% | ±(0.5%+5) | – | – |
| Continuity | Buzzer at 10Ω–120Ω | – | – | Open Voltage: ~0.4V |
| Diode Test | – | – | – | Open Voltage: ~1.5V |
