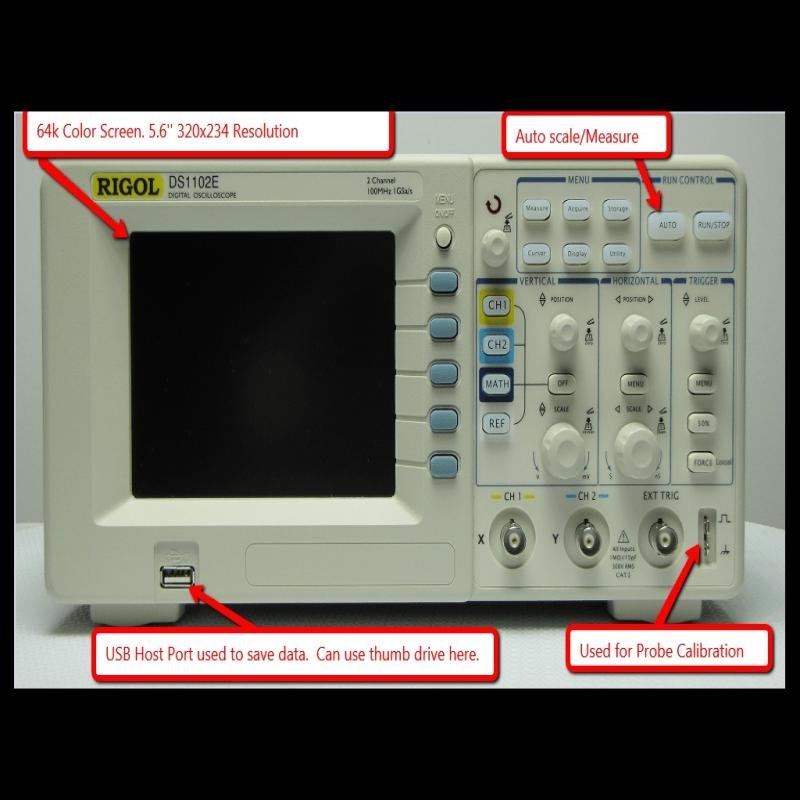

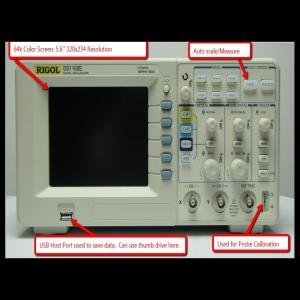

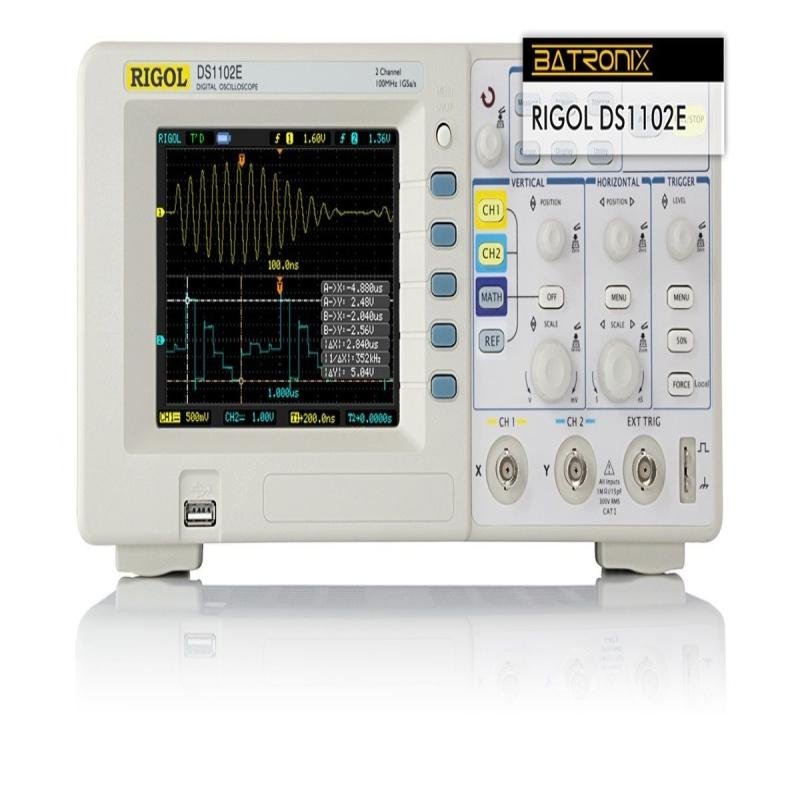

Rigol DS1102E 100MHz 2 Channels 1Gs/S Digital Storage Oscilloscope
৳29500 ৳38500
The Rigol DS1102E is a high-performance digital storage oscilloscope designed for both educational and professional applications. With a 100 MHz bandwidth and a maximum real-time sample rate of 1 GSa/s, it offers precise waveform analysis capabilities. Its user-friendly interface and robust features make it a popular choice among engineers and technicians.
Key Specifications
Bandwidth: 100 MHz
Channels: 2 analog channels
Sample Rate:
1 GSa/s (single channel)
500 MSa/s (dual channels)
Memory Depth: 1 Mpts (1 million points)
Display: 5.7-inch TFT color LCD
Vertical Sensitivity: 2 mV/div to 10 V/div
Trigger Modes: Edge, Pulse Width, Slope, Video, Alternate
Connectivity: USB host and device ports, RS-232 interface
Power Supply: 100–240 V AC, 50/60 Hz
Features
Ultrazoom Function: Allows users to zoom in on waveform details without losing context.
Automatic Measurements: Provides 20 types of measurements, including 10 voltage and 10 time parameters.
Cursor Measurements: Manual, Track, and Auto modes for precise measurements.
FFT Spectrum Analysis: Enables frequency domain analysis of signals.
Pass/Fail Testing: Compares input signals against predefined masks to determine compliance.
Advanced Triggering: Includes slope, edge, pulse width, and video triggers for complex signal analysis
