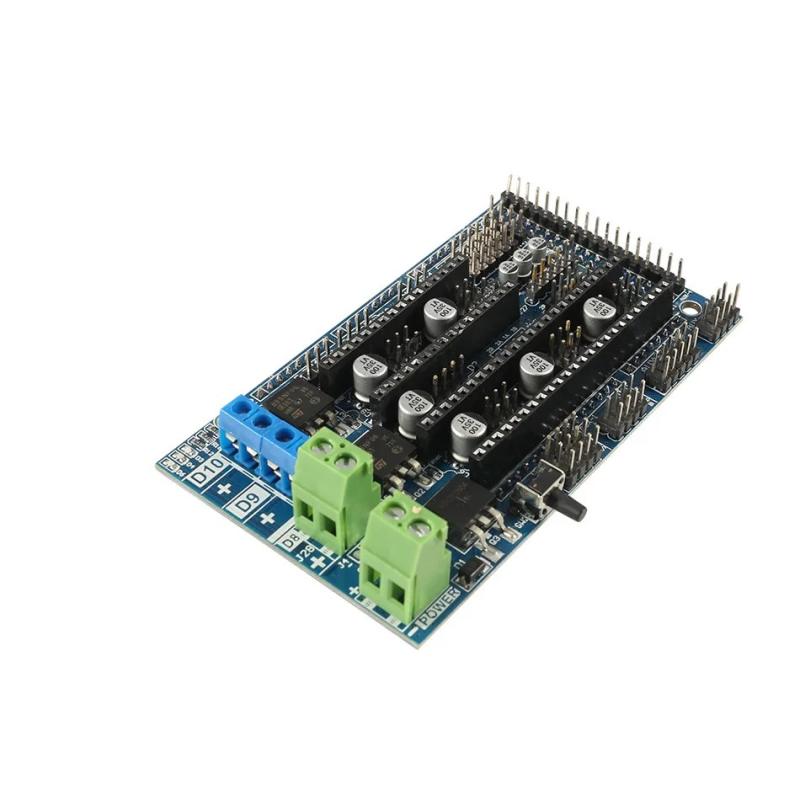

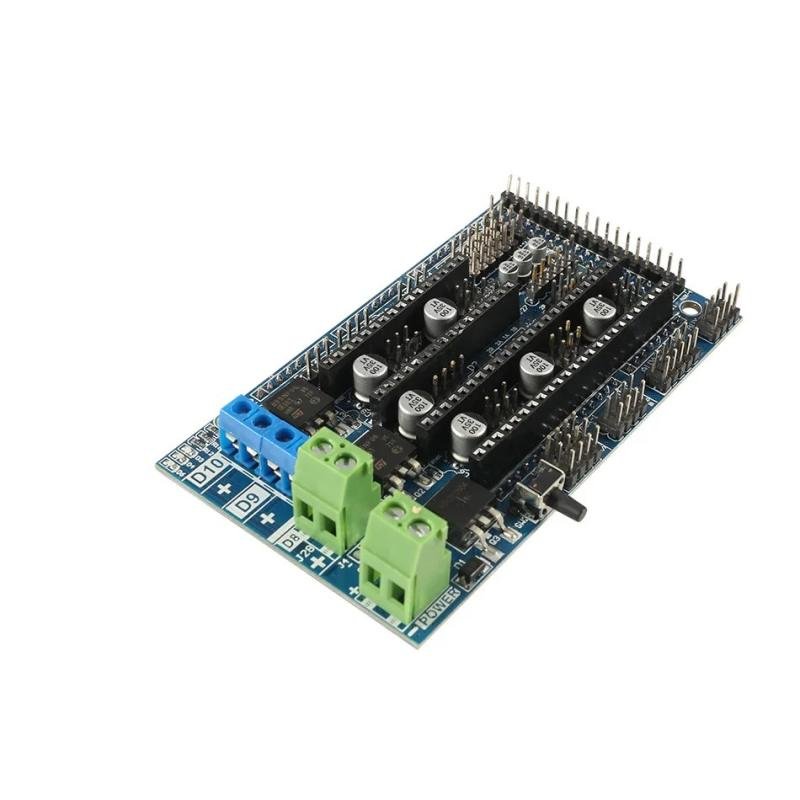

RAMPS 1.6 3D Printer Controller Board Marlin Klipper Motherboard
৳940
The RAMPS 1.6 is an upgraded controller board made for 3D printers and similar CNC-style machines. It builds on earlier versions (1.4, 1.5) with improvements in current handling, heat dissipation, and connector design. It works well with Marlin or Klipper firmware, offering more reliable performance for printers with heated beds, multiple stepper motors, and more demanding power requirements.
Categories:
3D Technology
/
Accessories
/
CNC & Laser Cutting
/
Material
Brand:
Made in China
SKU: Available
| Specification | Details |
|---|---|
| Model / Version | RAMPS 1.6 Controller Board (Marlin / Klipper compatible) |
| Price (BDTronics, Bangladesh) | BDT 940.00 |
| Heater & Fan MOSFET Outputs | Included (with heatsinks) |
| Thermistor Interfaces | 3 thermistor inputs |
| Stepper Motor Outputs | 5 outputs (for X, Y, Z, E0, E1) |
| Z-Axis Support | Dual Z motor outputs available |
| Fuse for Heated Bed | 11 Ampere |
| Connectors for High Current | New 2-pin terminal connectors for heater and bed |
| Firmware Supported | Marlin, Klipper |
| Compatible Stepper Drivers | A4988, DRV8825 |
| Indicator LED | Yes (heater output) |
| Expansion Pins | I²C and SPI available for future add-ons / sensors |
