RadioMaster Ranger Micro 2.4Ghz ELRS Module
৳10,200

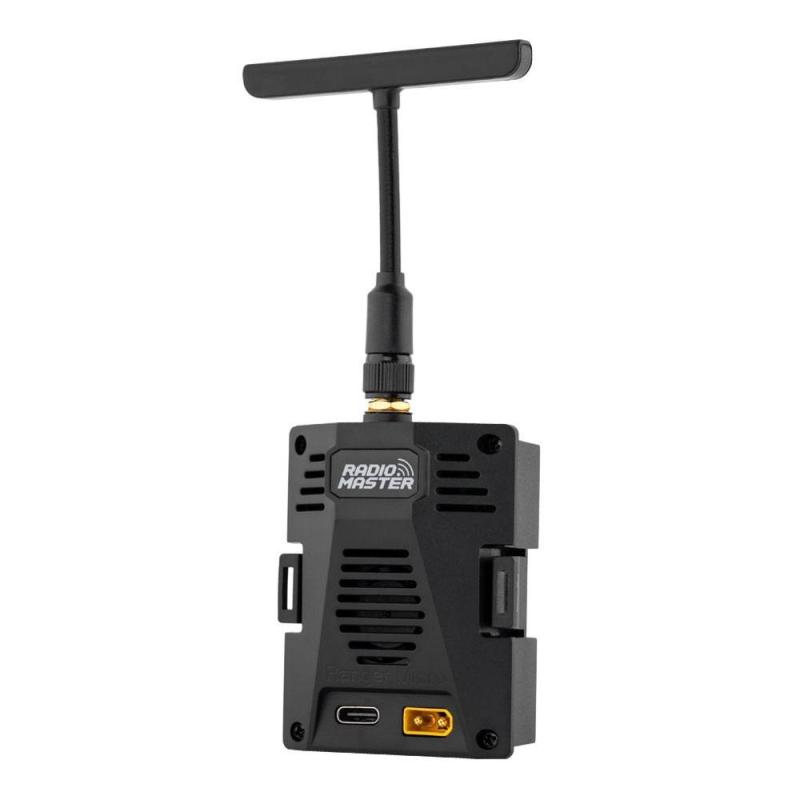

The RadioMaster Ranger Micro 2.4GHz ELRS Module is a compact and high-performance ExpressLRS (ELRS) module designed for FPV enthusiasts. It features a micro-sized form factor, making it compatible with radios like the RadioMaster TX16S MKII and TX12 MKII. The module offers packet rates up to F-1000Hz, adjustable RF output power up to 1W, and supports both WiFi and Bluetooth connectivity for advanced configuration.
| Feature | Specification |
|---|---|
| Model | RadioMaster Ranger Micro 2.4GHz ELRS Module |
| Frequency Range | 2400–2480 MHz |
| Packet Rate | Up to F-1000Hz |
| RF Output Power | 30dBm (FCC), 20dBm (CE) – Adjustable via LUA script |
| MCU | ESP32 (main), ESP8285 (aux, as ESP backpack) |
| RF Chip | SX1281IMLTRT |
| Power Supply | XT30 connector, 6V–16.8V DC input |
| Cooling System | High-efficiency internal cooling fan |
| Connectivity | WiFi and Bluetooth support |
| Module Bay | Micro size (compatible with RadioMaster TX16S MKII, TX12 MKII, and other micro-sized module bays) |
| Antenna | T-antenna included |

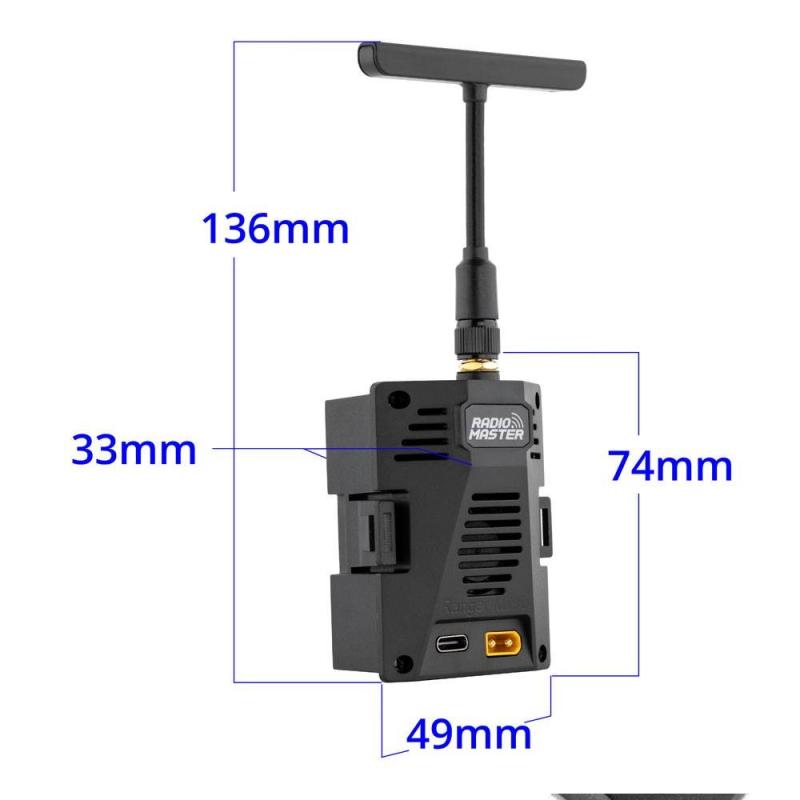

| Dimensions | 136 × 49 × 33 mm (with Moxon antenna), 74 × 49 × 33 mm (without antenna) |
| Weight | 50g (with Moxon antenna), 40.5g (without antenna) |
