Key Features
Dual-Band Operation: Simultaneous transmission on 2.4GHz and 900MHz frequencies, reducing packet loss and enhancing signal stability.
High Power Output: Dual 1-watt transceivers provide exceptional range and interference rejection.
Advanced Cooling System: Designed to manage power output and maintain optimal performance.
Compatibility: Works with existing 2.4GHz and 900MHz ELRS receivers, as well as dual-band (Gem-X) ELRS receivers.

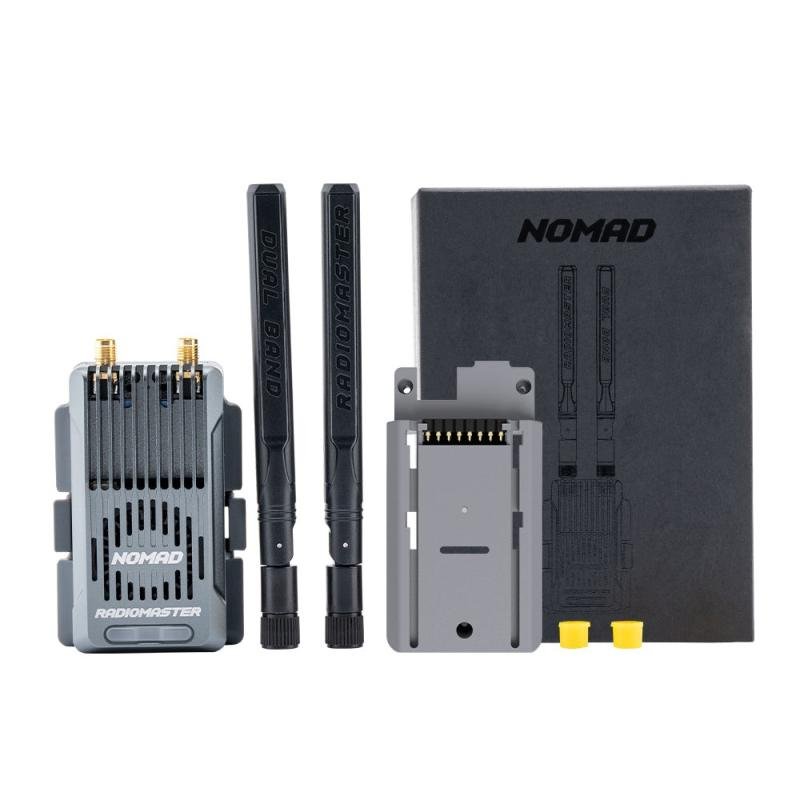

Adapters Included: Comes with micro and nano module adapters for universal fit.
Connectivity: Supports WiFi and Bluetooth for easy configuration and updates.
Built-in RGB Light Strip: Customizable lighting options for a personalized experience.
Robust Build: Lightweight yet durable construction to withstand the rigors of FPV flying.
Specifications
MCU: ESP32 (main), ESP32-C3 (auxiliary)
RF Chips: Semtech LR1121 x 2
Frequency Range:
2.4GHz: 2400 MHz - 2479 MHz
900MHz: 903 MHz - 927 MHz
Maximum Packet Rate: 500Hz (1000Hz support coming in ExpressLRS V3.5)
Minimum Receiver Refresh Rate: 50Hz
RF Output Power: 1000mW x 2
Power Supply: DC 6V - 16.8V via XT30
Weight:
With antenna: 87.20g
Without antenna: 71.10g
Dimensions: 80 x 45 x 40 mm (without antenna)
