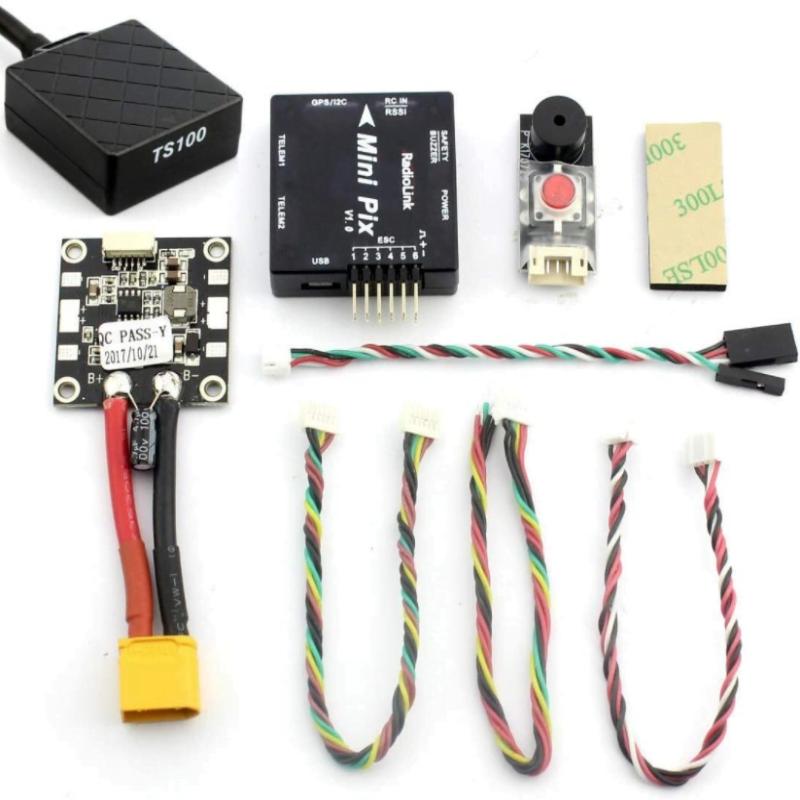

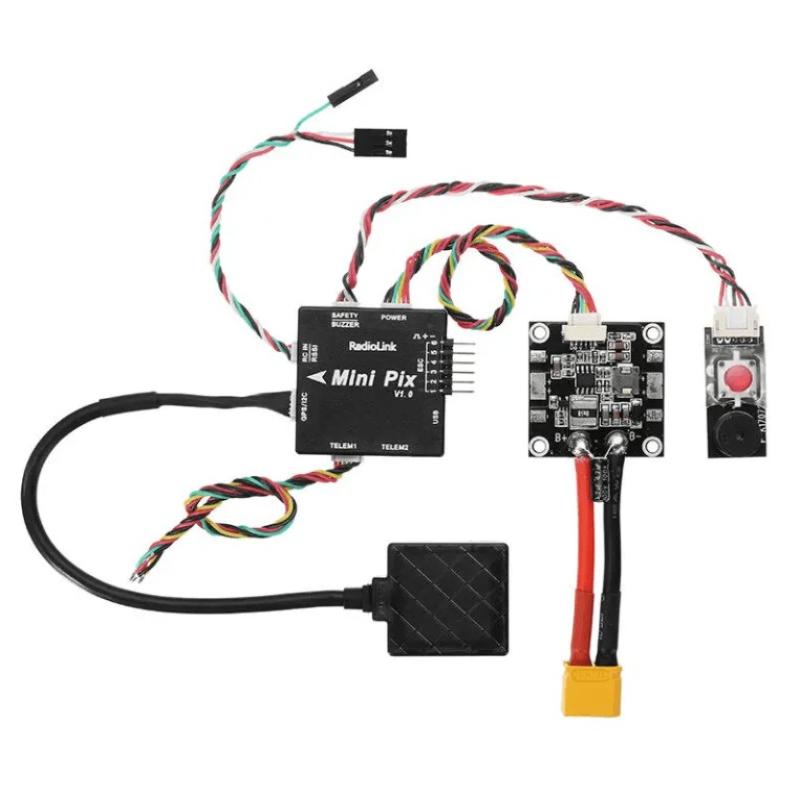

Radiolink Mini Pixhawk Full Set with M8N
৳24,000
The Radiolink Mini Pixhawk Full Set with M8N GPS is a compact and feature-rich autopilot system designed for various unmanned vehicles, including drones, fixed-wing aircraft, and ground vehicles. Based on the mature research and development of the Pixhawk platform, this system offers enhanced vibration damping and attitude hold capabilities, making it suitable for both hobbyist and professional applications.
| Feature | Details |
|---|---|

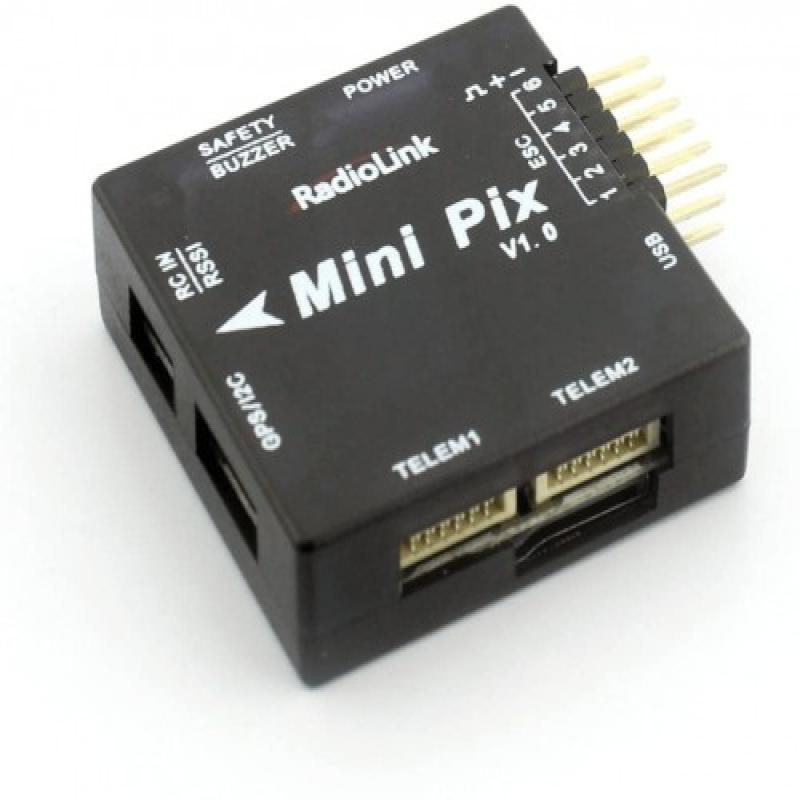

| Flight Controller | Radiolink Mini Pixhawk F4 |
| MCU | STM32F405VGT6 |
| Gyroscope | MPU6500 |
| Barometer | LPS22HB |
| Magnetometer | QMC5883L |

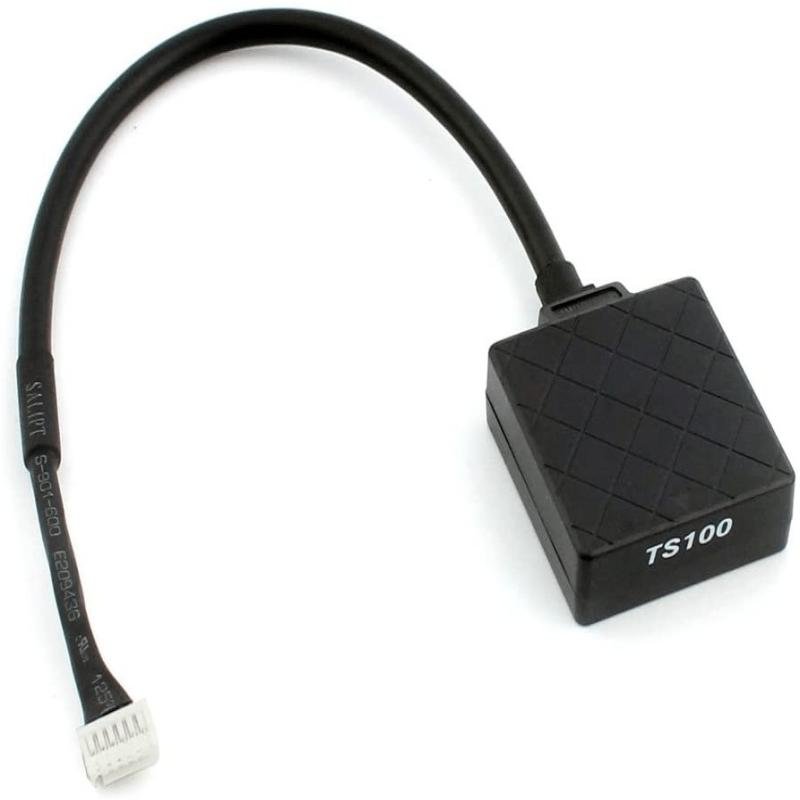

| GPS Module | Radiolink M8N GPS (u-blox UBX-M8030) |
| GPS Channels | 72-channel concurrent GPS/GLONASS/BeiDou |
| Position Accuracy | 50 cm |
| Satellite Acquisition | 20 satellites in 6 seconds in open ground |
| Telemetry | Supports PRM-03 OSD Information Telemetry Module |
| Power Input | 6.5–12.6V (2S–3S LiPo) |
| Mounting Holes | 30.5×30.5 mm (M3) |
| Operating Systems | Compatible with ArduPilot and PX4 |
Key Features
Enhanced Circuit Design: Optimized PCB layout reduces internal component interference, improving overall performance.
High-Precision GPS: The M8N GPS module offers 50 cm positioning accuracy and rapid satellite acquisition.
Versatile Compatibility: Supports various unmanned vehicle platforms, including multirotors, fixed-wing aircraft, and ground vehicles.
Comprehensive Telemetry: Compatible with the PRM-03 OSD Information Telemetry Module for real-time flight data display.
Open-Source Support: Fully compatible with ArduPilot and PX4, providing flexibility for custom configurations.
