Power Bank Controller Quick Charge 3.0 with USB Type C
৳340

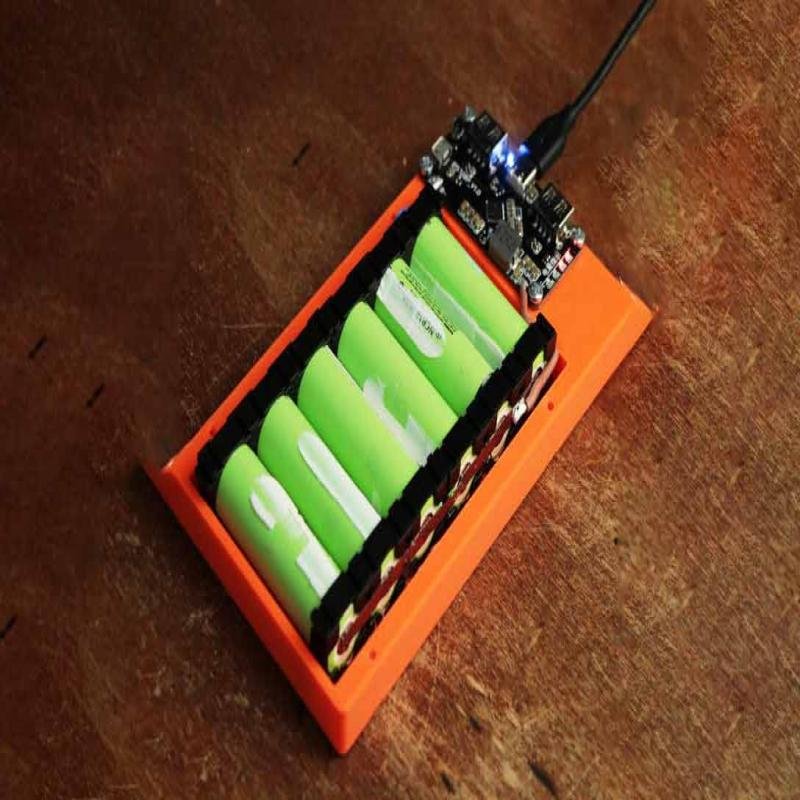

Upgrade your DIY power projects with the Quick Charge 3.0 Power Bank Controller featuring USB Type-C. Designed for modern gadgets, it supports fast charging for smartphones, tablets, and USB-C devices, ensuring your devices power up in less time. With multiple outputs, intelligent protection against overcharge/overheat, and a compact PCB design, it’s the perfect choice for tech hobbyists, repair shops, and DIY enthusiasts in Bangladesh. Build your own custom power bank that’s both powerful and future-ready.
This power bank controller board features Quick Charge 3.0 technology and a USB Type-C interface, ensuring fast and efficient charging for modern devices. Compact and reliable, it’s an excellent choice for DIY power bank projects and portable charging solutions.

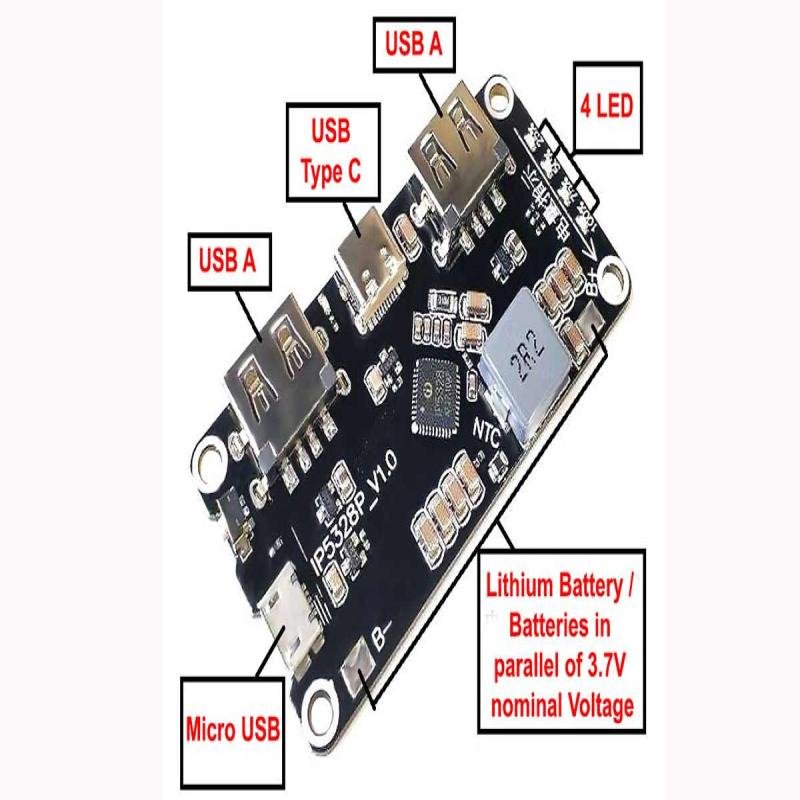

Features:
- Supports Qualcomm Quick Charge 3.0 fast charging protocol
- Has both "USB type C" and "Micro USB" port for charging power bank battery
- Power bank battery can be fast charged (up to 15 watt) with QC 3.0 supported fast chargers
- Two "USB A" port with maximum 18 watt power delivery from the power bank
- Power bank battery level indicator LEDs and power on/off button
Note: Power adapters and smartphones that don't use qualcomm quick charge protocol (e.g.: vooc charging of oppo/ realme or warp charging of oneplus), if used with this module, will result in max 5V and max 15 watt of charging/discharging.
Specification of Power Bank Controller Quick Charge 3.0 with USB Type C

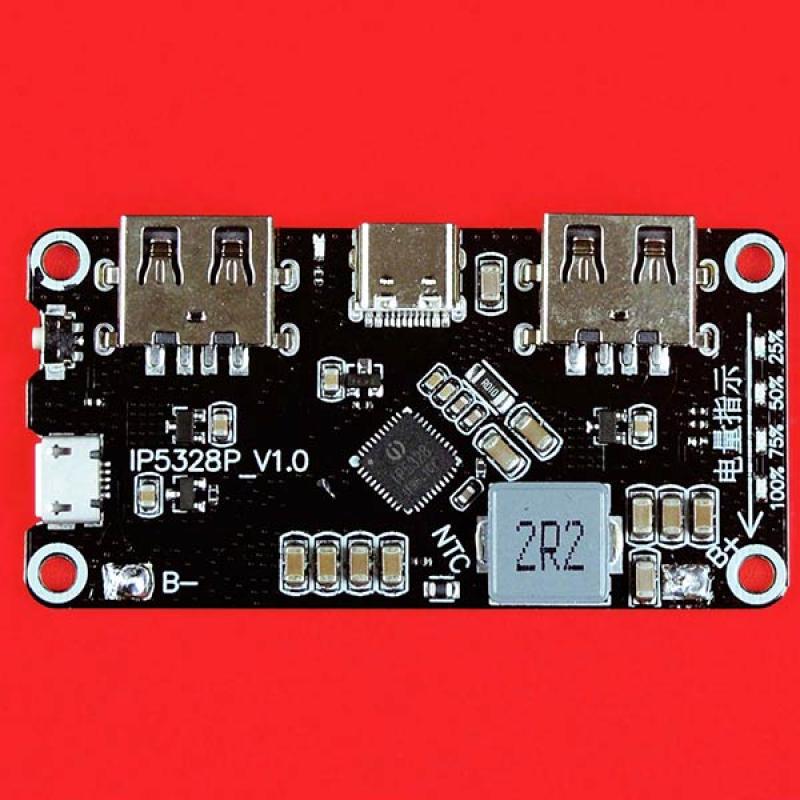

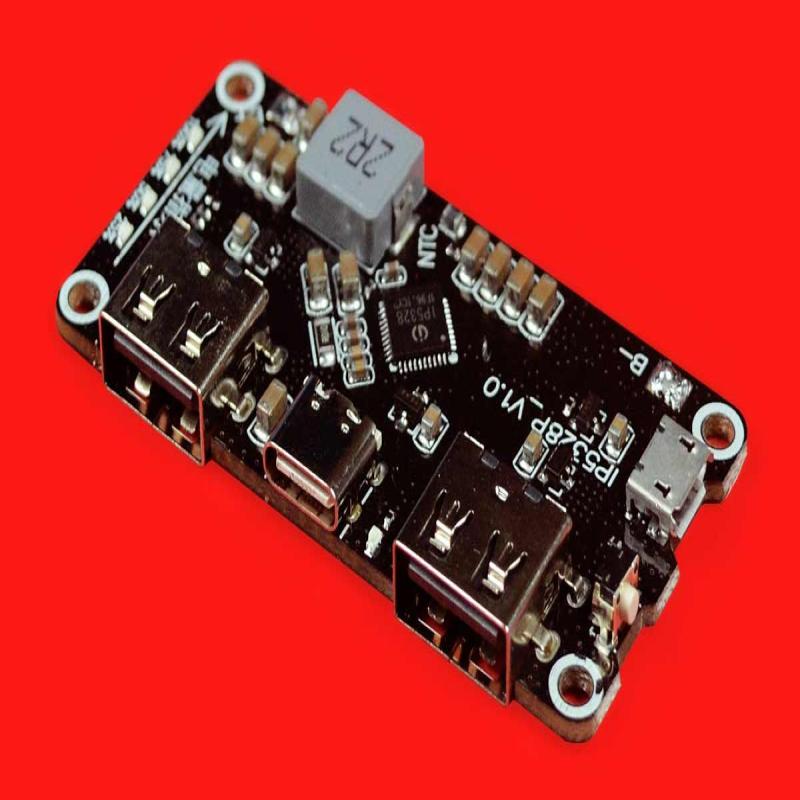

Controller IC: IP5328P
Supports Quick Charge and USB Power Delivery (PD)
Input (Power Bank Battery Charging):
- 9V 1.75A and 5V 3A (max)
- Input Power: 16W max (QC3 or QC4 charger of 18W or more)
- Max cutoff voltage of power bank battery: 4.23V
Output (Power Bank Battery Discharging):
- 5V 3A, 9V 2A, 12V 1.5A (max)
- 18W max (depended on power bank battery capacity and device being charged)
- Min cutoff voltage of power bank battery: 2.5V
Product size: 65mm * 32.5mm thin quadrangular hole diameter 3mm
