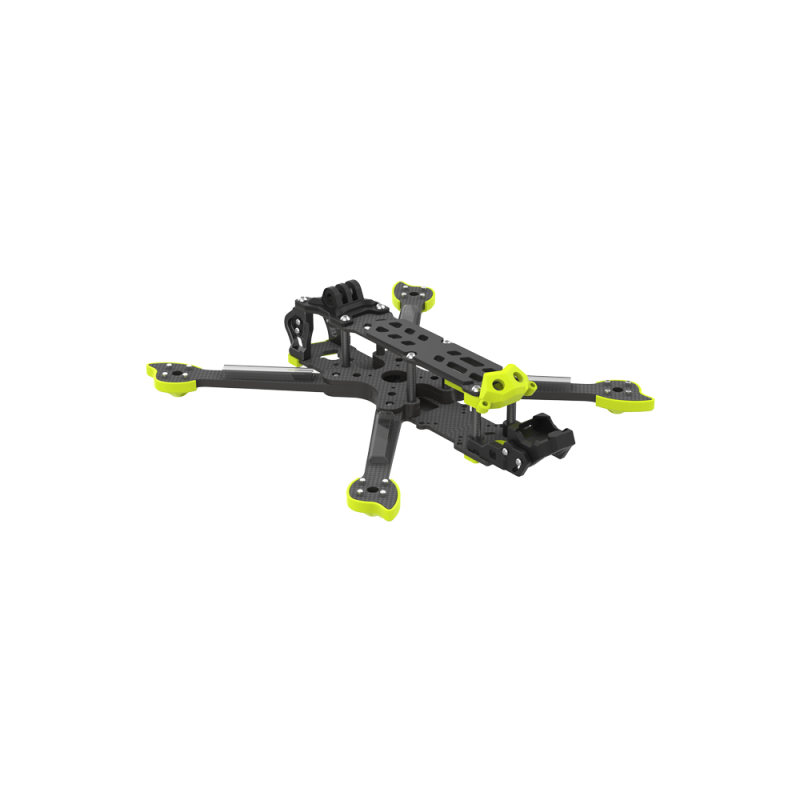

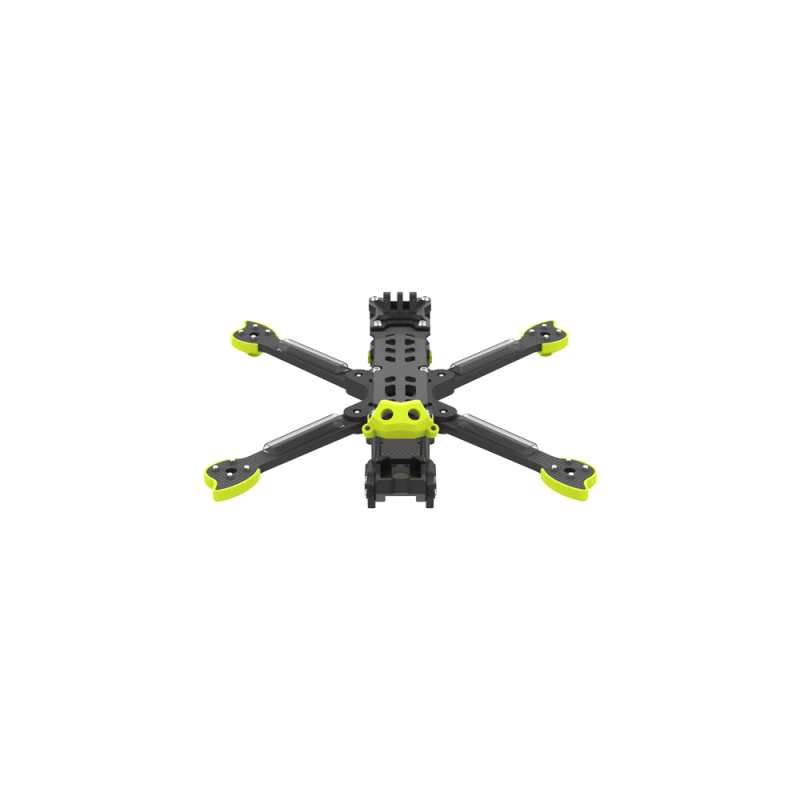

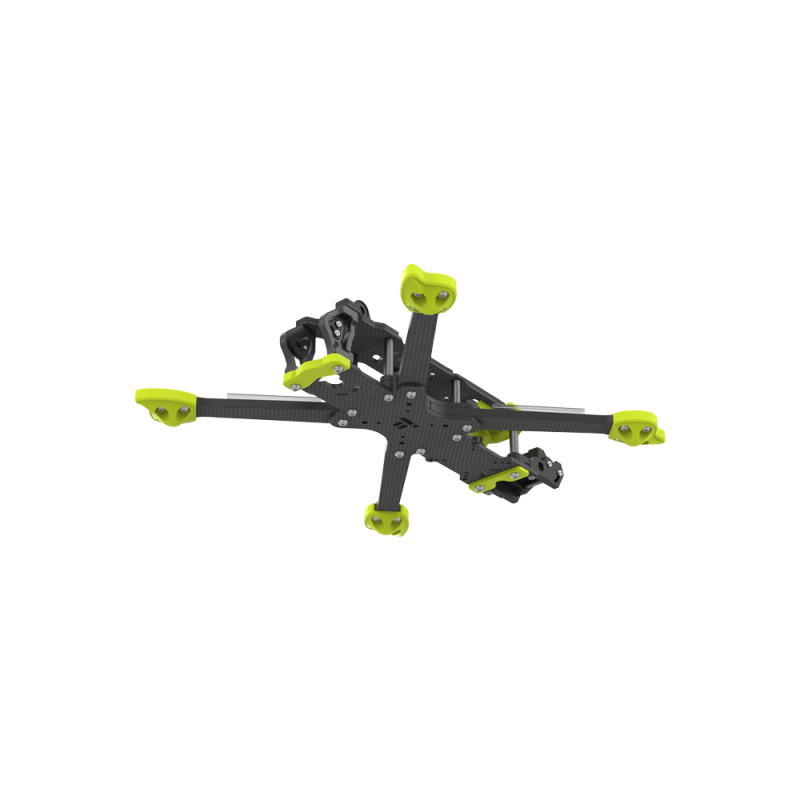

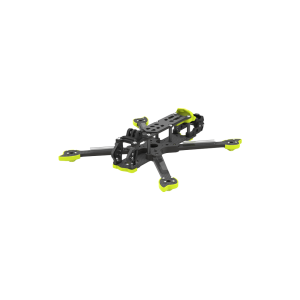

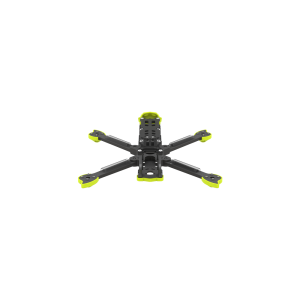

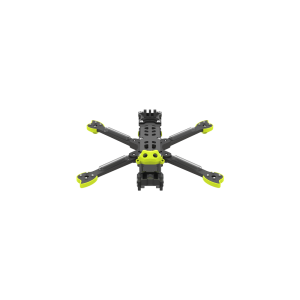

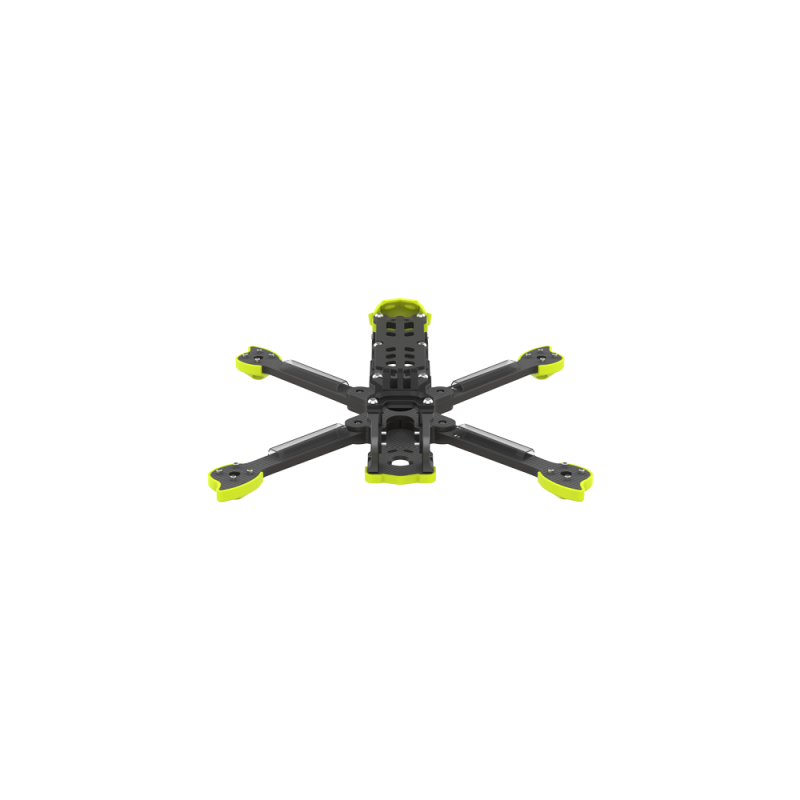

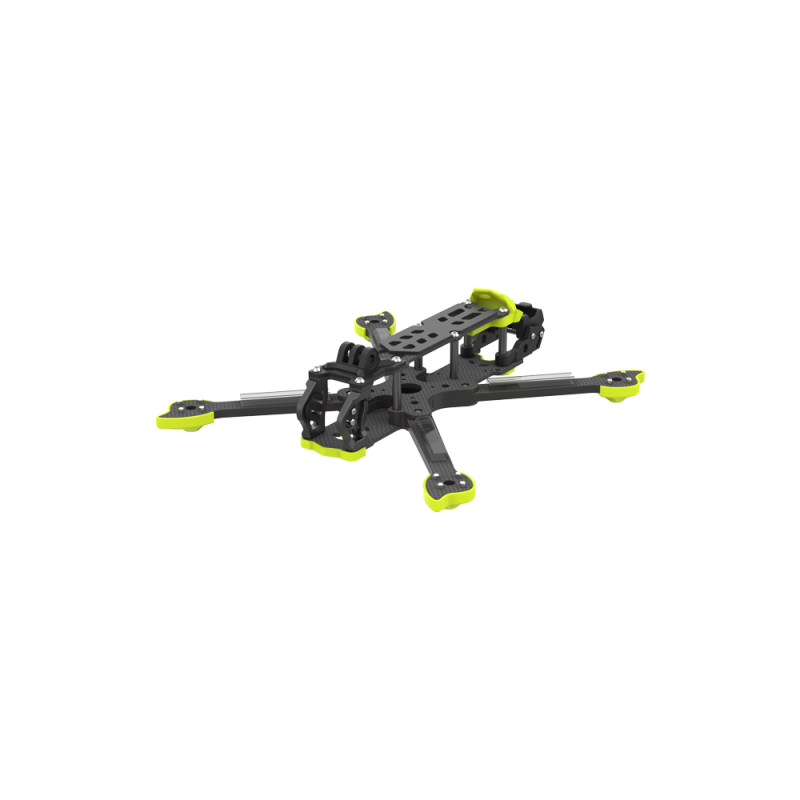

Nazgul5 V3 Frame Kit
৳9600
The iFlight Nazgul5 V3 Frame Kit is a 5" freestyle frame designed for durability and performance. Crafted from super-stiff carbon fiber, it minimizes resonance and enhances flight stability. The frame features a True-X configuration, providing balanced aerodynamics for agile maneuvers. With a 245mm wheelbase, it supports 5" and 5.1" propellers, accommodating a wide range of motor setups. The frame is compatible with the DJI O3 HD System, offering high-definition video transmission for immersive FPV experiences. Additional features include an LED illuminated logo, TPU crash guards, and easy-swap arms, ensuring both aesthetics and practicality.
| Feature | Details |
|---|---|
| Frame Type | Freestyle (5") |
| Material | Super-Stiff Carbon Fiber |
| Wheelbase | 245mm |
| Weight | 130g (excluding TPU parts) |
| Arm Thickness | 5mm |
| Top Plate Thickness | 2.5mm |
| Bottom Plate Thickness | 3mm |
| Upper Plate Thickness | 3mm |
| Camera Plate Thickness | 3mm |
| Stack Mounting Holes | 20x20mm, 30.5x30.5mm (M3) |
| Motor Mounting Holes | 16x16mm |
| VTX Mounting Holes | 20x20mm, 25.5x25.5mm, 30.5x30.5mm |
| Max Stack Height | 21mm |
| Max VTX Height | 29mm |
| Recommended Motors | 2207 series |
| Recommended Propellers | 5" or 5.1" style |
| Battery Compatibility | 4S–6S LiPo |
| Camera Compatibility | DJI O3 HD System |
| Configuration | True-X |
| Additional Features | LED illuminated logo, TPU crash guards, easy-swap arms |
