MicoAir743-AIO-35A
৳8400

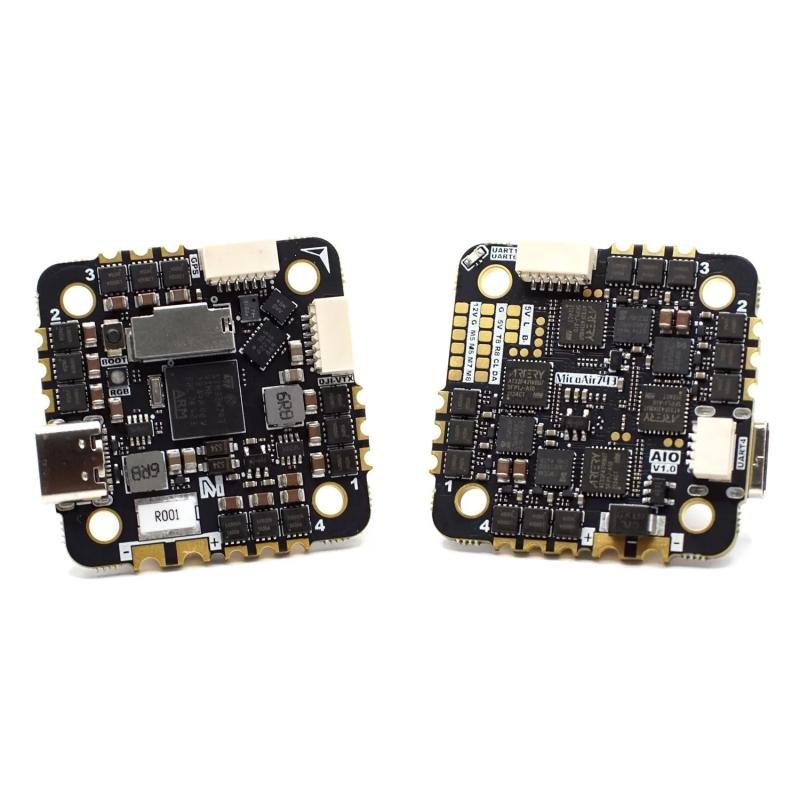

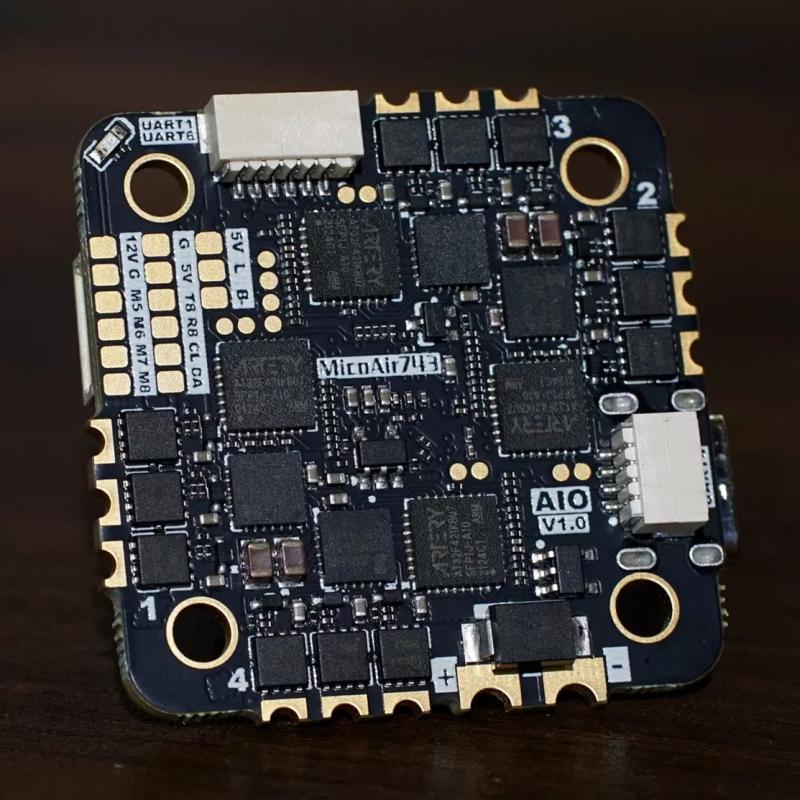

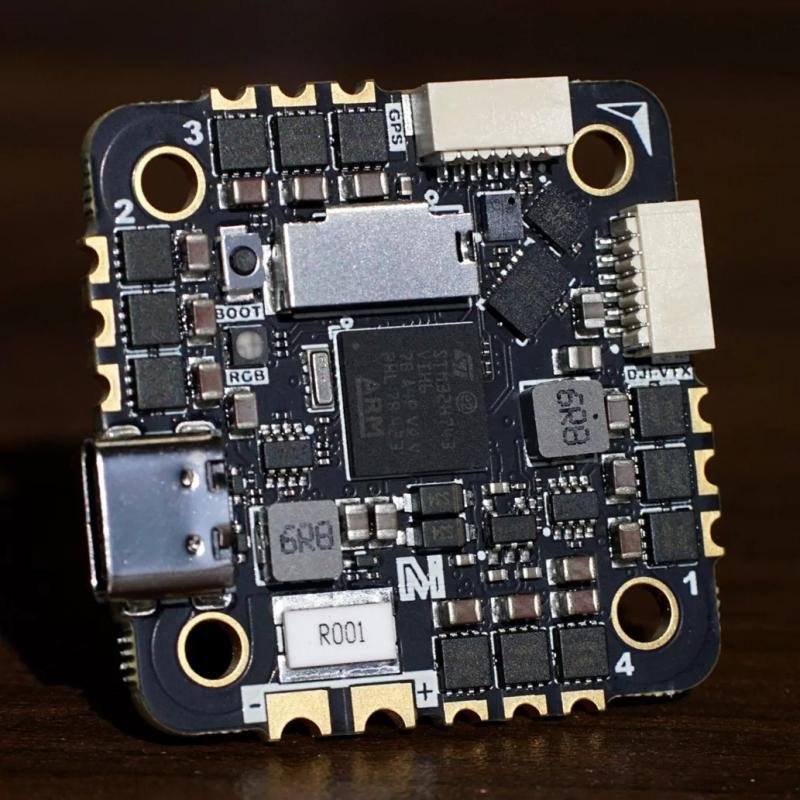

The MicoAir743 AIO 35A is a high-performance flight controller and ESC combo designed for drone enthusiasts seeking advanced features and reliability. Built around the powerful STM32H743VIH6 microcontroller, this unit offers seamless integration of flight control and power distribution, making it ideal for both racing and freestyle drones.
| Feature | Details |
|---|---|
| MCU | STM32H743VIH6 (480 MHz, 2MB Flash) |
| Firmware Support | Ardupilot, PX4, Betaflight, INAV |
| ESC | 4-in-1 AM32 ESC (35A continuous current) |
| Input Voltage | 3–6S LiPo (8.5–27V) |
| BEC Outputs | 5V @ 2A, 12V @ 2A |
| Gyroscope | BMI088 + BMI270 (dual IMUs) |
| Barometer | DPS310 |
| OSD | Integrated Digital OSD |
| Blackbox | MicroSD card logging |
| UART Ports | 7 (supports DShot, bi-directional DShot on channels 1–8) |
| PWM Outputs | 8 (4 for motors, 4 for peripherals) |
| I2C & SWD Ports | Yes (for external sensors and debugging) |
| Mounting Holes | 25.5×25.5 mm (M2) |
| Dimensions | 36×36×8 mm |
| Weight | 10g |
| Temperature Range | -40°C to 80°C |
