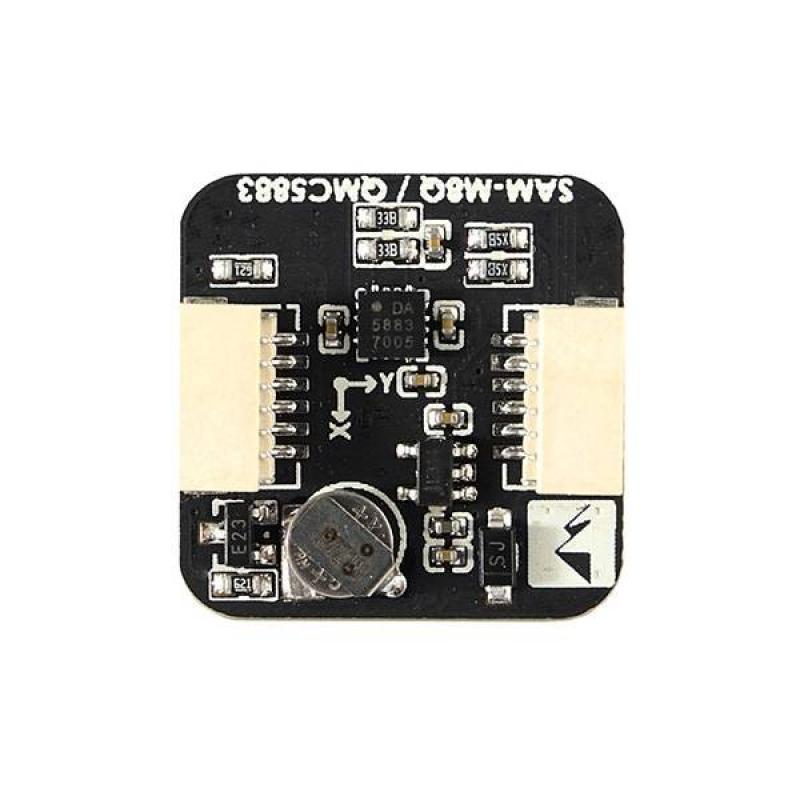

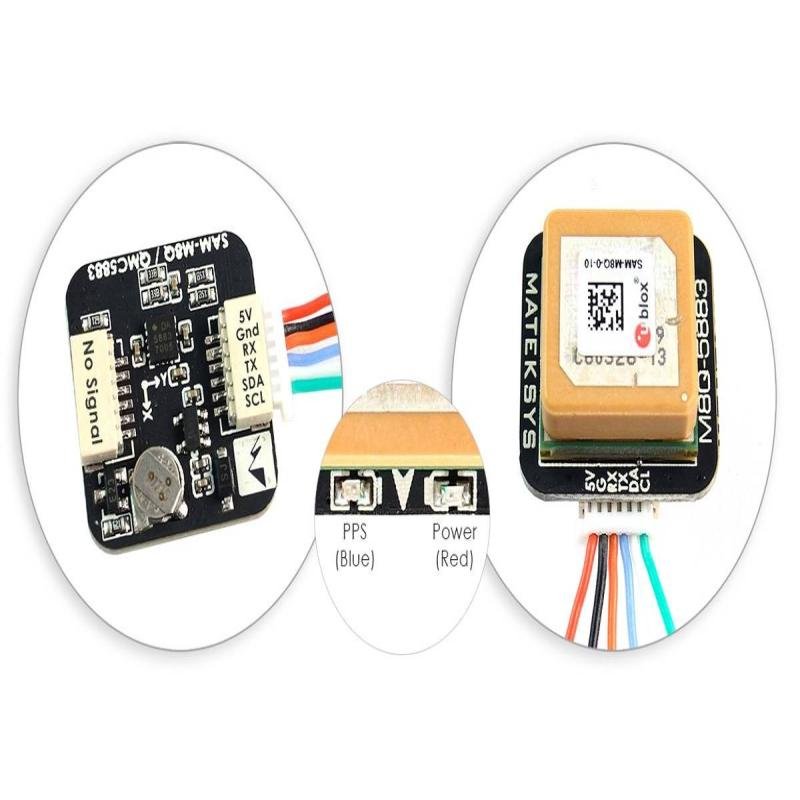

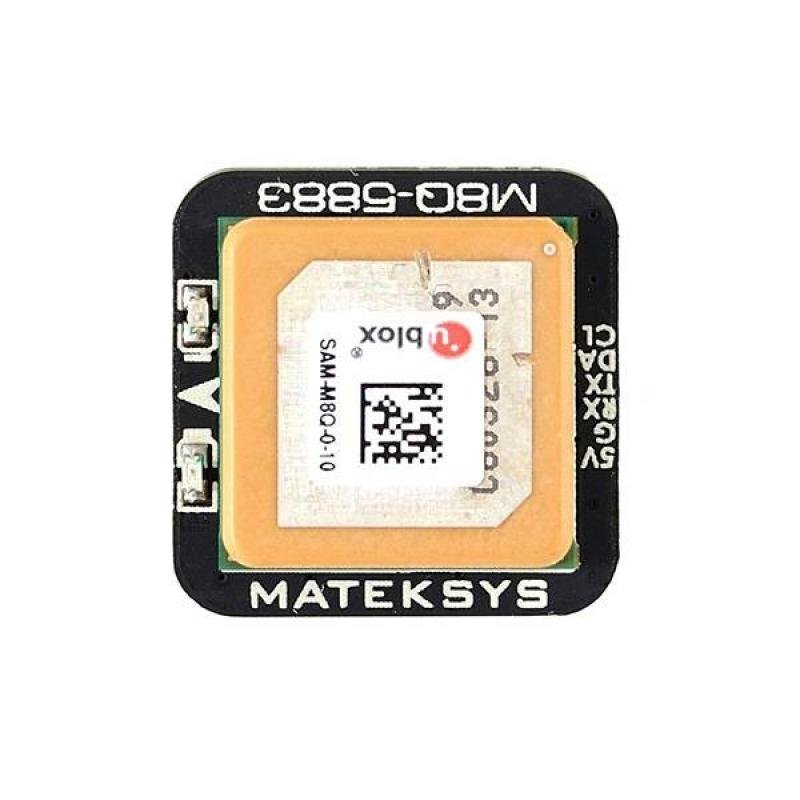

MATEKSYS M8Q-5883 GPS Module
৳3,600 ৳5,040
The MATEKSYS M8Q-5883 GPS Module is a high-performance navigation solution designed for drone enthusiasts and professionals seeking precise positioning capabilities. Leveraging the advanced u-blox SAM-M8Q chipset, this module offers enhanced accuracy and reliability for various UAV applications.
| Feature | Specification |
|---|---|
| GNSS Receiver | u-blox SAM-M8Q |
| Supported Satellite Systems | GPS L1C/A, GLONASS L1OF, Galileo E1B/C, QZSS L1C/A, SBAS L1C/A |
| Compass | QMC5883L |
| Antenna | Embedded GNSS patch antenna (15×15 mm) |
| Baud Rate | 9600bps |
| Protocols | NMEA 0183 |
| Navigation Update Rate | Up to 18 Hz (single GNSS), up to 10 Hz (dual GNSS) |
| Horizontal Position Accuracy | 2.5 m CEP |
| Velocity Accuracy | 0.05 m/s |
| Cold Start Time | 26 seconds |
| Aided Cold Start Time | 2 seconds |
| Hot Start Time | 1 second |
| Sensitivity | Tracking & Navigation: –165 dBm; Reacquisition: –158 dBm; Cold Start: –146 dBm; Hot Start: –155 dBm |
| Input Voltage | 4~6V |
| Power Consumption | 40 mA |
| Interfaces | UART (Tx/Rx) for GPS; I²C (DA/CL) for Compass |
| Operating Temperature | –40°C to +85°C |
| Dimensions | 20×20×10 mm |
| Weight | 7 grams |
