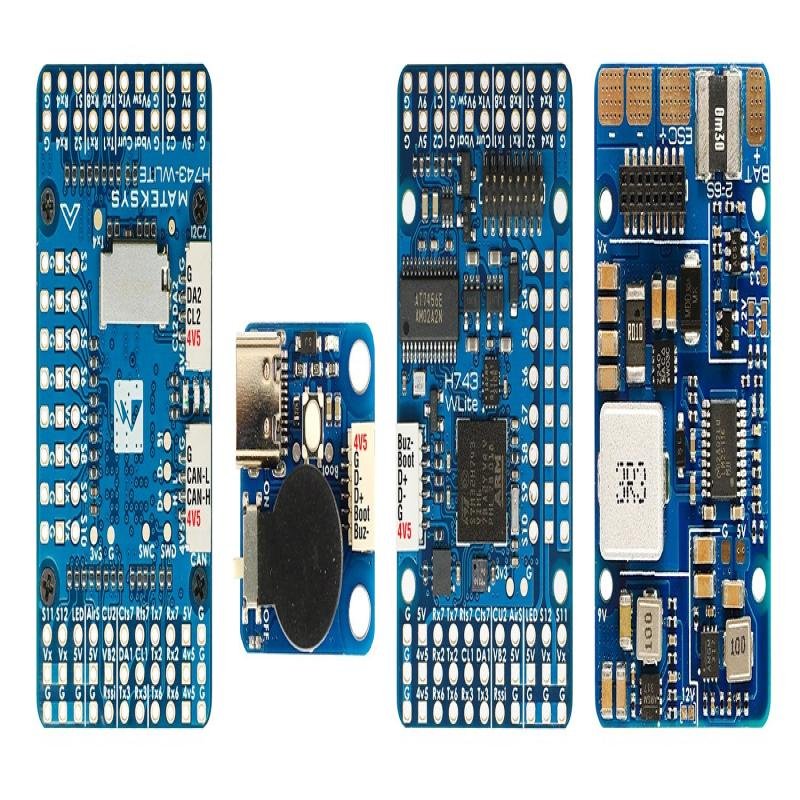

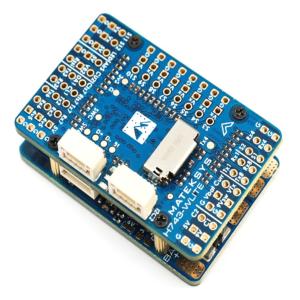

Matek H743-WLITE 2~6S Lipo Barometer DPS310 Flight Controller
৳14400
The Matek H743-WLITE Flight Controller is a high-performance flight controller designed for fixed-wing drones. It features the powerful STM32H743VIH6 microcontroller, providing robust processing capabilities for demanding flight tasks. Equipped with advanced sensors like the ICM42688-P IMU and DPS310 barometer, this flight controller ensures precise flight control and stability. Its extensive connectivity options, including multiple UARTs, I2C ports, and PWM outputs, make it versatile for various applications.
| Feature | Details |
|---|---|
| MCU | STM32H743VIH6 (480MHz, 512KB RAM, 2MB Flash) |
| IMU | ICM42688-P |
| Barometer | DPS310 (I2C2) |
| OSD Chip | AT7456E |
| Blackbox Storage | MicroSD card slot (SDIO) |
| UART Ports | 7 (UART1, UART2, UART3, UART4, UART6, UART7, UART8) with built-in inversion |
| PWM Outputs | 13 (12 + LED) |
| ADC Channels | 6 (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2) |
| I2C Ports | 2 |
| CAN Port | 1 |
| USB Port | USB Type-C (USB2.0) |
| BEC Outputs | 5V (2A continuous, 3A max), 9V/12V (2A continuous, 3A max) |
| Current Sensor | 220A range, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot) |
| Voltage Divider | 1K:20K for VBAT, 20K:20K for AirSpeed |
| Dual Camera Inputs | Yes (switchable) |
| Flight Firmware Support | INAV: MATEKH743, ArduPilot: MATEKH743 |
