Magnetic Door Switch Set
৳525
The Magnetic Door Switch Set is a smart solution for enhancing security in homes, offices, and shops across Bangladesh. It works by detecting when a door is opened or closed, sending signals to alarms or access control systems. Built with durable magnetic sensors, this set ensures accurate performance and long-lasting reliability. Easy to install and compatible with most security systems, it’s widely used in CCTV setups, burglar alarms, and smart home automation. A simple yet powerful way to keep your premises safe.

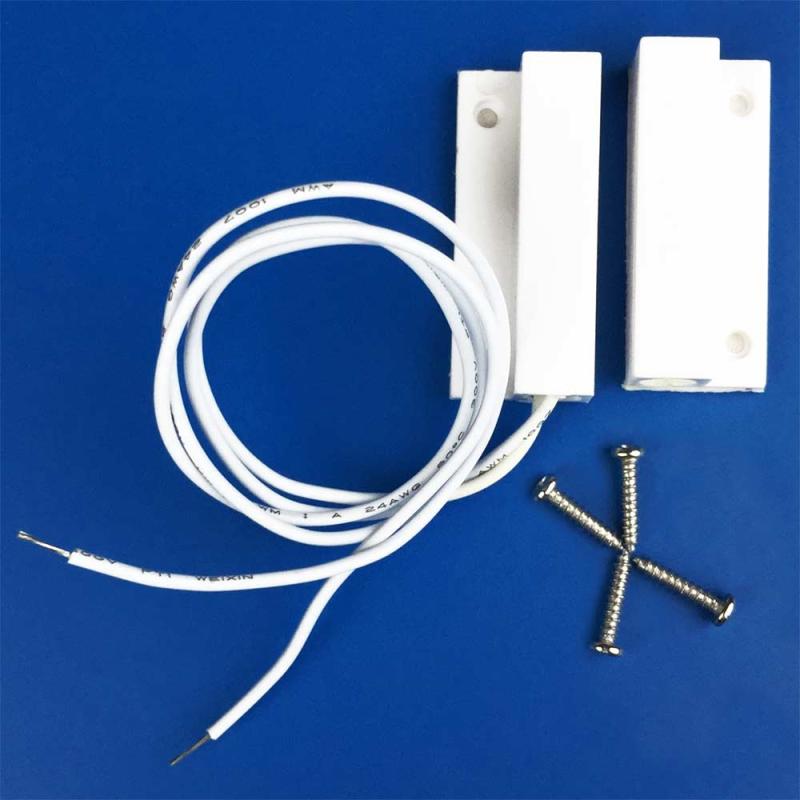

The Magnetic Door Switch Set is a compact reed switch assembly designed to detect when doors, drawers, or other openings are accessed, making it ideal for home security systems. One piece mounts to the frame and the other to the door or window; when separated, the circuit breaks and triggers an alarm.
When the two pieces are within 20mm, the internal reed switch closes the circuit. Each set supports up to 100V at 500mA, is housed in durable ABS plastic, and comes with mounting screws for easy installation on most surfaces.
Dimensions: 34 × 41 × 6.5 mm
Includes:
- 1x Magnetic Door Switch Set
- 4x Phillips Mounting Screw
Specification of Magnetic Door Switch Set
- Max Voltage: ≤100VDC
- Max Current: ≤500mA
- Max Rating: ≤10W
- Gap: 20±5mm
- Contact Mode: NO
Documentation of Magnetic Door Switch Set
