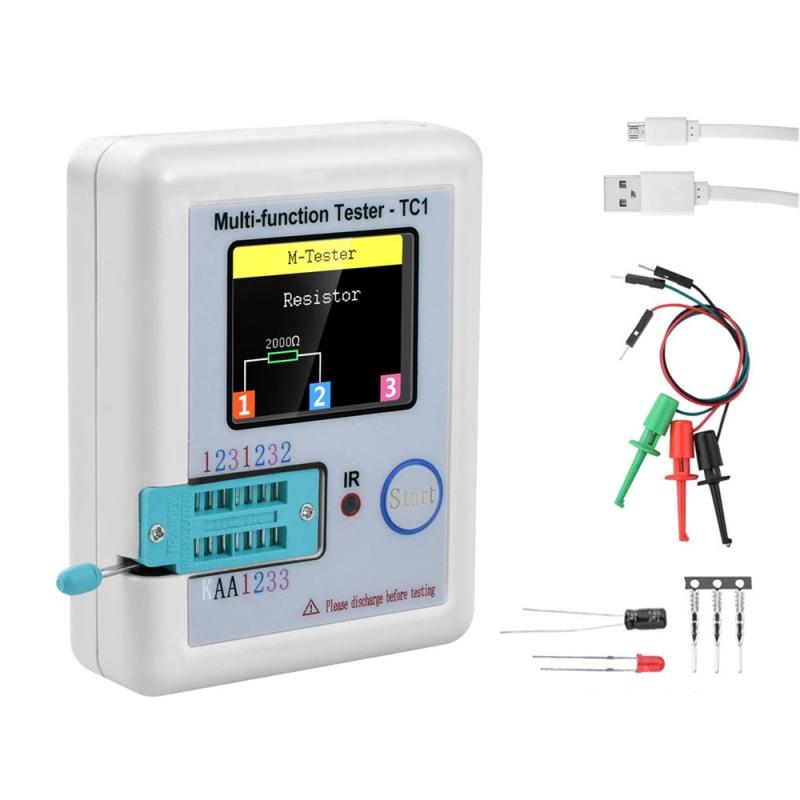

LCR-TC1 1.8" Multi-functional Transistor Mosfet Diode Component Tester LCR Meter IR Decoder
৳2,630
The LCR-TC1 is a compact, all-in-one tester, ideal for electronics hobbyists, repair technicians, or anyone working with discrete components. It detects and measures a broad range of semiconductor and passive components—transistors (BJT, MOSFET, etc.), diodes, thyristors, inductors, capacitors, resistors—plus batteries.
| Feature | Specification / Range |
|---|---|
| Model | LCR-TC1 1.8″ Multi-functional Component Tester |
| Functions | LCR meter, transistor/MOSFET tester, diode tester, IR remote decoder, battery voltage detector |
| Resistance Range | 0.01 Ω to 50 MΩ |
| Capacitance Range | 25 pF to 100 mF |
| Inductance Range | 0.01 mH to 20 H |
| Diode Test | Forward voltage up to ~4.5 V |
| Zener Diode Test | Up to ~30 V |
| Transistor Test | NPN/PNP BJTs, MOSFETs, IGBTs, JFETs |
| Thyristor/Triac Test | Detectable if gate trigger current < 6 mA |
| Display | 1.8″ TFT color screen (backlit) |
| Size | ~69 × 91 × 28 mm |
| Power Supply | Built-in rechargeable lithium battery, with auto power-off |
| Other Features | • Automatic component recognition• IR remote signal decoding & waveform display• Self-test and self-calibration• Auto shutdown for power saving |
