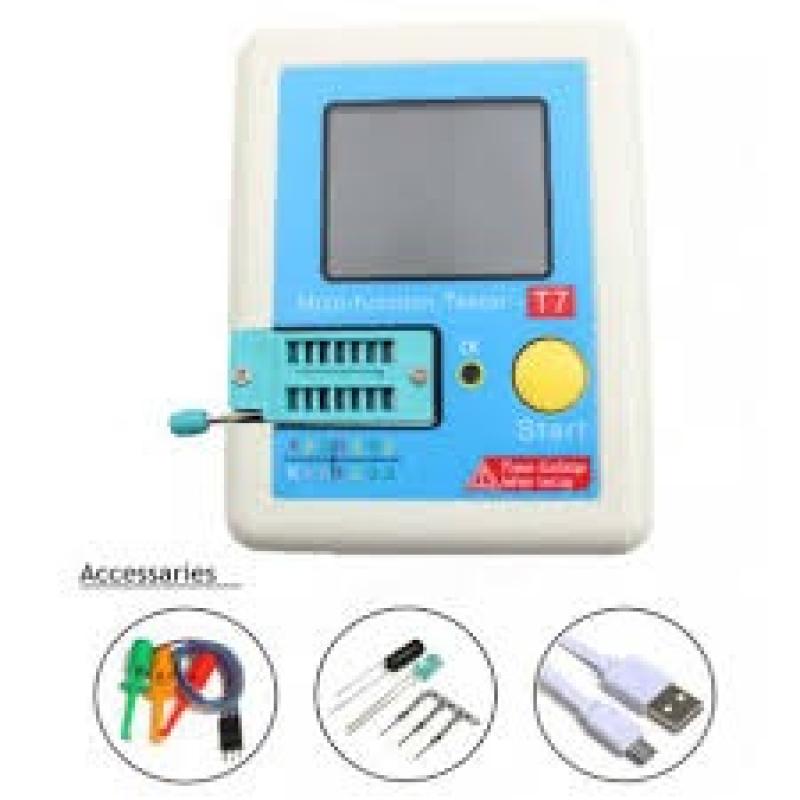

LCR-T7 Multi-functional Transistor MOSFET Diode Component Tester LCR Meter IR Decoder
৳2,740
The LCR-T7 is a compact tester meant for electronics hobbyists, repair techs, and anyone who works with discrete components. It automatically identifies a broad range of components (resistors, capacitors, inductors, transistors, etc.), measures their key parameters, and even decodes IR remote signals.
| Feature | Detail |
|---|---|
| Model | LCR-T7 Multi-Functional Tester |
| Components Recognized / Measurable | Resistors, Capacitors, Inductors; Diodes (including dual/zener types); Thyristors, Triacs; Field-Effect Transistors (FET/MOSFET, N & P types), Bipolar Transistors; Batteries; Infrared (IR) remote signals |
| Measurement Ranges | Resistance: ~0.01 Ω to 50 MΩ Capacitance: ~25 pF to 100 mF Inductance: ~0.01 mH to 20 H |
| Diode / Zener / Battery Test | Diode forward voltage < ~4.5 V Zener breakdown up to ~30 V Zener forward or small diode forward ~0.01-4.5 V Battery voltage detection ~0.1-4.5 V |
| Thyristor / Triac | Gate trigger current I_GT < ~6 mA |
| Display | ~1.8-inch TFT LCD, resolution ~160×128 pixels |
| Battery | Lithium-ion, ~3.7 V, 300-350 mAh |
| Power / Charging | Charges via micro-USB (standard 5 V USB supply) |

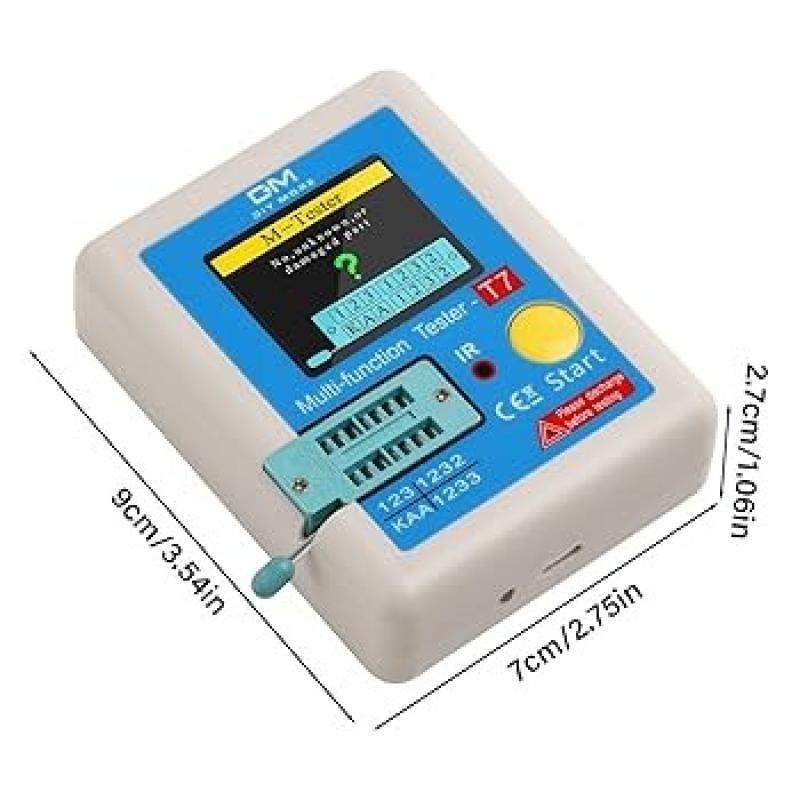

| Size / Dimensions | ~90 × 70 × 27 mm |
| Special Features | Automatic component recognition; auto calibration; one-button / single-key start; IR remote decoding (waveform + code display); automatic shutdown to save battery |
