ImmersionRC Ghost with 3 Receivers Combo
৳22,800

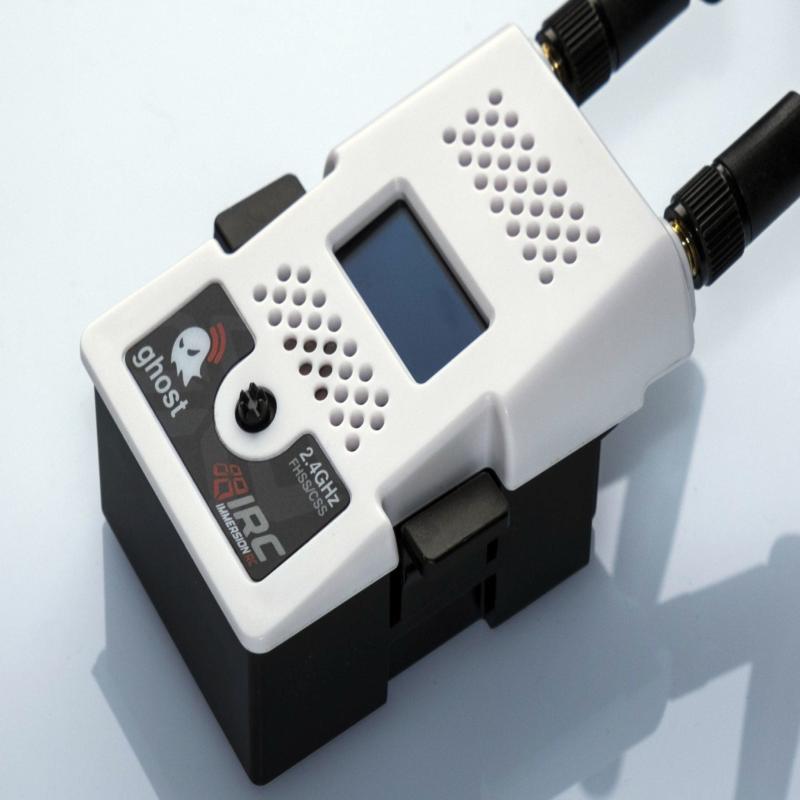

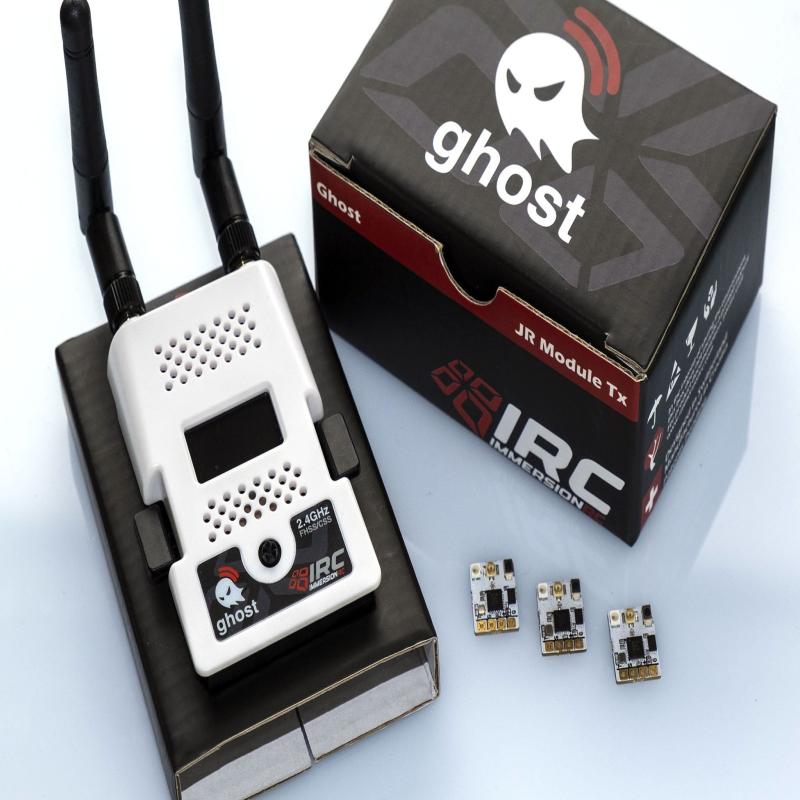

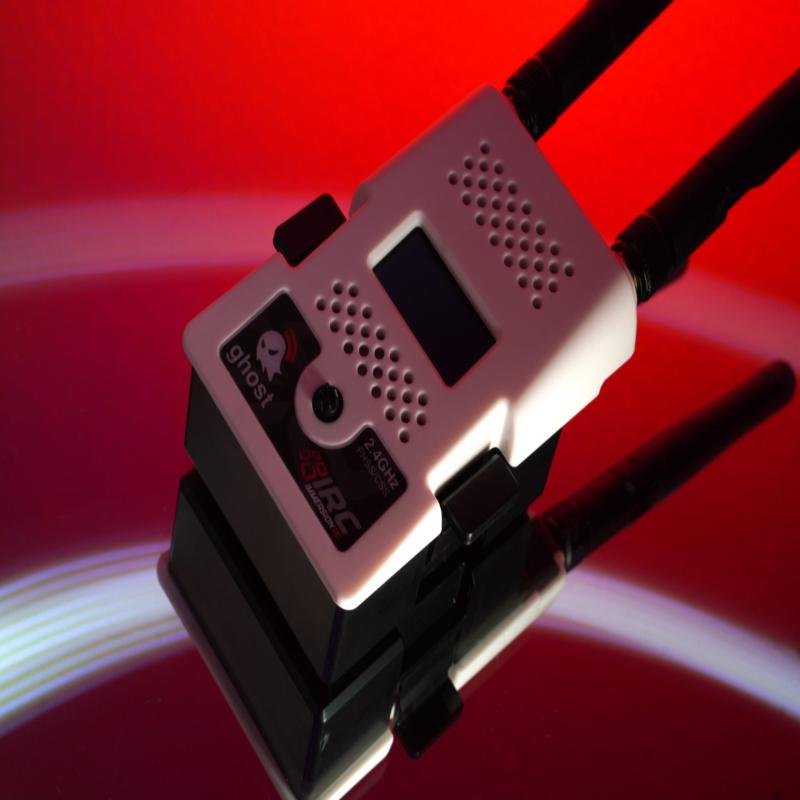

The ImmersionRC Ghost with 3 Receivers Combo is a comprehensive 2.4GHz radio control system designed for FPV enthusiasts seeking long-range capabilities and low-latency performance. This bundle includes a Ghost JR module and three Atto receivers, providing everything needed for reliable control across various drone builds.
| Feature | Details |
|---|---|
| Frequency | 2.4GHz ISM Band |
| Modulation | Chirp Spread Spectrum + Adaptive FHSS |
| Binding | Bidirectional, with confirmation and protocol negotiation |
| Uplink RF Power | 16uW – 350mW (+/- 0.5dB) |
| Frame Rate | 222.22Hz (Pure Race), 166Hz (Race), 62Hz (Normal), 15Hz (Long Range) |
| Format | Standard JR Module, compatible with FrSky Taranis, RadioMaster radios |
| Antennas | Twin 2.1dBi Dipole Antennas with TX-side diversity |
| Serial Formats | SBus, GHST |
| Firmware | USB Upgradable (with OTA updates for receivers) |
| Power Supply | 6V-20V, 1.75W @ 400mW, ~250mA at 7.4V |
| Receiver Specifications | |
| Receiver Type | Atto Receiver |
| Receiver Dimensions | 14.8 x 11.5mm |
| Receiver Weight | ~0.6g |
| Receiver Sensitivity | -117dBm in Long Range mode |
| Receiver Power Supply | 5V recommended, as low as 3.3V tolerated |
| Receiver Serial Formats | SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted |
| Receiver Firmware | Over-the-air (OTA) upgradable |
| Receiver VTx Control | Tramp control from 'T' pin on Rx, regardless of selected serial format |
