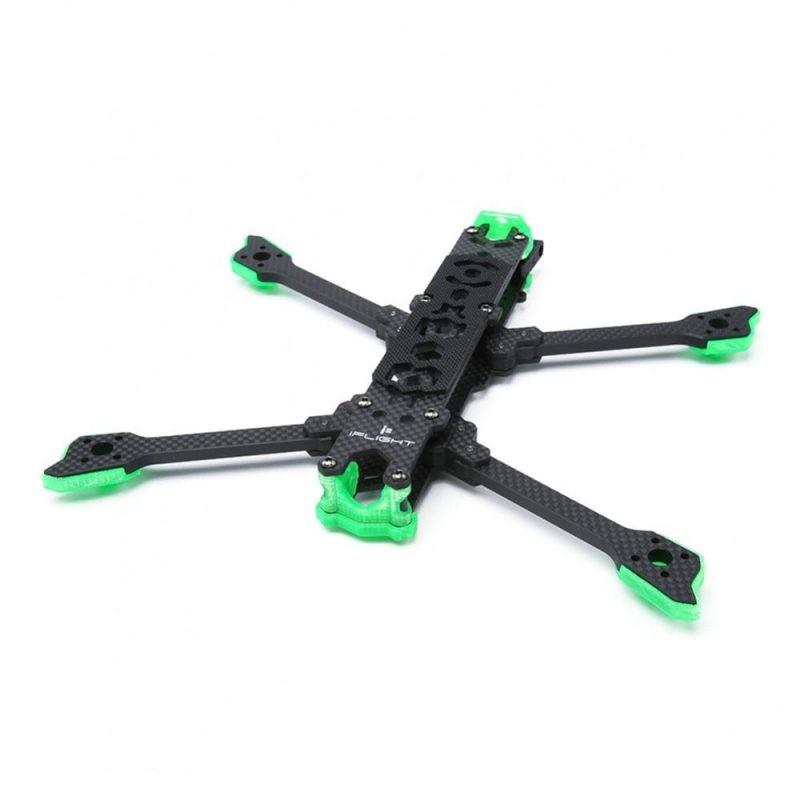

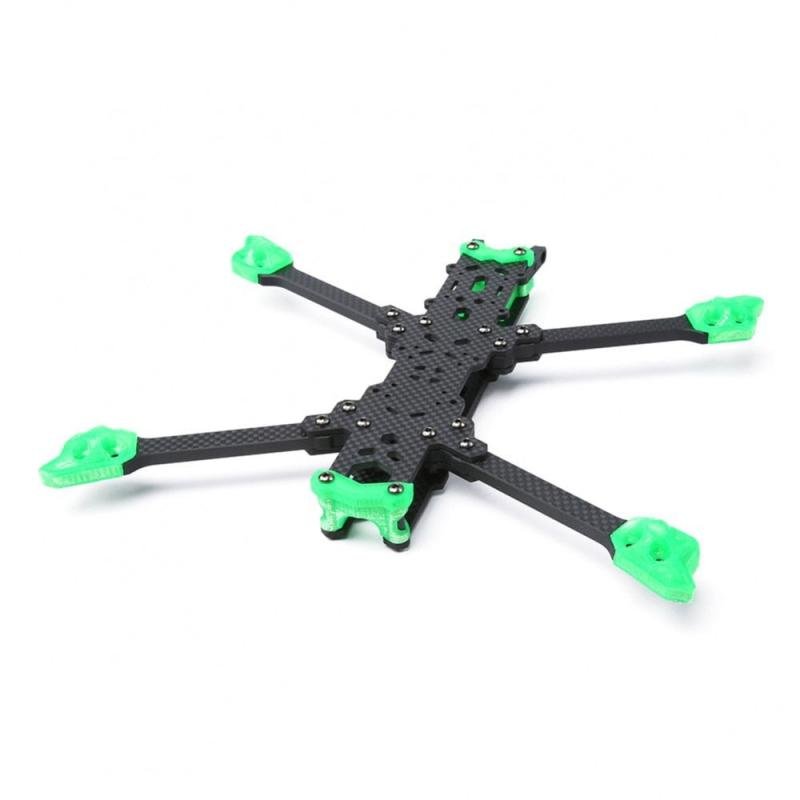

iFlight Titan LH5 5″ Freestyle Frame Kit
৳7,800
The iFlight Titan LH5 5" Freestyle Frame Kit is designed for freestyle flying, offering a "slammed" configuration that provides a low center of gravity (CG), making it easier to wire electronics. This frame is suited for 5" propellers and allows for mounting 20x20mm and 30.5x30.5mm stacks in the front, with a VTX in the rear. The full 3K carbon fiber airframe features chamfered arms, contributing to its durability and performance.
| Feature | Details |
|---|---|
| Frame Type | Freestyle (5") |
| Material | 3K Carbon Fiber |
| Weight | 145.9g (with TPU parts and battery anti-slip pads) |
| Wheelbase | 249mm |
| Frame Configuration | H-style (Prop in View) |
| Arm Thickness | 6mm |
| Bottom Plate Thickness | 3mm |
| Top Plate Thickness | 3mm |
| Upper Plate Thickness | 3mm |
| Mounting Holes | 30.5x30.5mm |
| Camera Size Support | 14x14mm |
| Recommended Motors | 22xx, 23xx |

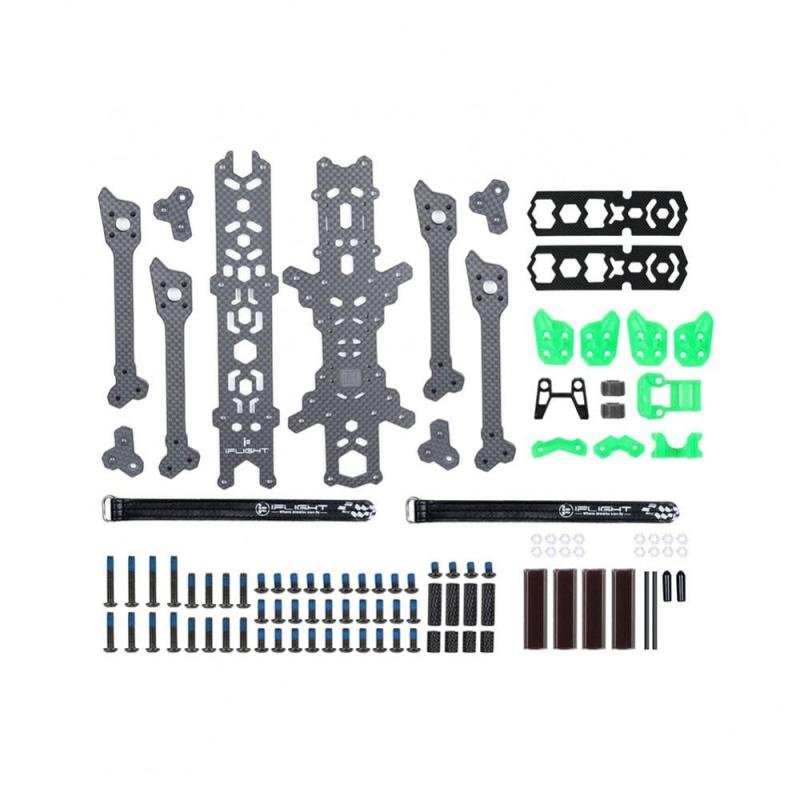

| Included Components | Frame kit with hardware, TPU camera mount adapters, arm guards, motor mounts, protective mounts, battery anti-slip mat, and battery straps |
