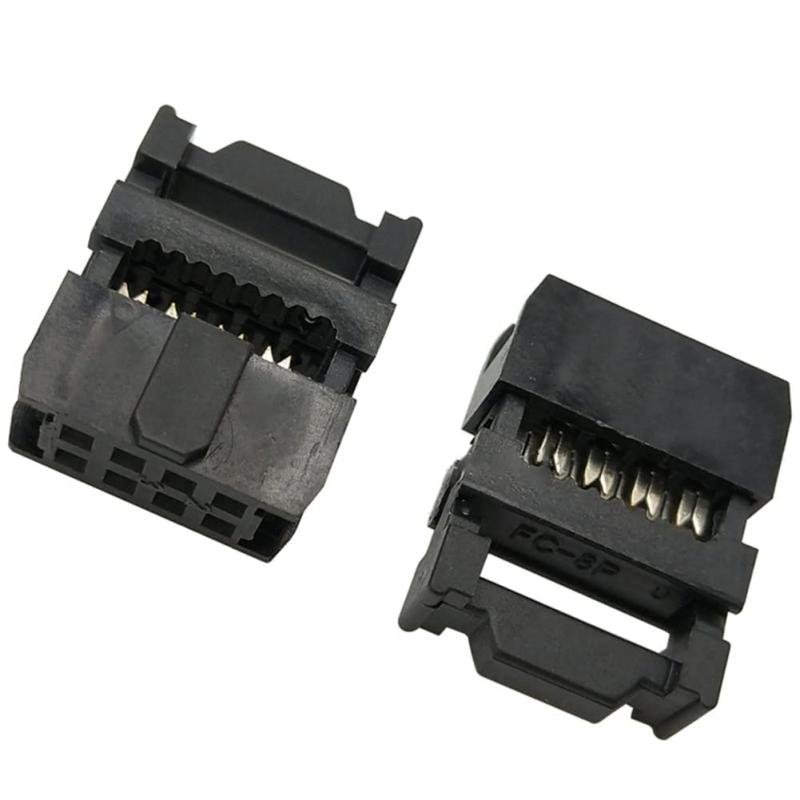

IDC 10 Pin FC-10P Female 2.54mm Pitch Socket ISP JTAG Header Connector
৳66
This is a 10-position (10-pin) IDC FC-10P female socket connector, designed with 2.54 mm (0.1") pitch. It’s commonly used for ISP (In-System Programming) or JTAG interfaces (for microcontrollers, FPGAs, etc.), ribbon cable connections, or any application where a double-row, durable header needs to mate securely with a cable. The female (socket) format lets you plug ribbon cable with matching male IDC plug/connector. It’s compact, reliable, and suited for projects where you want a clean, solid connection with relatively light current and typical PCB mounting.
| Spec | Details |
|---|---|
| Type / Model | FC-10P Female IDC Socket (10-Pin, Double-Row) |
| Pitch (Spacing between pins) | 2.54 mm (0.1") |
| Number of Pins / Positions | 10 (2 rows of 5) |
| Connector Gender | Female (socket) |
| Header / Body Size (L × W × H) | ~ 17 × 6 × 9 mm |
| Color | Black body with (usually) metallic contacts |
| Materials | Plastic insulator (usually PBT or similar), metal contacts (often brass) |
| Current Rating | ~ 3 A |
| Operation Temperature Range | Approx. -40°C to +105°C |
| Contact Resistance | ≤ ~20 mΩ at 100 mA |
| Insulation Resistance | ≥ ~1000 MΩ at ~500 V DC |
| Withstand Voltage | AC ~1000 V |
| Typical Uses | ISP / JTAG headers, ribbon cable sockets, debugging / programming interface on boards |
