ICL8038 High Precision Function Generator Signal Generator DIY Kit (5Hz-400KHz)
৳1100

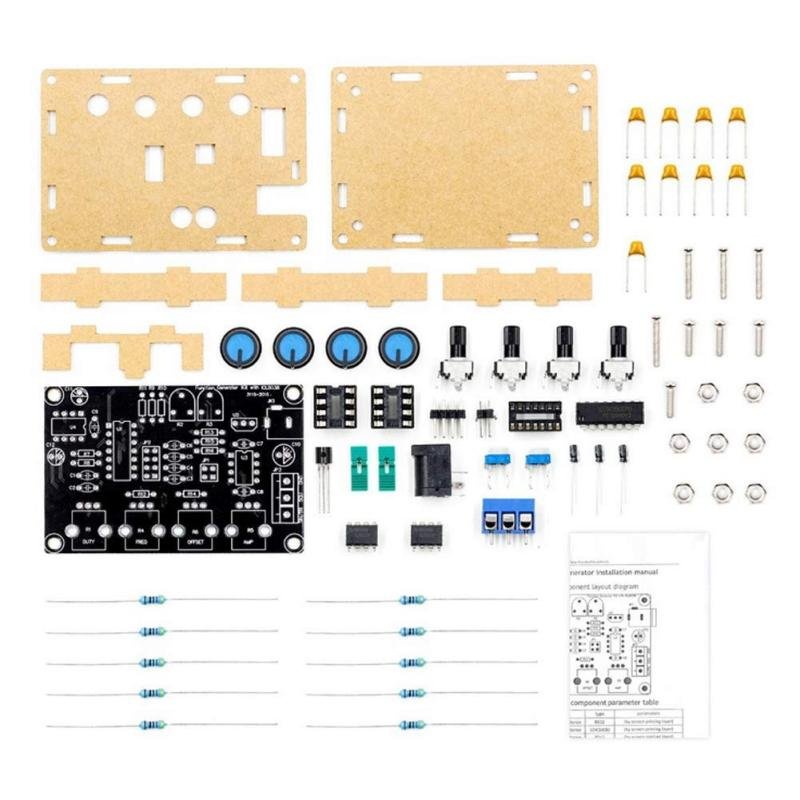

The ICL8038 Signal Generator DIY Kit is a versatile waveform generator based on the ICL8038 precision waveform generator IC. This kit allows users to assemble a device capable of producing sine, square, triangle, and sawtooth waves with adjustable frequencies ranging from 5Hz to 400kHz. It's an excellent project for electronics enthusiasts, students, and hobbyists interested in waveform generation and signal processing.
Specifications
Waveforms Generated: Sine, Square, Triangle, Sawtooth (positive and negative)
Frequency Range: 5Hz to 400kHz
Duty Cycle: Adjustable from 2% to 95%
Amplitude Output: 0.1V to 11V peak-to-peak (at 12V supply voltage)
DC Bias Range: ±7.5V
Distortion: Low distortion true sine wave output with less than 1% distortion
Temperature Stability: Low temperature drift of 50ppm/°C
Power Supply: 12V to 15V DC
Board Dimensions: Approximately 7.8 x 5 cm

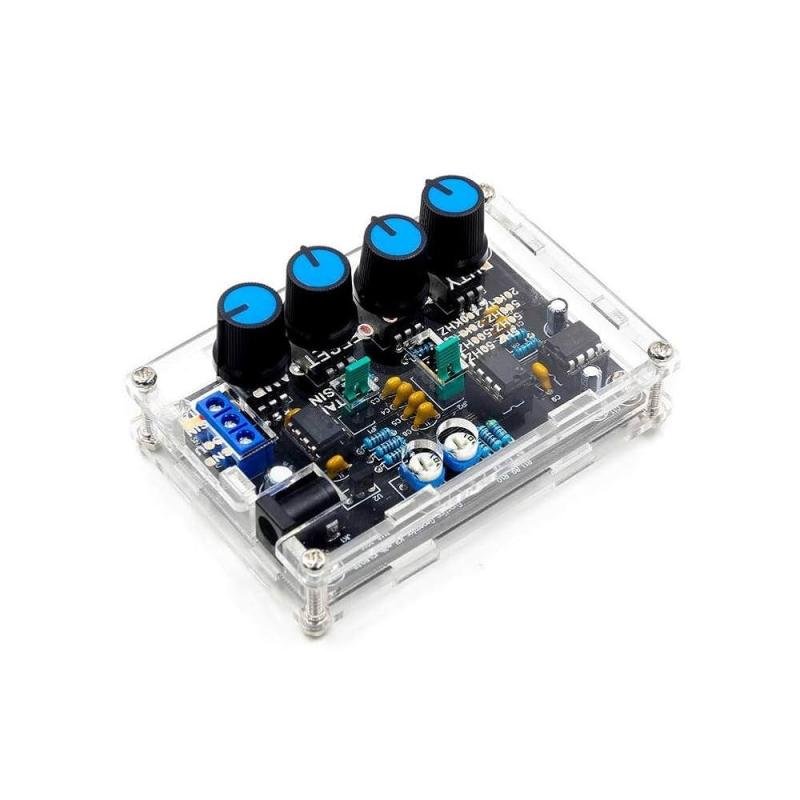

Enclosure: Comes with an acrylic casing for protection and durability
