I2C LCD Display 16x2
৳295
The 16x2 I2C LCD Display provides two lines of clear alphanumeric output while using only two data pins, freeing up I/O for other modules. Its built-in I2C interface makes wiring simple and neat, and it works seamlessly with Arduino, Raspberry Pi, and other microcontrollers. Perfect for projects in Bangladesh that require reliable, space-saving display solutions.

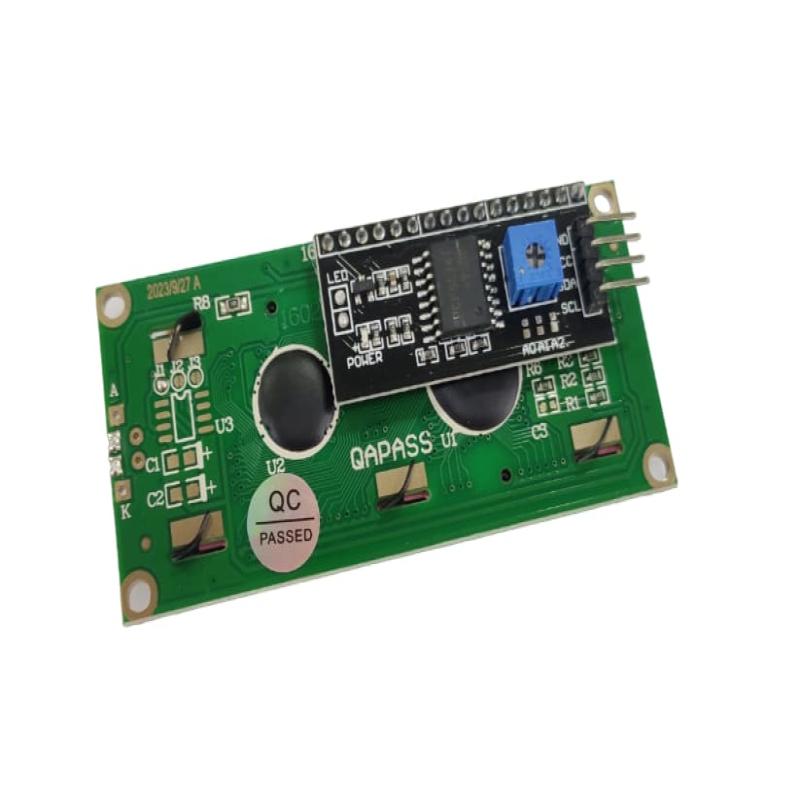

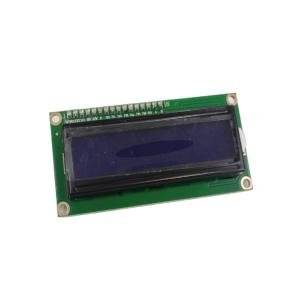

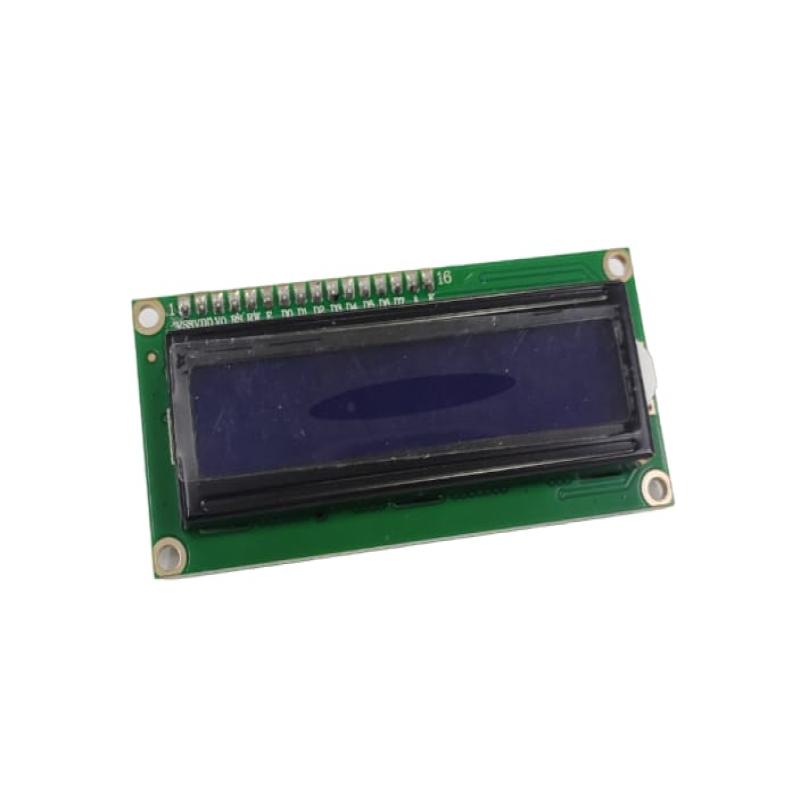

This is a 16x2 LCD display screen with I2C interface. It is able to display 16x2 characters on 2 lines, white characters on blue background.
Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 Arduino LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will save at least 4 digital/analog pins on Arduino. All connectors are standard XH2.54 (Breadboard type). You can connect with the jumper wire directly.
To avoid the confliction of I2C address with other I2C devices, such ultrasonic sensor, IMU, accelerometers, and gyroscope, the I2C address of the module is configurable from 0x20-0x27. And its contrast can be adjusted manually.
Another alternative option is I2C 20x4 Arduino LCD Display Module if more characters are required.
Last update: V1.2:
- I2C connector: GND, VCC, SDA, SCL
- Compatible with Arduino/Genuino UNO, Leonardo, Mega, 101 (Intel Curie), Micro, Nano, Mini
- I2C Address:0x20-0x27(0x20 default)
- Back lit (Blue with white char color)
- Supply voltage: 5V
- Interface:I2C/TWI x1,Gadgeteer interface x2
- Adjustable contrast
- Size: 80x36x20mmz(3.1x1.4x0.7in)
