Herelink 2.4GHz Long Range HD Video Transmission System
৳1,45,945

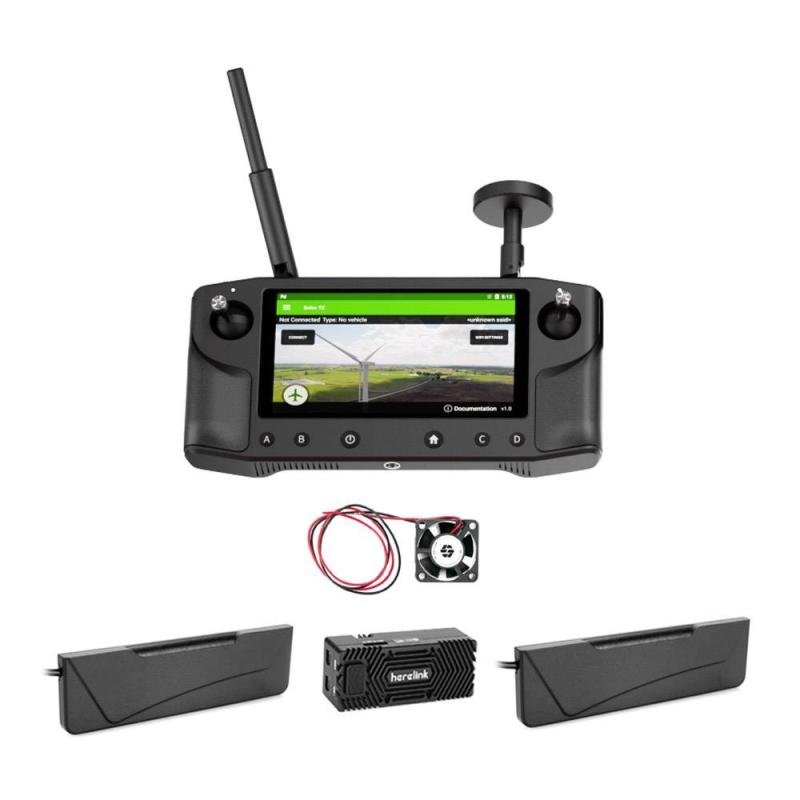

The Herelink 2.4GHz Long Range HD Video Transmission System is an integrated solution combining HD video transmission, data communication, and radio control into a single device. It offers a transmission range of up to 20 km (FCC) or 12 km (CE/SRRC), with a minimum latency of 110 ms. The system supports video resolutions of 720p at 30fps and 1080p at 30/60fps, ensuring high-quality real-time video streaming for drone operations.

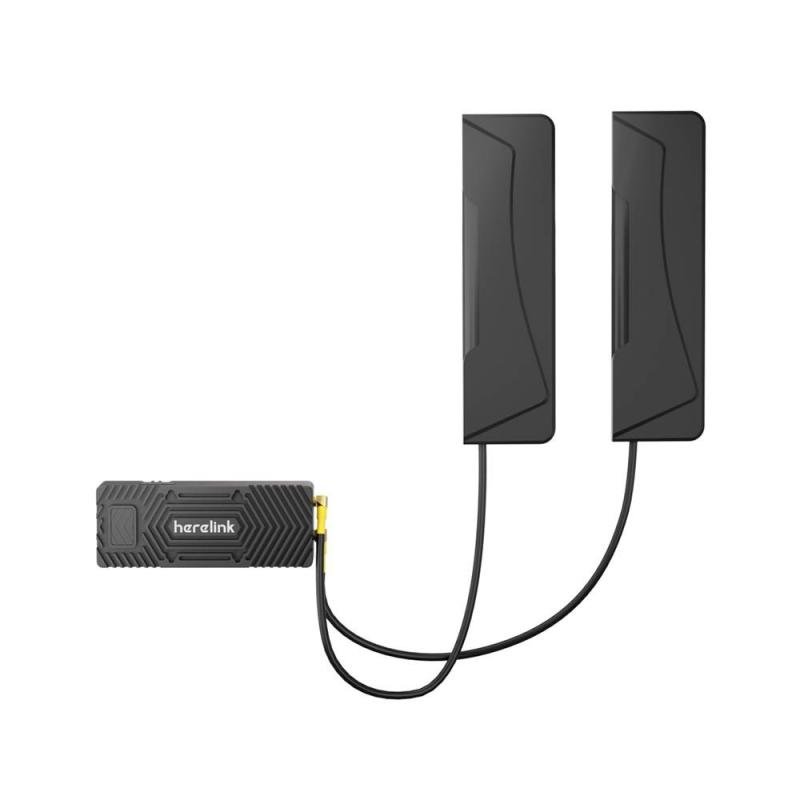

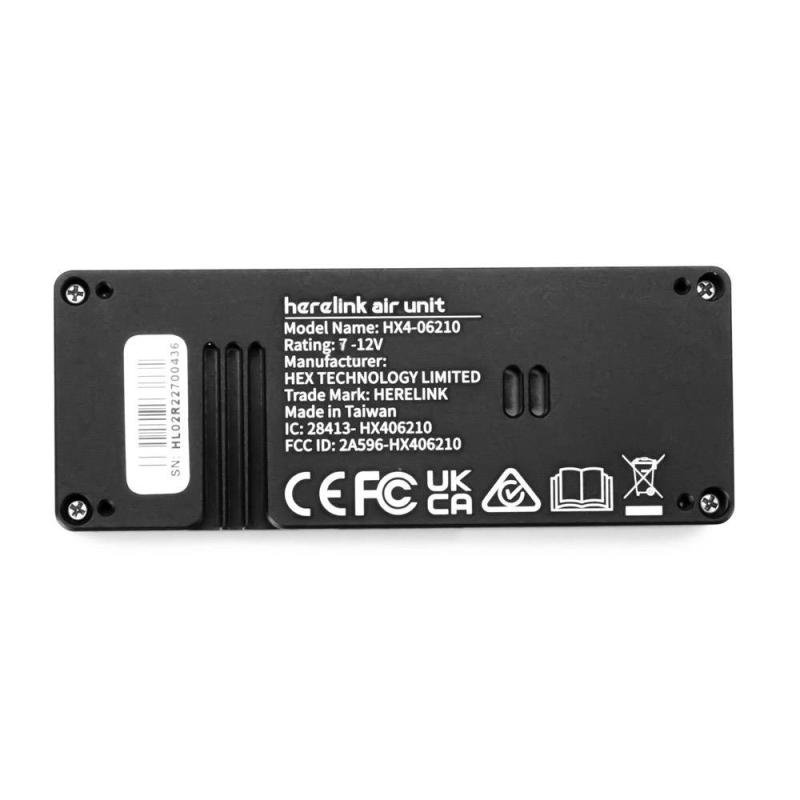

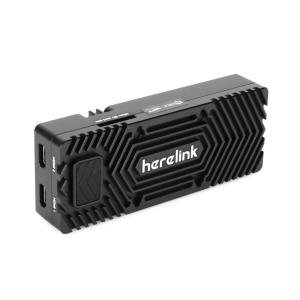

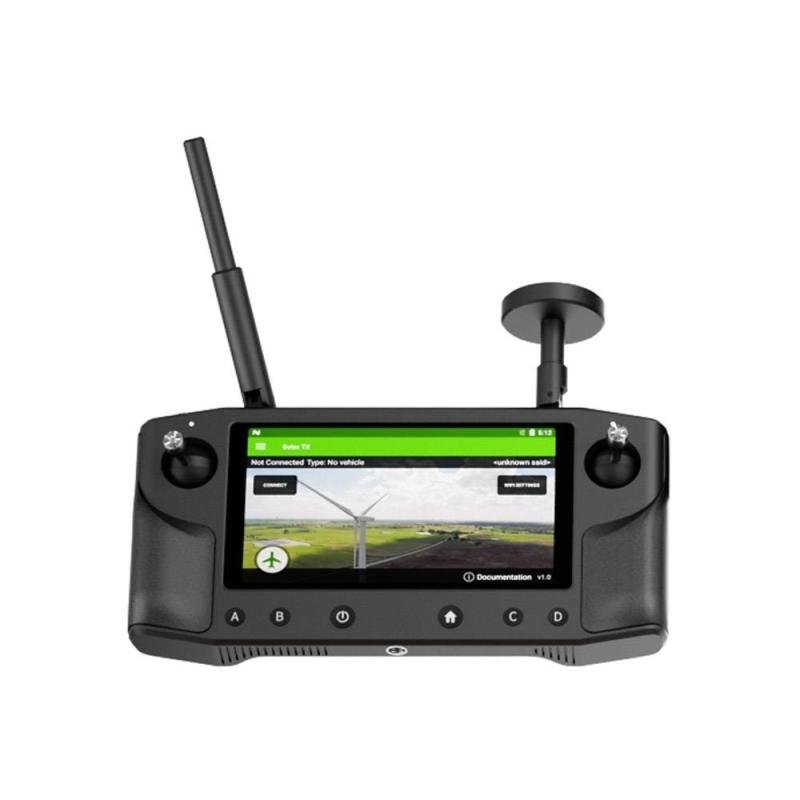

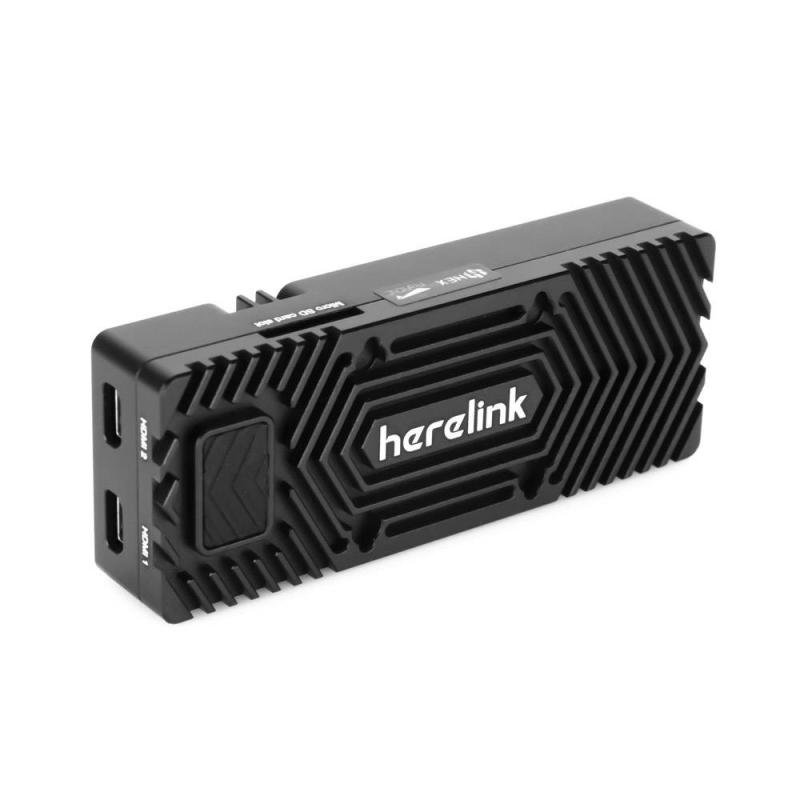

Developed by CubePilot, the Herelink system features a 5.5-inch touchscreen controller and an Air Unit that communicates over the 2.4GHz ISM band. The controller is equipped with a dedicated joystick, customizable buttons, and a touch interface for intuitive operation. The Air Unit connects to the drone's flight controller via UART and provides video output through two HDMI inputs. The system supports both Solex and QGroundControl (QGC) software for mission planning and telemetry.
| Feature | Specification |
|---|---|
| Transmission Range | Up to 20 km (FCC) / 12 km (CE/SRRC) |
| Latency | Minimum 110 ms |
| Video Resolution | 720p @ 30fps, 1080p @ 30/60fps |
| Frequency Band | 2.4GHz ISM |
| Controller Display | 5.5-inch touchscreen |
| Controller Interface | Joystick, customizable buttons, touch interface |
| Air Unit Inputs | Two HDMI inputs |
| Flight Controller Interface | UART (3.3V) |
| Software Compatibility | Solex, QGroundControl (QGC) |
| Processor (Controller) | Quad-core Cortex-A53, 2.2GHz |
| Processor (Air Unit) | Quad-core Cortex-A53, 1.4GHz |
| GPU | Mali-T860 |
| Storage (Controller) | 2GB LPDDR3 RAM, 4GB eMMC |
| Storage (Air Unit) | 1GB LPDDR3 RAM, 4GB eMMC |
| Power Supply (Air Unit) | 7V (minimum 6V, maximum 12V) |
| Power Consumption | Average ≤ 4W |
| Housing | Aluminum alloy |
| Weight (Controller) | 98g |
| Weight (Air Unit) | 98g |
