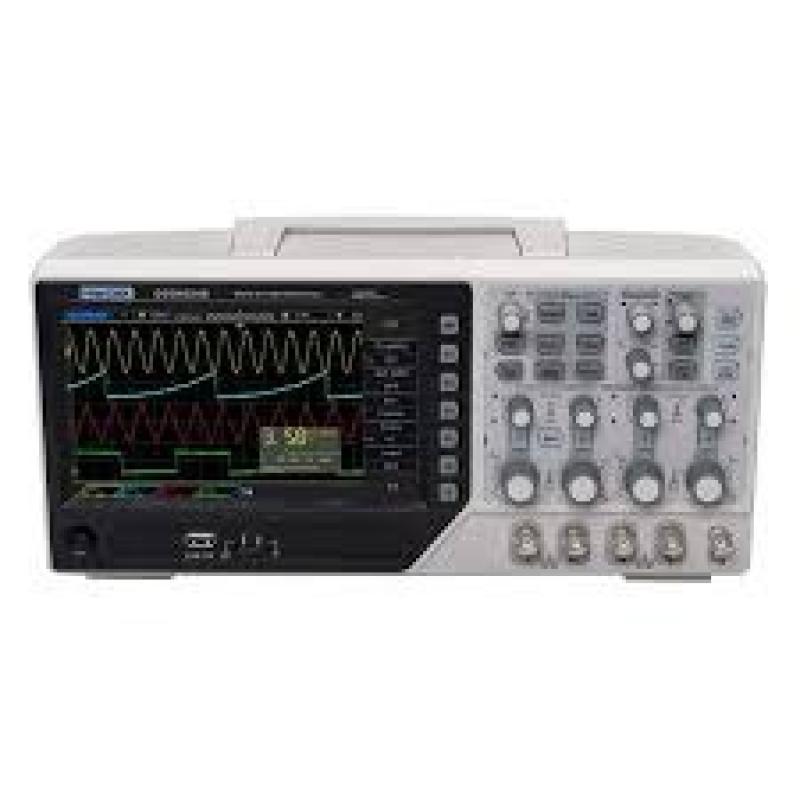

Hantek DSO4254B 250MHz 4-Channels Oscilloscope Digital Storage DSO
৳5800
The Hantek DSO4254B is a high-performance 4-channel digital storage oscilloscope designed for professionals and enthusiasts in electronics, automotive diagnostics, and educational settings. With a bandwidth of 250 MHz and a real-time sampling rate of 1 GSa/s, it offers precise waveform analysis capabilities. The oscilloscope features a user-friendly 7-inch TFT LCD display with a resolution of 800x480 pixels, ensuring clear and detailed waveform visualization.
| Feature | Specification |
|---|---|
| Model | DSO4254B |
| Bandwidth | 250 MHz |
| Channels | 4 (independent control) |
| Sample Rate (Real-Time) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Sample Rate (Equivalent) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Memory Depth | 64 Mpts (single channel), 32 Mpts (dual channel) |
| Vertical Resolution | 8 bits |
| Vertical Range | 500 μV/div to 10 V/div |
| Display | 7-inch TFT LCD, 800x480 resolution |
| Trigger Modes | Edge, Pulse Width, Line Selectable Video, Slope, Overtime, Window, Pattern, Interval, Runt |
| Serial Protocol Decode | I2C, SPI, UART/RS232, CAN, LIN |
| Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
| Digital Voltmeters | 2 sets (3-digit digital voltage meter and 6-digit hardware frequency indicator) |
| Connectivity | USB Host and Device Ports |
| Remote Control | SCPI remote command support |
| Power Supply | 100–240V AC, 50/60 Hz |
