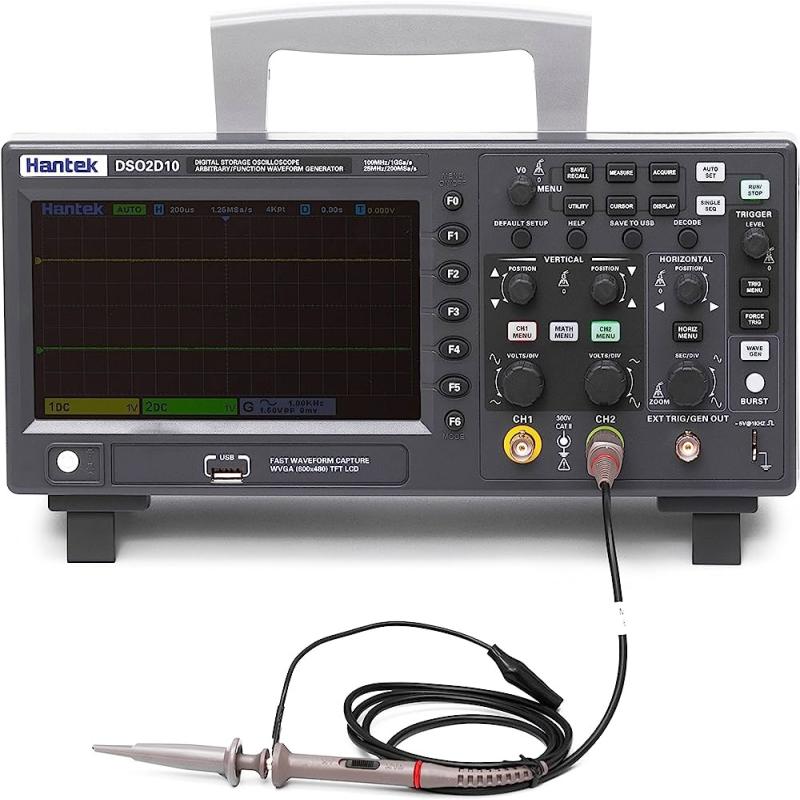

Hantek DSO2D10 100MHz 2-Channels Digital Oscilloscope DSO with Signal Generator
৳32500
The Hantek DSO2D10 is a versatile and cost-effective digital storage oscilloscope designed for professionals and enthusiasts in electronics, automotive diagnostics, and educational settings. With a 100 MHz bandwidth, 1 GSa/s real-time sampling rate, and an 8M memory depth, it offers precise waveform analysis capabilities. The oscilloscope features a user-friendly 7-inch TFT LCD display with a resolution of 800x480 pixels, ensuring clear and detailed waveform visualization. Additionally, it comes with a built-in 25 MHz waveform generator, enhancing its functionality for various applications.
| Feature | Specification |
|---|---|
| Model | DSO2D10 |
| Bandwidth | 100 MHz |
| Channels | 2 (independent control) |
| Sample Rate (Real-Time) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Memory Depth | 8M (single channel), 4M (dual channel) |
| Vertical Resolution | 8 bits |
| Vertical Range | 2 mV/div to 10 V/div |
| Display | 7-inch TFT LCD, 800x480 resolution |
| Waveform Generator | 1 channel, 25 MHz bandwidth, supports arbitrary waveform output |
| Trigger Modes | Edge, Pulse Width, Line Selectable Video, Slope, Overtime, Window, Pattern, Interval, Runt |
| Serial Protocol Decode | I2C, SPI, UART/RS232, CAN, LIN |
| Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
| Digital Voltmeters | 2 sets (3-digit digital voltage meter and 6-digit hardware frequency indicator) |
| Connectivity | USB Host and Device Ports |
| Remote Control | SCPI remote command support |
| Power Supply | 100–240V AC, 50/60 Hz |
