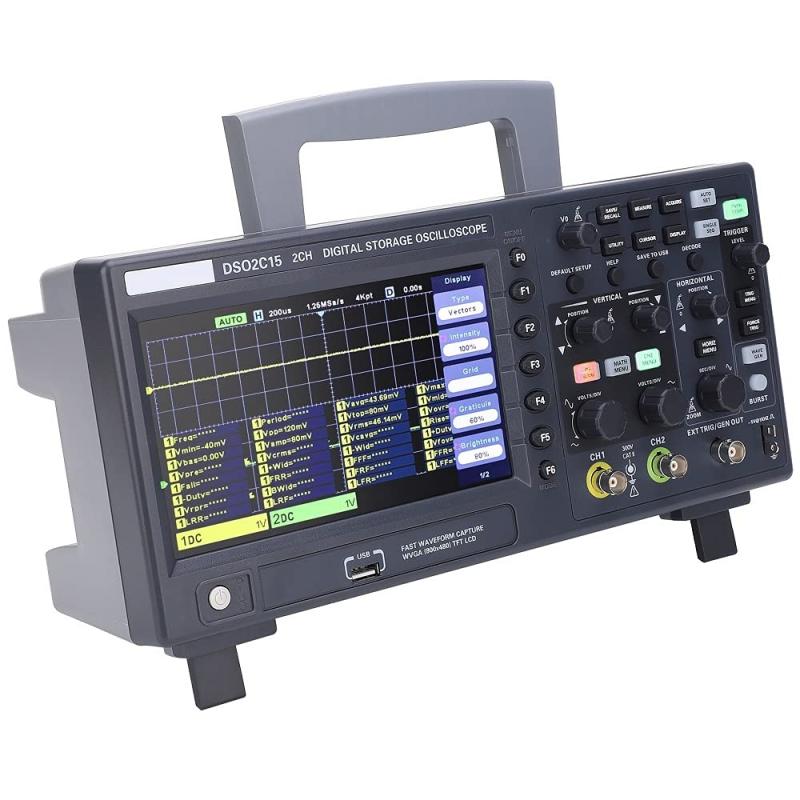

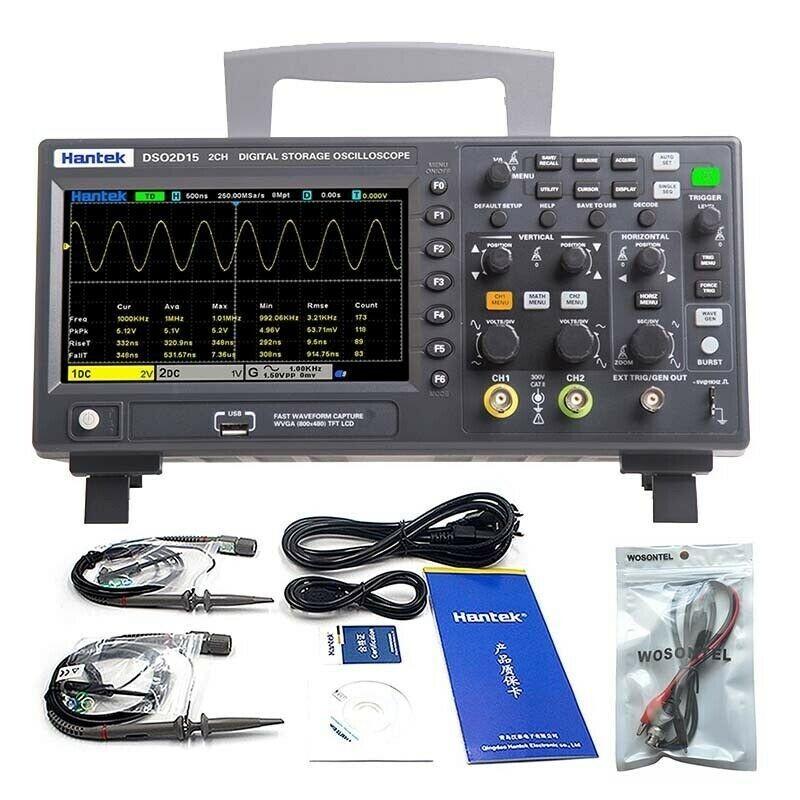

Hantek DSO2C15 150MHz 2 Channels 1Gs/S Digital Oscilloscope DSO
৳28750
The Hantek DSO2C15 is a versatile 2-channel digital storage oscilloscope designed for professionals and enthusiasts in electronics, automotive diagnostics, and educational settings. With a bandwidth of 150 MHz and a real-time sampling rate of 1 GSa/s, it offers precise waveform analysis capabilities. The oscilloscope features a user-friendly 7-inch TFT LCD display with a resolution of 800x480 pixels, ensuring clear and detailed waveform visualization.
| Feature | Specification |
|---|---|
| Model | DSO2C15 |
| Bandwidth | 150 MHz |
| Channels | 2 |
| Sample Rate (Real-Time) | 1 GSa/s |
| Sample Rate (Equivalent) | 25 GSa/s |
| Memory Depth | Up to 8,000,000 points |
| Display | 7-inch TFT LCD, 800x480 resolution |
| Trigger Modes | Edge, Pulse Width, Line Selectable Video, Slope, Overtime, etc. |
| Connectivity | USB Host and Device Ports |
| Math Functions | 4 (including FFT) |
| PC Software Support | Yes, for real-time analysis |
| Power Supply | 100–240V AC, 50/60 Hz |
