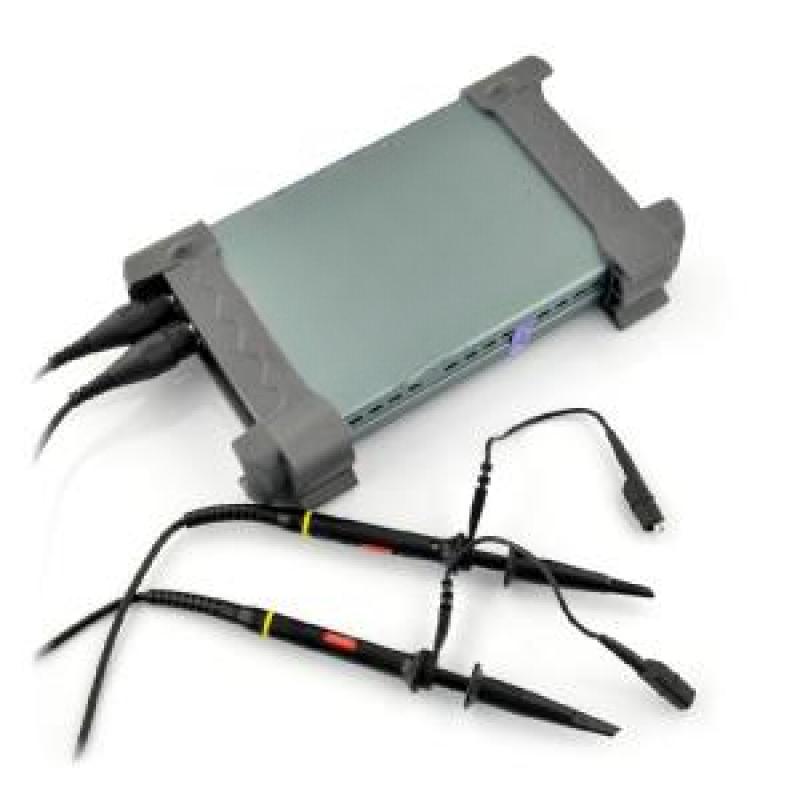

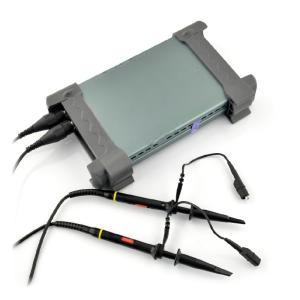

Hantek 6022BE USB Digital Oscilloscope 2 Channels 20MHz
৳8700
The Hantek 6022BE USB Digital Oscilloscope is a compact, PC-based scope designed for engineers, students, and technicians in Bangladesh. With 2 channels and 20MHz bandwidth, it allows precise signal capturing and waveform analysis through simple USB connectivity to a computer. Its lightweight design makes it portable, while the included software ensures easy data recording and measurement. Widely used in labs, universities, and electronics workshops, the Hantek 6022BE is a cost-effective yet powerful solution for signal testing and analysis.

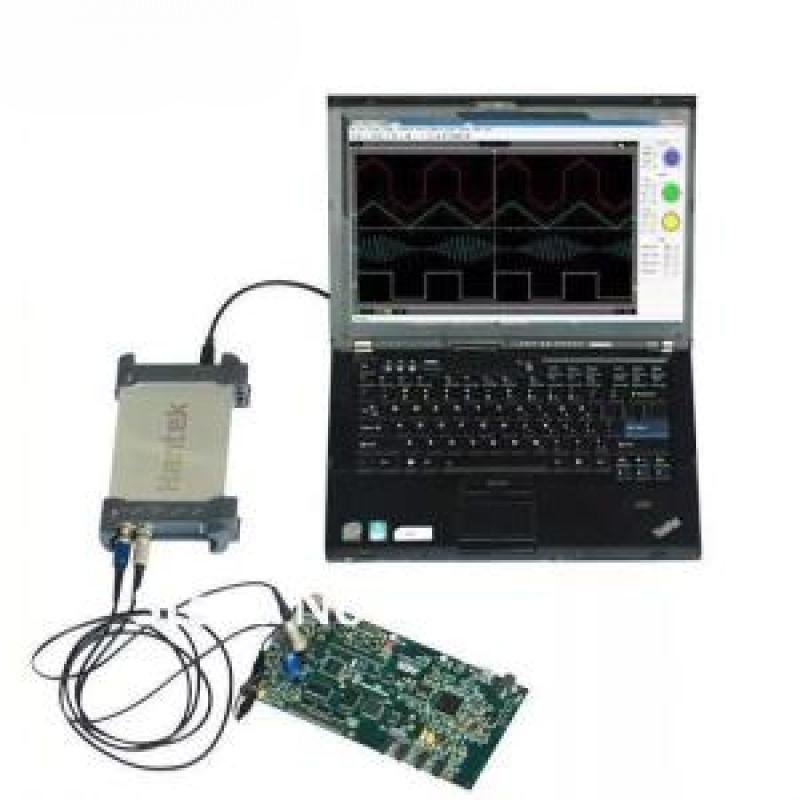

The Hantek 6022BE is a portable USB digital storage oscilloscope designed for efficient electronic testing and troubleshooting. Featuring 2 channels and a 20 MHz frequency range, it connects directly to your laptop or PC via USB, transforming it into a powerful virtual oscilloscope.
Compact and cost-effective, the 6022BE offers the convenience of modern PC integration while eliminating the need for bulky traditional oscilloscopes—saving both space and money. Perfect for students, hobbyists, and professionals alike.
Hantex 6022BE Specifications:
- Channels: 2
- Bandwidth: 20 MHz
- Input Impedance: 1MΩ 25pF
- Max. Sample rate:48MS/s
- Vertical resolution: 8-bit
- Gain range: 20mV-5V, 8Steps
- DC accuracy: ±3%
- Timebase range: 1ns-9000s, 39 Steps
- Vertical adjustable: Yes
- Input protection: Diode clamping
- X-Y: Yes
- Trigger Mode: Auto, Normal, and Single
- Trigger Slope: +/-
- Trigger level adjustable: Yes
- Trigger Type: Rising edge, falling edge
- Trigger Source: CH1, CH2
- Sampling selection: Yes
- Waveform Display: port/line, waveform average, persistence, intensity
- Network: Open/Close
- Vertical mode: CH1, CH2, Dual, ADD
- Cursor measurement: Yes
- Math: FFT, addition, subtraction, multiplication, division.
- Cursor: Frequency, Voltage
- Dimensions: 205mm (L) x 120 mm (W) x 35 mm (H)
- Accessories: Software CD, probes, manual, USB cord
- Operating System: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.
Hantex 6022BE Features
- The unit conforms to the standard USBXITM interface, and can easily insert into a USBXITM housing, allowing the user to build up a combination instrument.
- USB 2.0 interface, no external power source required, easy to use.
- Suitable for notebook computers or product line maintenance.
- High performance, 48MS/s real-time sampling, 20MHz Bandwidth.

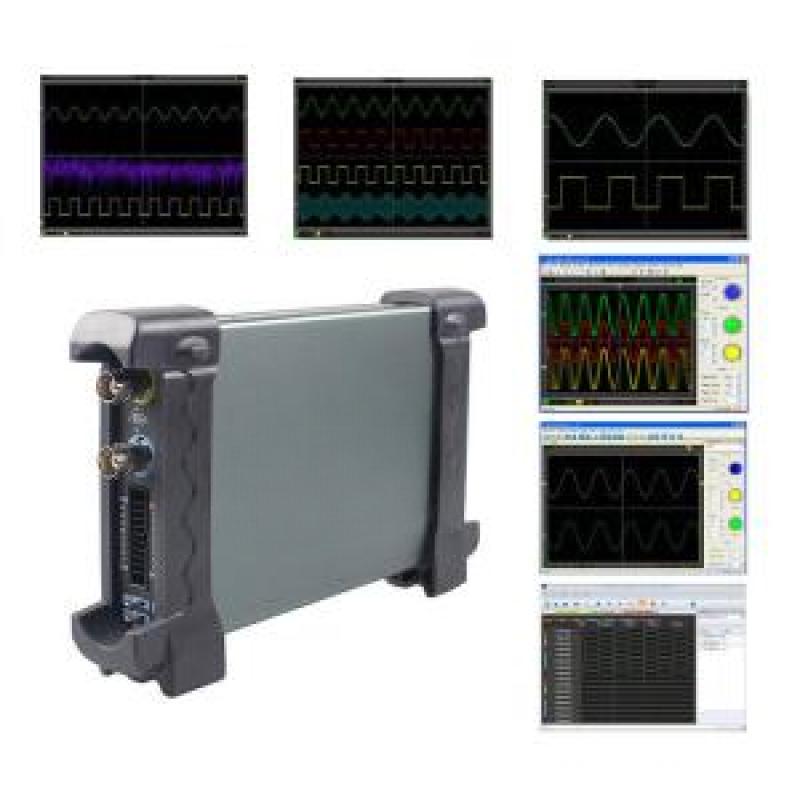

- 23 measurement functions, PASS/FAIL Check, suitable for technical application> Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Saves waveform in the following: text file, JPG/BMP graphic file, MS Excel/Word file. FFT
- One computer can connect many DSOs to easily extend channels.
Documents

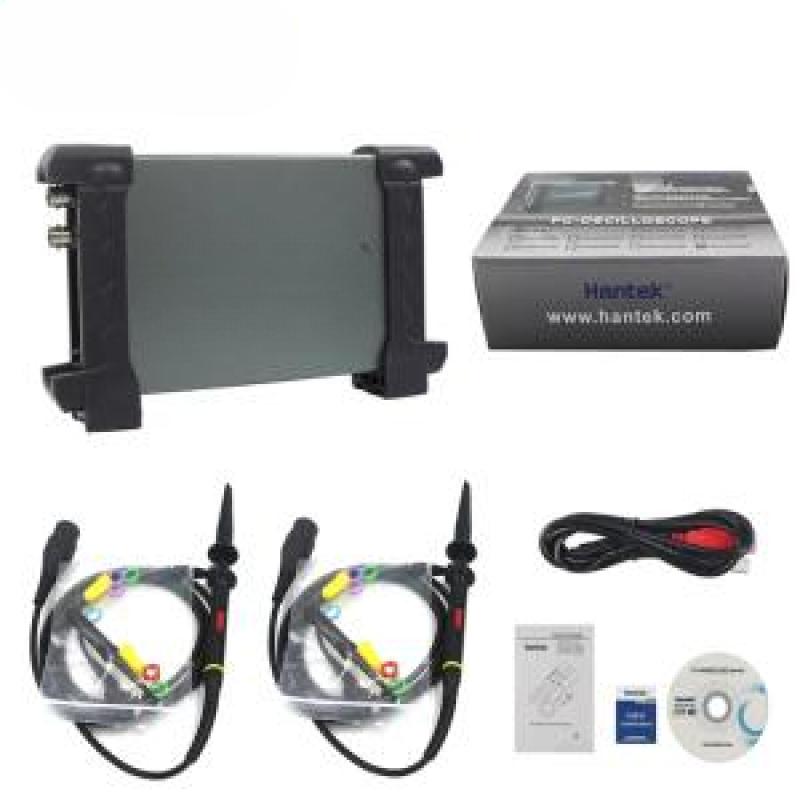

Included
- Oscilloscope
- Two measuring probes with 1x and 10x scale
- Instruction manual
- USB cable
- PC communication software
