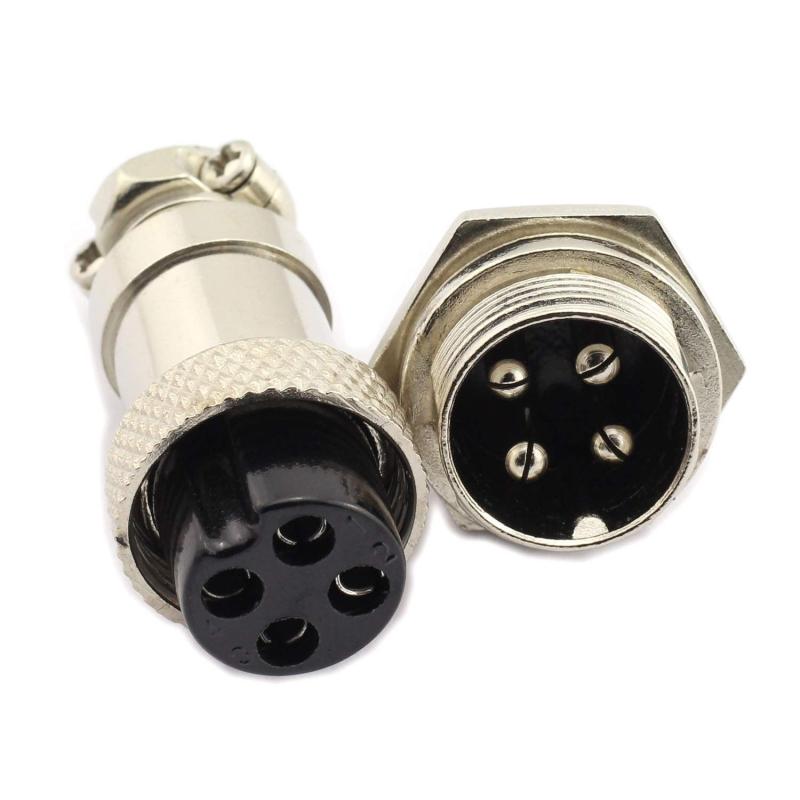

GX16 Plug 4 Pin Male Female Aviation Connector Dual Ports
৳282
The GX16 4-Pin Aviation Connector (Dual Ports) is a compact, durable, and secure metal connector designed for stable electrical connections in industrial and hobby electronics. It includes one male plug and one female socket, both featuring a threaded screw-lock mechanism to prevent accidental disconnection during operation or movement. Ideal for custom wiring, this connector is commonly used in applications such as sensors, LED lighting, automation systems, CNC machines, and 3D printers.
Categories:
Electronics Products
/
Others
/
Mechanical Products
/
Others
Brand:
Made in China
SKU: Available
| Feature | Details |
|---|---|
| Product Type | GX16 Aviation Connector (Male + Female) |
| Pin Count | 4 Pins |
| Connection Type | Solder Terminals |
| Locking Mechanism | Threaded Screw Lock |
| Panel Mounting | Up to 8.5mm thickness |
| Material | Zinc Alloy Shell with Nickel Plating |
| Color | Silver |
| Male Dimensions | 35.3mm (Length) × Ø18.5mm (Diameter) |
| Female Dimensions | 20.8mm × 21.6mm |
| Rated Current | 10A (varies by pin usage) |
| Rated Voltage | 125V AC/DC |
| Contact Resistance | ≤ 5mΩ at 1A |
| Insulation Resistance | ≥ 1500 MΩ at 500V DC |
| Withstand Voltage | 1500V AC (1 minute) |
| Operating Temperature | -20°C to +85°C |
| Mating Cycles | 500 cycles |
| Applications | Sensors, LED Lighting, Automation Systems, CNC Machines, 3D Printers |
