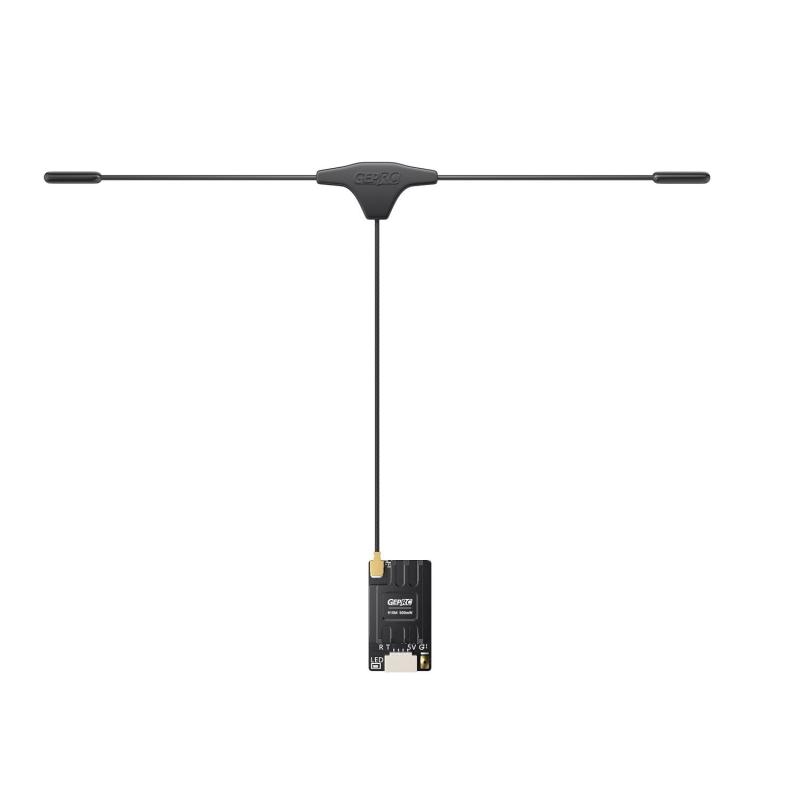

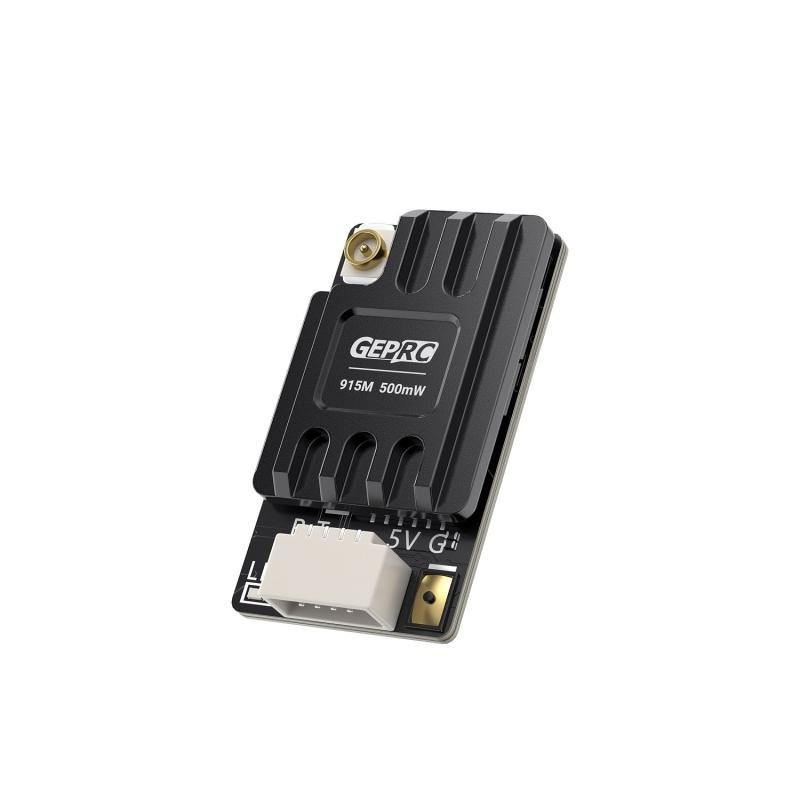

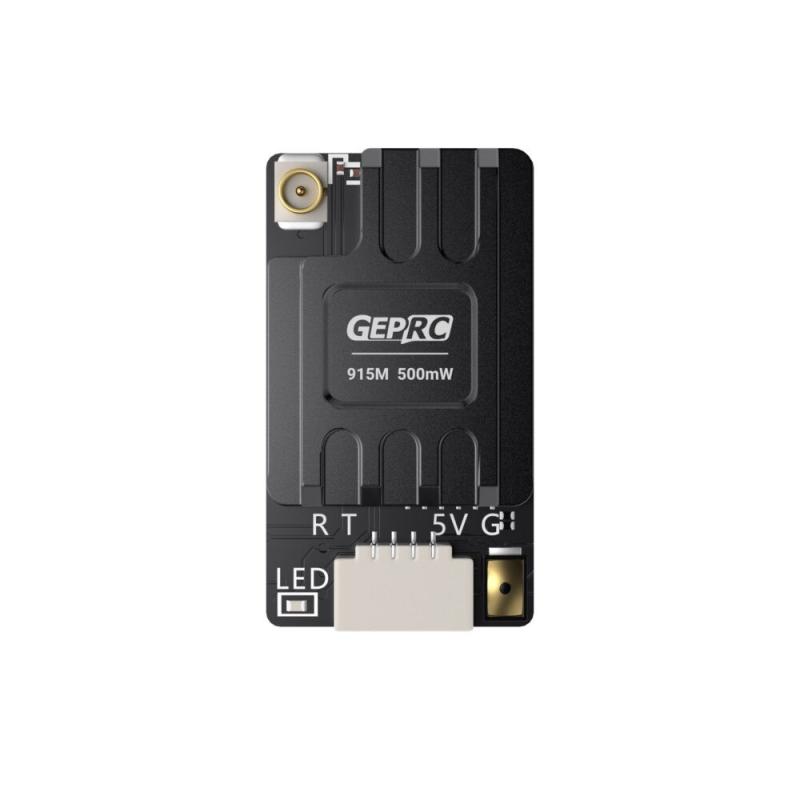

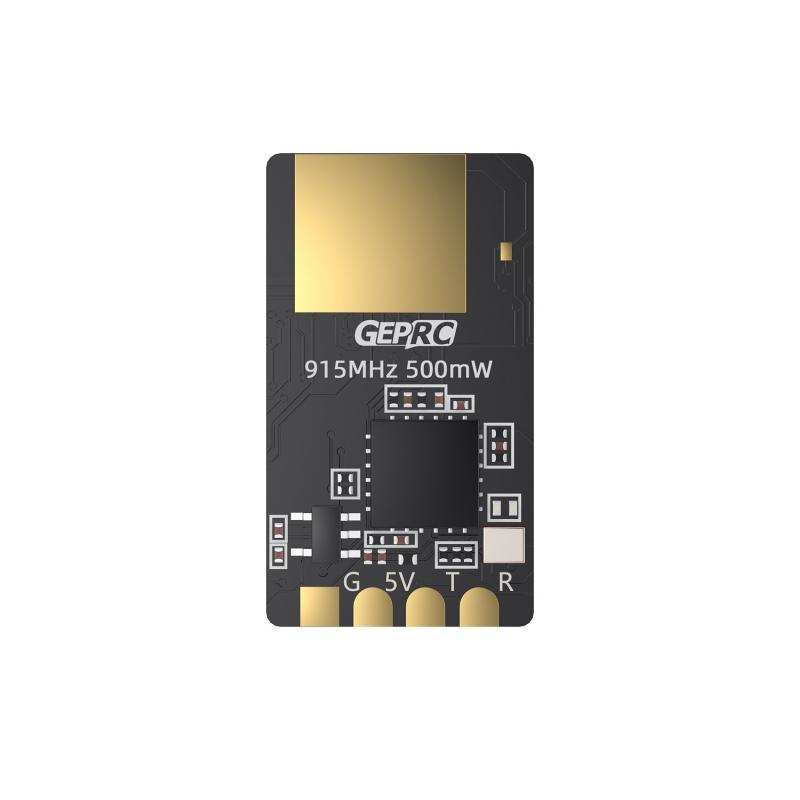

GEPRC ELRS Nano 915M PA500 Receiver

৳4320
The GEPRC ELRS Nano 915M PA500 Receiver is a compact and high-performance receiver designed for drone enthusiasts seeking long-range capabilities and stable communication. Weighing only 1.9g and measuring 13×23×5.5mm, it is ideal for lightweight builds. Equipped with a TCXO (Temperature Compensated Crystal Oscillator), it ensures frequency stability even in varying temperatures. The integrated high-power PA chip provides a telemetry power of up to 500mW, enhancing signal strength over long distances. Additionally, the receiver features a built-in WiFi antenna, allowing for easy firmware upgrades via WiFi, and comes with an SH1.0 connector for straightforward installation.
Categories: Drone / RC Radio Controller Brand: GEPRC SKU: Available
Share :
Feature Details
Model GEPRC ELRS Nano 915M PA500 Receiver
Dimensions 13 × 23 × 5.5 mm
Weight 1.9g (Receiver only)
Chipset ESP8285, SX1276
Crystal Oscillator TCXO (Temperature Compensated Crystal Oscillator)
Frequency Band 915 MHz (FCC) / 868 MHz (EU)
Refresh Rate 25 Hz – 200 Hz
Operating Voltage 5V
Telemetry Power Up to 500mW
Antenna Connector IPEX1
Firmware GEPRC Nano 915M PA500 RX
Connector Type SH1.0
