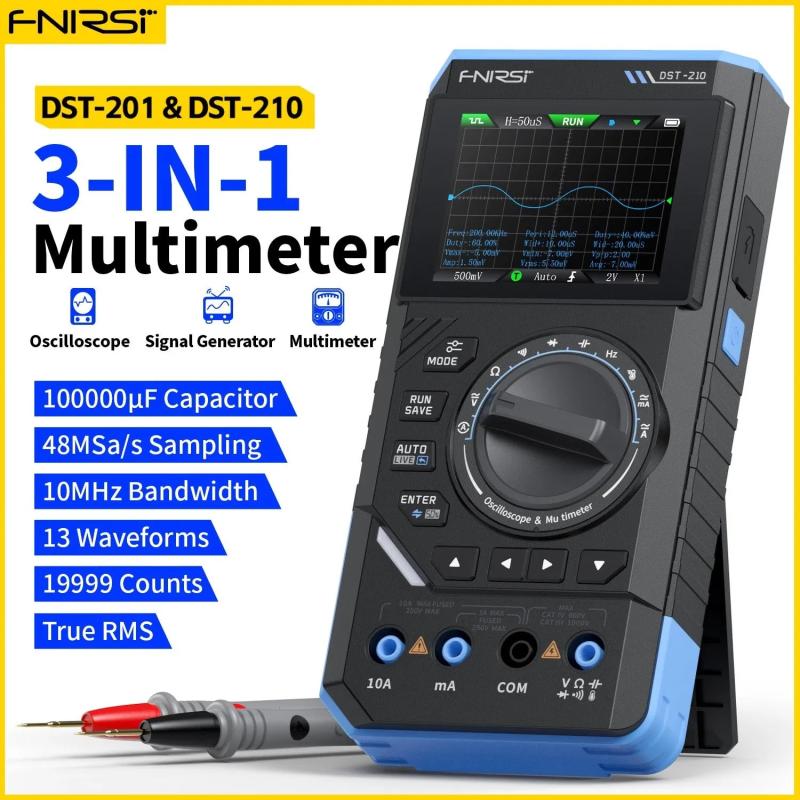

FNIRSI DST-210 Digital Multimeter Oscilloscope Signal Generator (3-in-1)
৳7399
The FNIRSI DST-210 is a compact and multifunctional handheld device that combines the capabilities of a digital multimeter, oscilloscope, and signal generator into a single tool. This integration makes it an invaluable asset for professionals, hobbyists, and students engaged in electronics testing, diagnostics, and development.
Key Specifications
Oscilloscope Function
Sampling Rate: 48MSa/s
Bandwidth: 10MHz
Input Impedance: 1MΩ
Coupling: AC/DC
Voltage Protection: ±400V
Trigger Modes: Auto, Normal, Single
Display: 2.8-inch TFT color screen
Signal Generator Function
Waveform Types: 13 (including sine, square, triangle, sawtooth)
Frequency Range: DST-210: 0–50kHz
Amplitude: Adjustable 0.1V–3.0V
Duty Cycle: Adjustable for square and sawtooth waves (0–100%)
Multimeter Function
Measurement Capabilities:
AC/DC Voltage
AC/DC Current
Resistance
Capacitance
Frequency
Temperature
Diode and Continuity
Additional Features:
Live Line Detection
Data Hold and Recording Functions
Overload Protection
Low Battery Warning
General Features
Power Supply: USB Type-C (5V/1A)
Battery: 3000mAh rechargeable lithium battery
Standby Time: Up to 15 hours
Dimensions: 177.43 × 87.47 × 34.5 mm
Weight: Approximately 300g
Languages Supported: English, 中文
