FNIRSI DSO152 Portable Digital Oscilloscope 2.5Ms/s 200KHz DSO
৳6,200

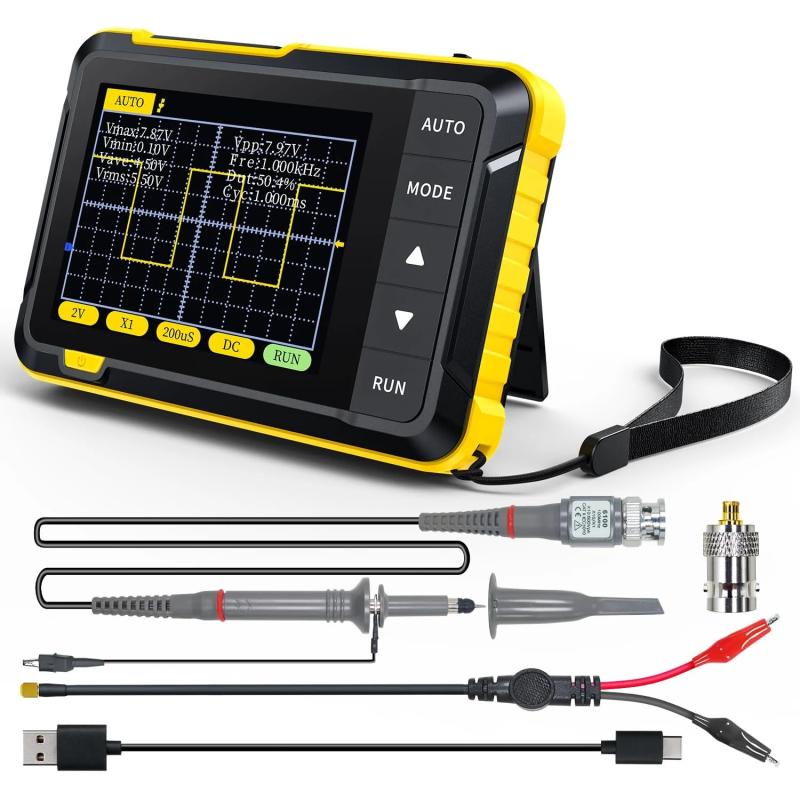

The FNIRSI DSO152 is a compact and affordable digital oscilloscope designed for electronics enthusiasts, students, and professionals seeking a portable solution for basic signal analysis. With its 2.8-inch TFT LCD display, 200kHz bandwidth, and 2.5MS/s real-time sampling rate, it offers essential oscilloscope functions in a lightweight form factor. The device is ideal for tasks such as waveform observation, frequency analysis, and troubleshooting electronic circuits.
| Feature | Specification |
|---|---|
| Model | FNIRSI DSO152 |
| Channels | 1 (Single-channel) |
| Sampling Rate | 2.5MS/s (Real-time) |
| Bandwidth | 200kHz |
| Vertical Sensitivity | 10mV/Div to 20V/Div (1-2-5 progression) |
| Time Base Range | 10µs/Div to 50s/Div (1-2-5 progression) |
| Voltage Range (X1) | ±40V (Vpp: 80V) |
| Voltage Range (X10) | ±400V (Vpp: 800V) |
| Trigger Modes | Auto, Normal, Single |
| Coupling Methods | AC, DC |
| Display | 2.8-inch TFT LCD, 320x240 pixels |
| Battery | 1000mAh Lithium-ion |
| Battery Life | Approximately 4 hours |
| Charging Port | USB Type-C (5V/1A) |
| Calibration Signal | 1kHz Square Wave, 50% Duty Cycle |
| Dimensions | 99 x 68.3 x 19.5 mm |
| Weight | 100g |
