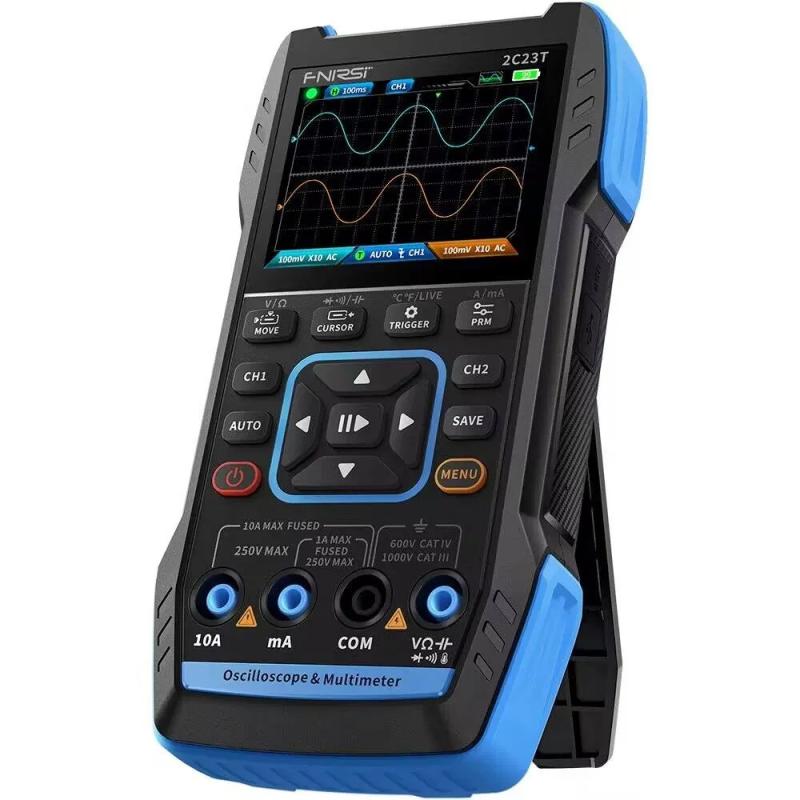

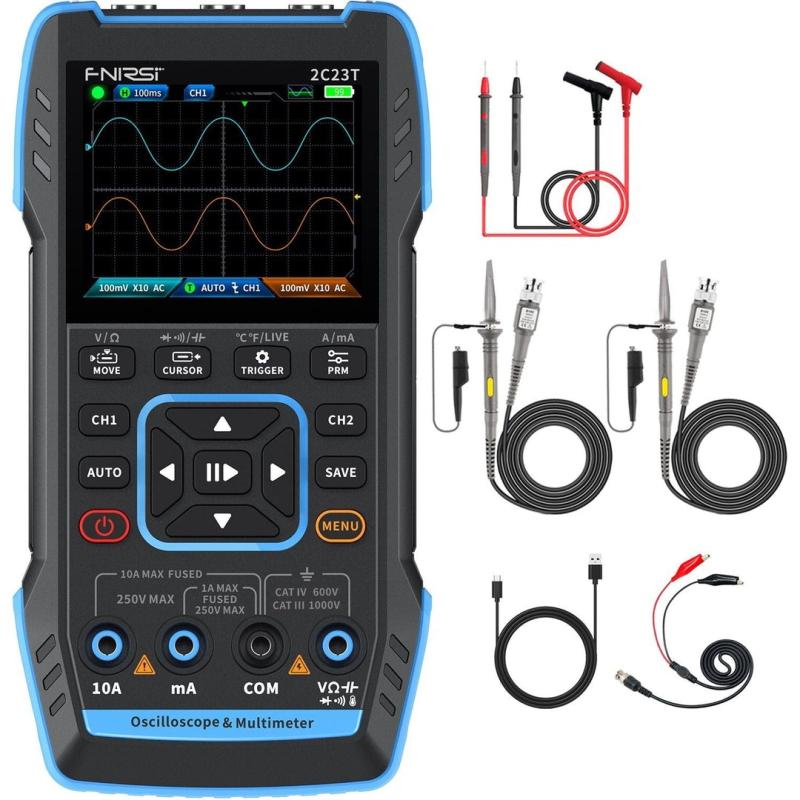

FNIRSI 2C23T 3-in-1 Digital Oscilloscope DSO + Multimeter + Function Signal Generator
৳15600
The FNIRSI 2C23T is a compact and versatile handheld device that combines three essential tools for electronics testing: a digital oscilloscope, a multimeter, and a signal generator. Designed for professionals, students, and hobbyists, it offers a comprehensive solution for various measurement and analysis tasks.
Key Features
Oscilloscope Functionality:
Bandwidth: 10 MHz
Sampling Rate: 50 MSa/s
Memory Depth: 32 kpts
Vertical Sensitivity: 200 mV/div to 10 V/div
Maximum Input Voltage: ±400 V
Display: 2.8" HD LCD (320x240)
Waveform Storage: Supports saving and exporting waveform images for analysis
Multimeter Capabilities:
Display: 4-digit, 10,000 counts
AC Voltage: 0–750 V
DC Voltage: 0–999.9 V
AC/DC Current: 0–9.999 A
Resistance: 0–99.99 MΩ
Capacitance: 0–99.99 mF
Temperature Measurement: -55°C to 1300°C
Additional Functions: Diode test, Continuity, Non-contact voltage detection
True RMS: Yes
Data Logging: Yes
Signal Generator:
Frequency Range: 1 Hz to 2 MHz
Amplitude Range: 0.1 to 3.3 Vpp
Waveform Types: Sine, Square, Triangle, Ramp, Pulse, Noise, DC
Frequency Resolution: 1 Hz
Waveform Length: 16 kpts
Power Supply:
Battery: 3000 mAh lithium rechargeable
Charging Port: USB Type-C (5V/1A)
Standby Time: Up to 6 hours
Physical Dimensions:
Size: 167 x 89 x 35 mm
Weight: 300 g
