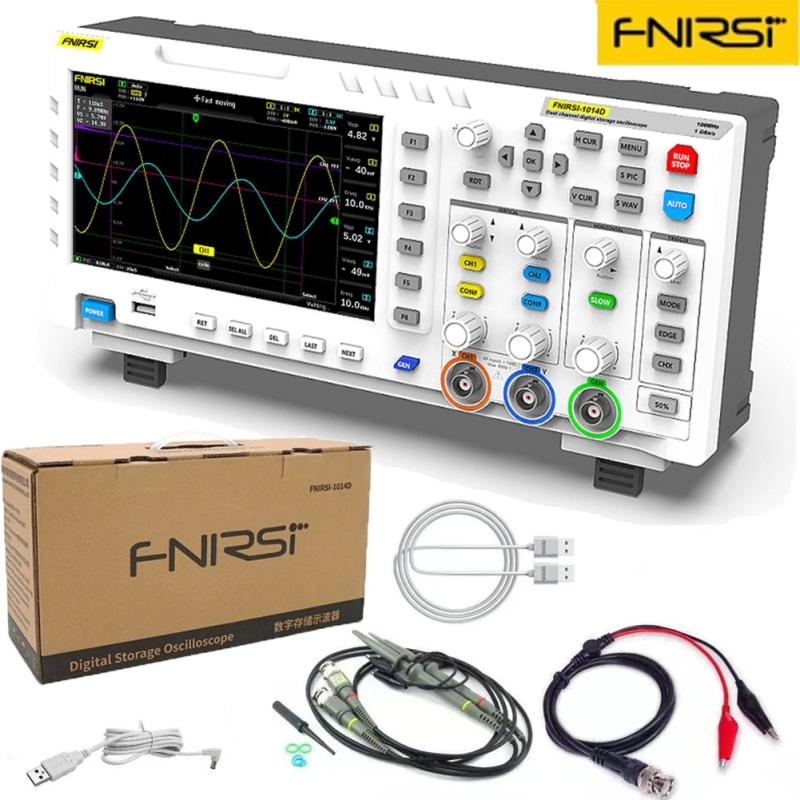

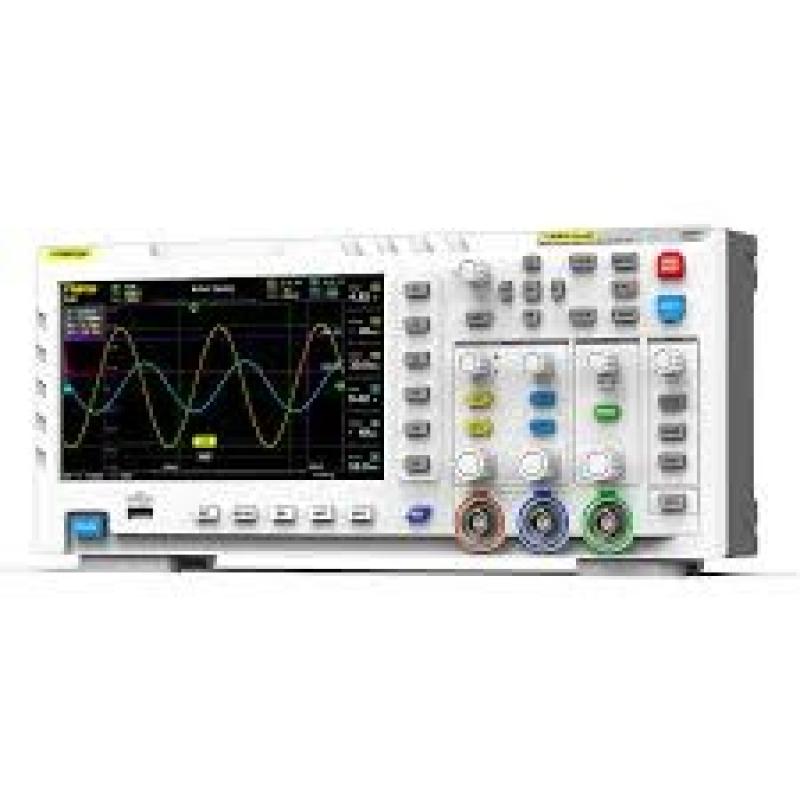

FNIRSI 1014D 100Mhz 2-Channel Digital Oscilloscope DSO with Signal Generator
৳27,000
The FNIRSI 1014D is a versatile 2-in-1 digital storage oscilloscope and DDS (Direct Digital Synthesis) signal generator, designed for professionals and enthusiasts in electronics, automotive diagnostics, and educational settings. With a 100 MHz bandwidth and a real-time sampling rate of 1 GSa/s, it offers precise waveform analysis capabilities. The oscilloscope features a user-friendly 7-inch TFT LCD display with a resolution of 800x480 pixels, ensuring clear and detailed waveform visualization. Additionally, it includes a built-in DDS signal generator with 14 standard waveforms and a unique chopping function for custom waveform generation.
| Feature | Specification |
|---|---|
| Model | FNIRSI 1014D |
| Bandwidth | 100 MHz (dual channel) |
| Channels | 2 (independent control) |
| Sample Rate (Real-Time) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Sample Rate (Equivalent) | 1 GSa/s (single channel), 500 MSa/s (dual channel) |
| Memory Depth | ≥10,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Range | 20 mV/div to 5 V/div |
| Display | 7-inch TFT LCD, 800x480 resolution |
| Time Base Range | 2 ns/div to 1000 s/div |
| Waveform Generator | Built-in DDS, supports 14 standard waveforms and custom chopping output |
| Trigger Modes | Single, Normal, Automatic |
| Connectivity | USB Device and Host ports |
| Power Supply | DC Power (100–240V AC input via adapter) |
| Dimensions | 310 x 145 x 70 mm |
| Weight | 1.1 kg |
