FNIRSI 1013D-Plus Digital Oscilloscope DSO 2-Channels 100Mhz with 7-inch TFT LCD Touch Screen
৳17,399 ৳20,000

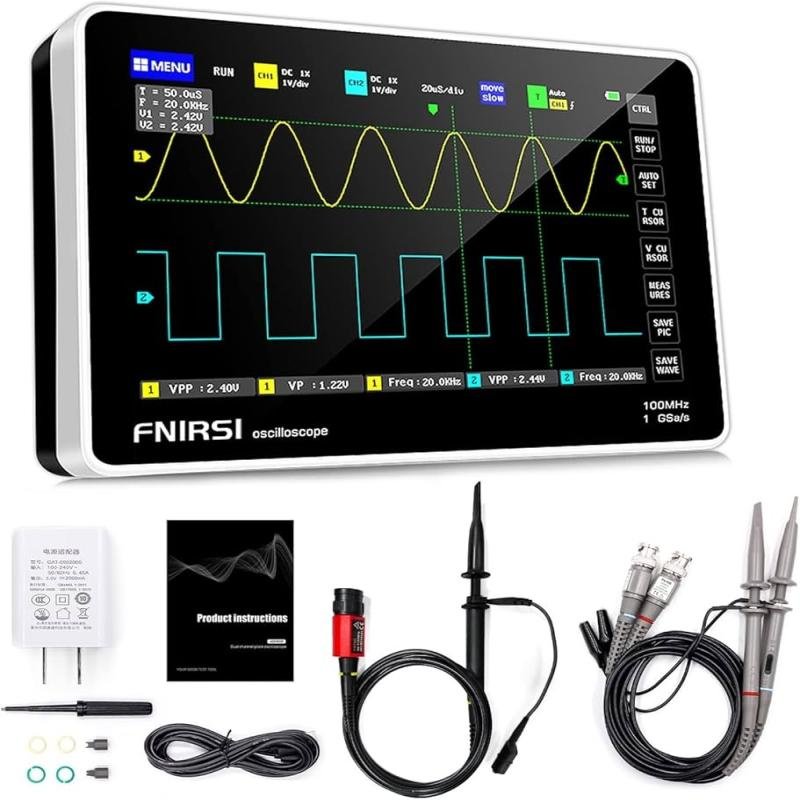

The FNIRSI-1013D Plus is a versatile, portable digital oscilloscope designed for professionals and hobbyists in electronics, research and development, and maintenance. With its dual-channel capability, 100MHz bandwidth, and 1GSa/s real-time sampling rate, it offers precise waveform analysis in a compact, tablet-style form factor. The 7-inch TFT LCD touch screen ensures intuitive operation, while the built-in high-voltage protection and long-lasting battery make it suitable for both lab and field use.

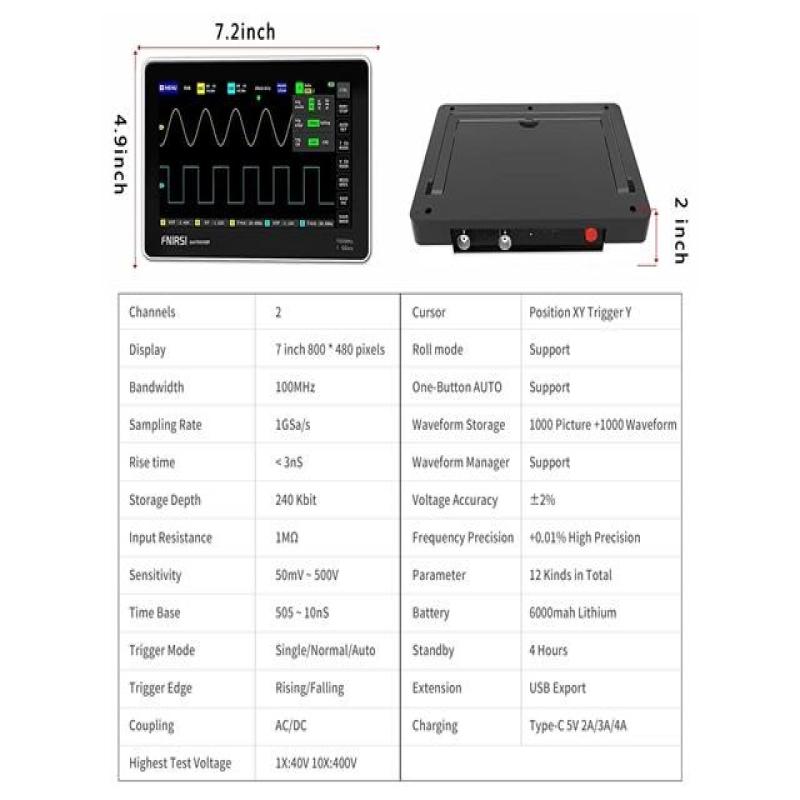

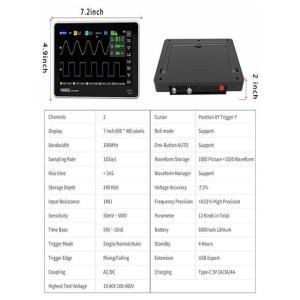

| Feature | Specification |
|---|---|
| Model | FNIRSI-1013D Plus |
| Channels | 2 (Dual-channel) |
| Bandwidth | 100 MHz per channel |
| Sampling Rate | 1 GSa/s (real-time) |
| Display | 7" TFT LCD, 800×480 resolution |
| Vertical Sensitivity | 50 mV/div to 500 V/div |
| Input Resistance | 1 MΩ |
| Trigger Modes | Single, Normal, Auto |
| Coupling | AC/DC |
| Highest Test Voltage | 1X: 40V, 10X: 400V, 100X: 4000V |
| Storage Depth | 240 kpts |
| Timebase Range | 50 s/div to 10 ns/div |
| Battery | 6000 mAh, up to 4 hours continuous usage |
| Storage Capacity | 1 GB (up to 1000 screenshots and waveforms) |
| USB Connectivity | Yes (for data export) |
| Additional Features | FFT analysis, Lissajous display, one-key AUTO |
