The FLSUN V400 Max combines cutting-edge technology with user-friendly features:

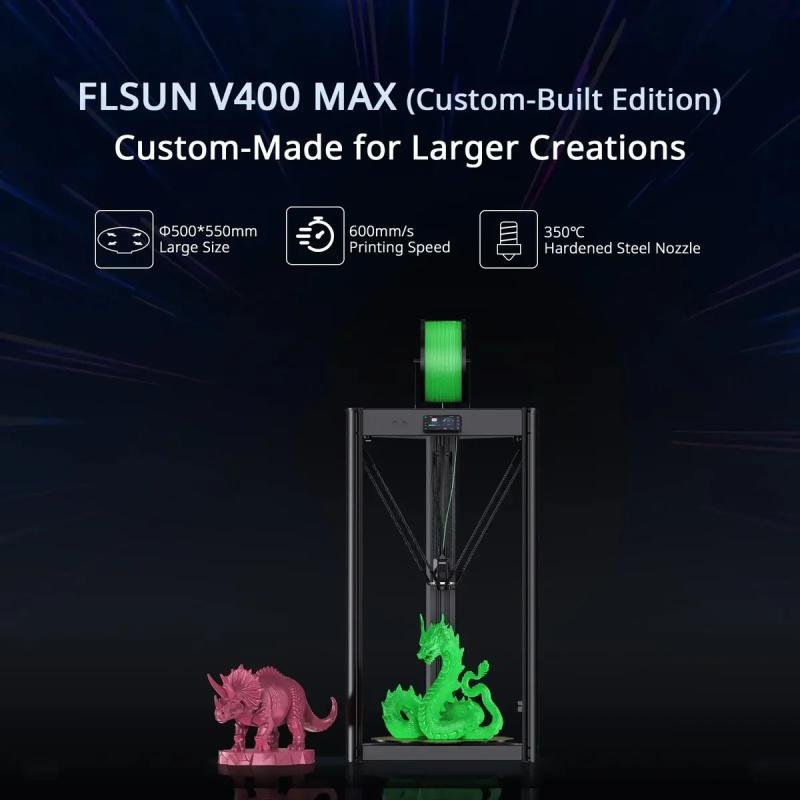

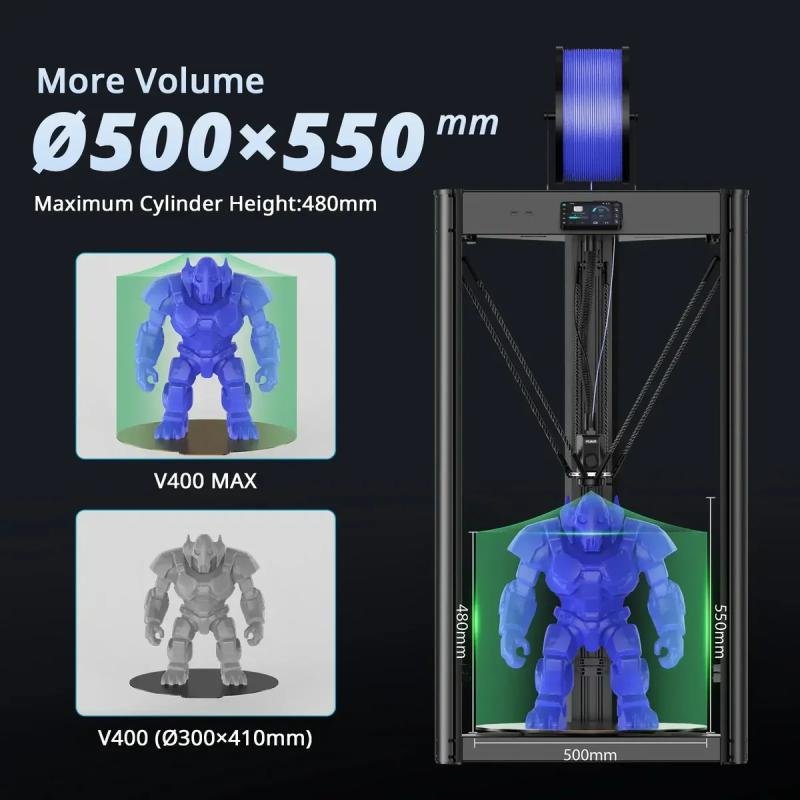

Large Build Volume
Offers a build area of 500mm x 550mm, accommodating larger prints and complex designs.

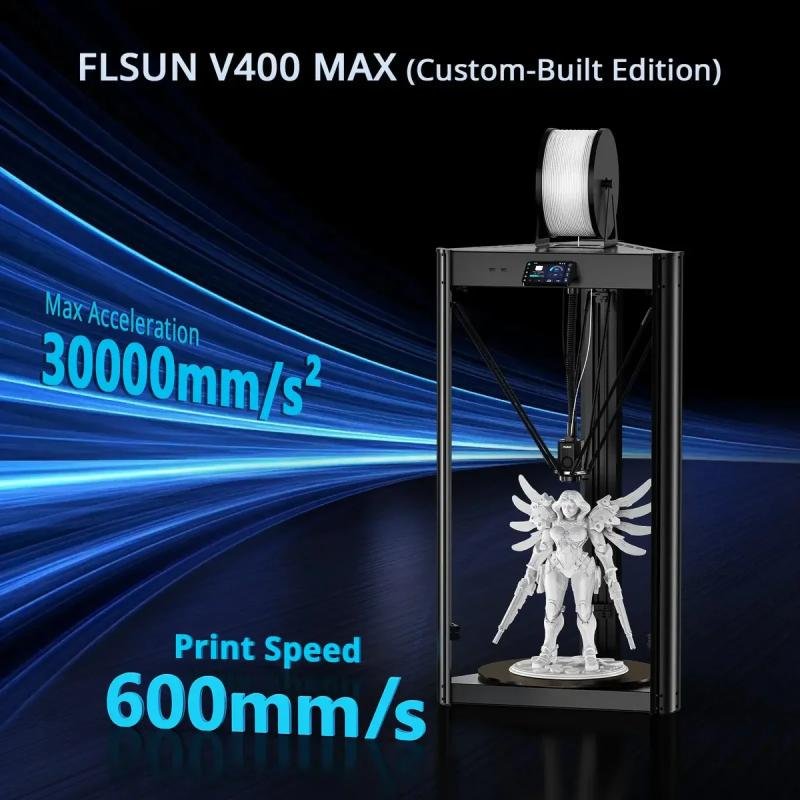

High-Speed Printing
Achieves a maximum print speed of 600 mm/s, significantly reducing print times for large models.
Advanced Hotend
Equipped with a 350°C hotend, enabling compatibility with a wide range of filaments, including high-temperature materials.
Dual-Gear Direct Drive Extruder
Ensures precise filament feeding, improving print quality and reliability.
Auto-Leveling System
Features an advanced auto-leveling system that adapts precisely to bed unevenness, ensuring reliable first layers even during high-speed or continuous production.
Quiet Operation
Designed to operate at a noise level of ≤55 dB, creating a more refined and focused working environment.

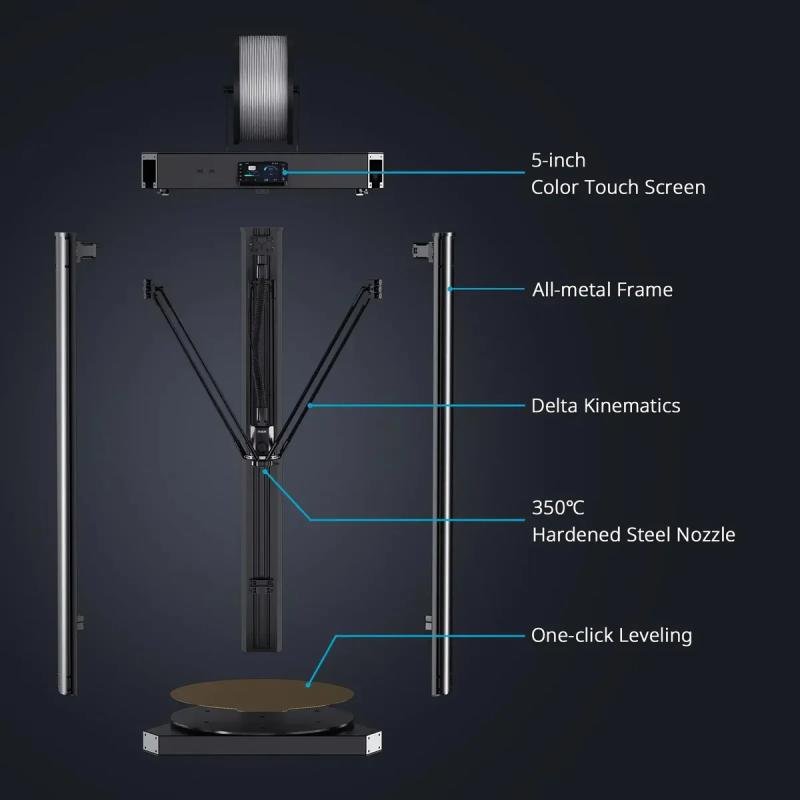

Modular Design
Simplifies maintenance and upgrades with a modular structure, allowing for easier component replacement and customization.
Feature |
Details |
Printing Speed |
Up to 600 mm/s |
Build Volume |
500mm x 550mm |
Hotend Temperature |
Up to 350°C |
Filament Diameter |
1.75 mm |
Extruder Type |
Dual-Gear Direct Drive |
Nozzle Diameter |
0.4 mm |
Auto-Leveling |
Yes |
Noise Level |
≤55 dB |
Frame Design |
Delta-style |
Software Compatibility |
FLSUN Slicer, compatible with other slicers |
Connectivity |
USB, Wi-Fi (optional) |
Display |
5" Color Touchscreen |
Power Supply |
220V~1400W |
Dimensions (L×W×H) |
500 × 550 × 1,200 mm |
Weight |
Approximately 25 kg |
What's in the Box
FLSUN V400 Max 3D Printer
5" Color Touchscreen
Power Supply and Cables
Filament Sensor Module
Auto-Leveling Probe
User Manual and Quick Start Guide
Sample Filament Roll
