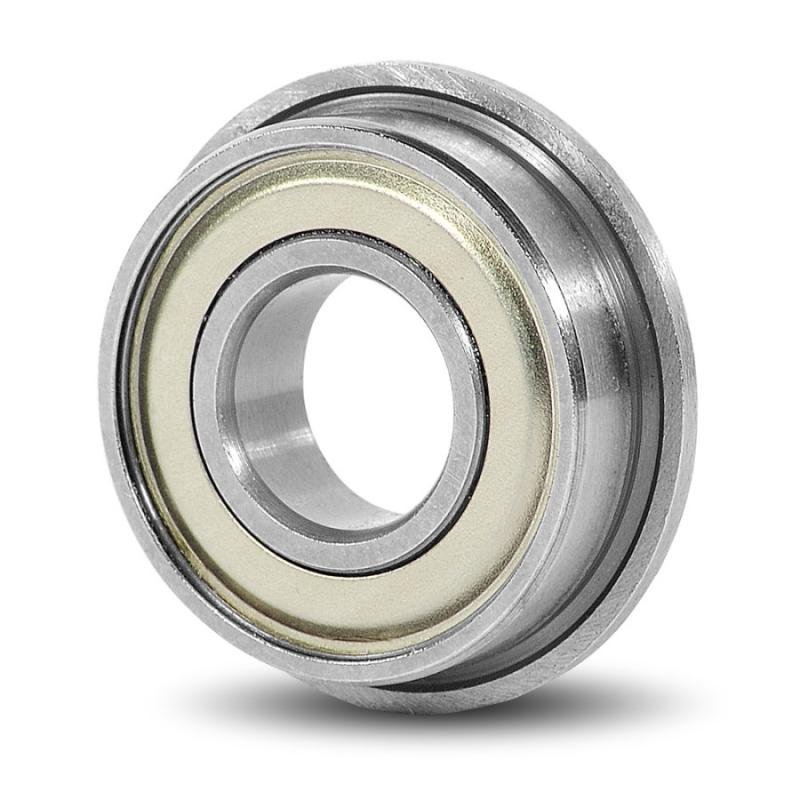

F624ZZ Flanged Miniature Deep Grove Ball Bearing 4x15x5mm for 3D printer CNC Robotics
৳79
The F624ZZ is a single-row deep groove ball bearing designed for high-speed operations and low friction. Its "ZZ" designation indicates metal shields on both sides, providing protection against dust and retaining lubrication. This makes it suitable for applications requiring durability and minimal maintenance.
Key Specifications
Model: F624ZZ
Dimensions:
Inner Diameter (d): 4 mm
Outer Diameter (D): 13 mm
Width (B): 5 mm
Flange Diameter: 15 mm
Flange Width: 1 mm
Material: Chrome Steel (SAE 52100)
Shield Type: Double metal shields (ZZ)
Lubrication: Pre-lubricated with grease
Dynamic Load Rating (C): Approximately 1,300 N
Static Load Rating (C₀): Approximately 490 N
Limiting Speed: Up to 44,000 RPM (grease lubrication)
Operating Temperature Range: -30°C to +120°C
