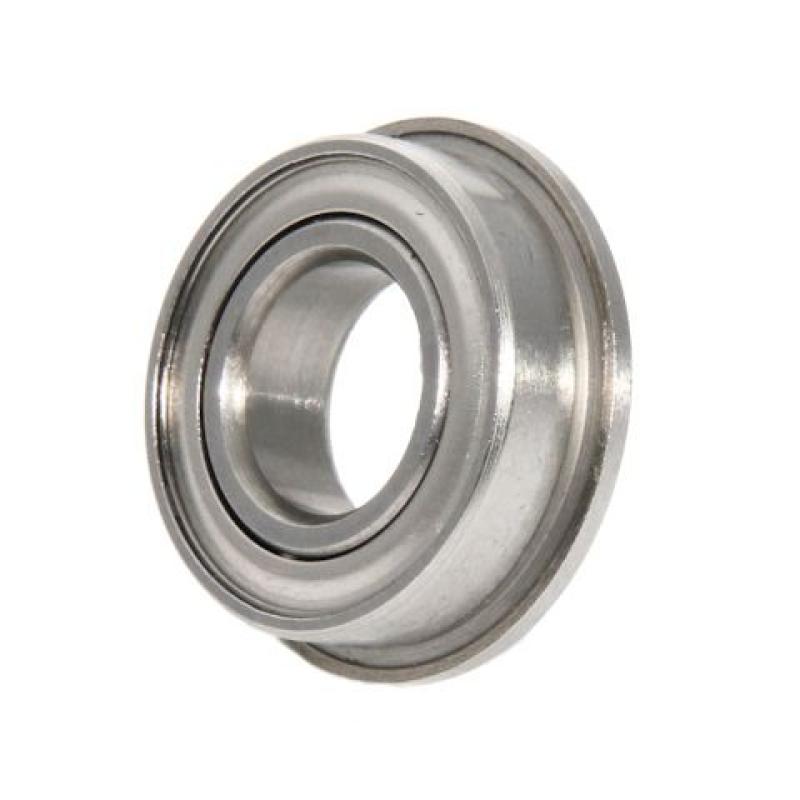

F623ZZ Flanged Miniature Deep Grove Ball Bearing 3x10x4mm for 3D printer CNC Robotics
৳79
The F623ZZ is a single-row deep groove ball bearing designed for high-speed operations and low friction. Its "ZZ" designation indicates metal shields on both sides, providing protection against dust and retaining lubrication. This makes it suitable for applications requiring durability and minimal maintenance.
Key Specifications
Model: F623ZZ
Dimensions:
Inner Diameter (d): 3 mm
Outer Diameter (D): 10 mm
Width (B): 4 mm
Flange Diameter: 11.5 mm
Flange Width: 1 mm
Material: Chrome Steel (GCr15)
Shield Type: Double metal shields (ZZ)
Lubrication: Pre-lubricated with grease
Dynamic Load Rating (C): Approximately 630 N
Static Load Rating (C₀): Approximately 218 N
Limiting Speed: Up to 50,000 RPM (grease lubrication)
Operating Temperature Range: -30°C to +120°C
