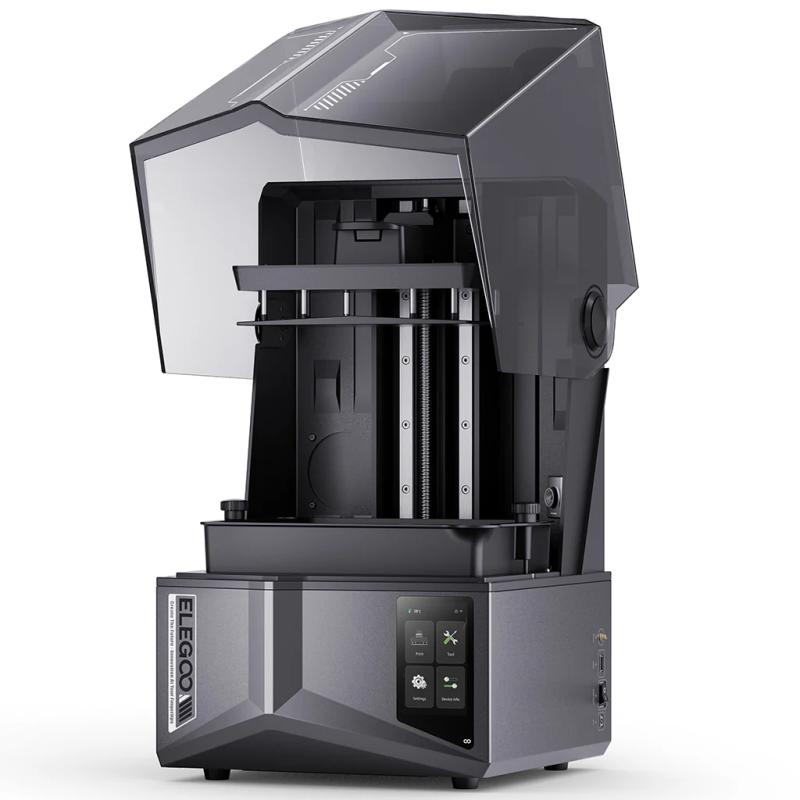

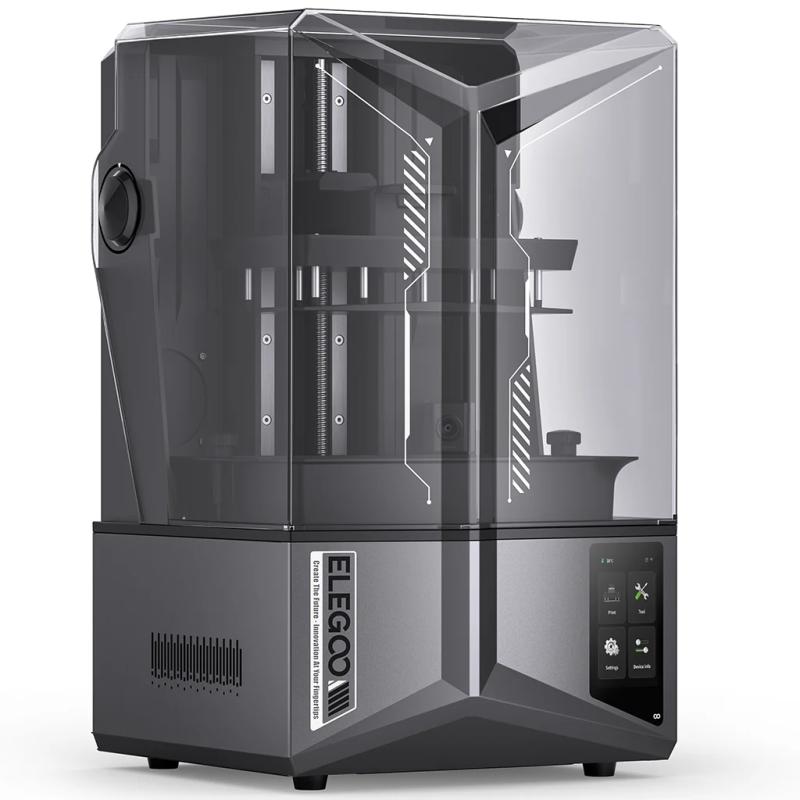

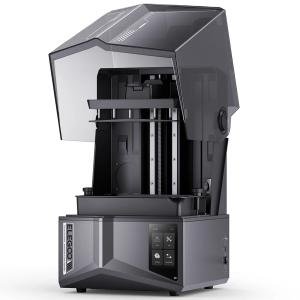

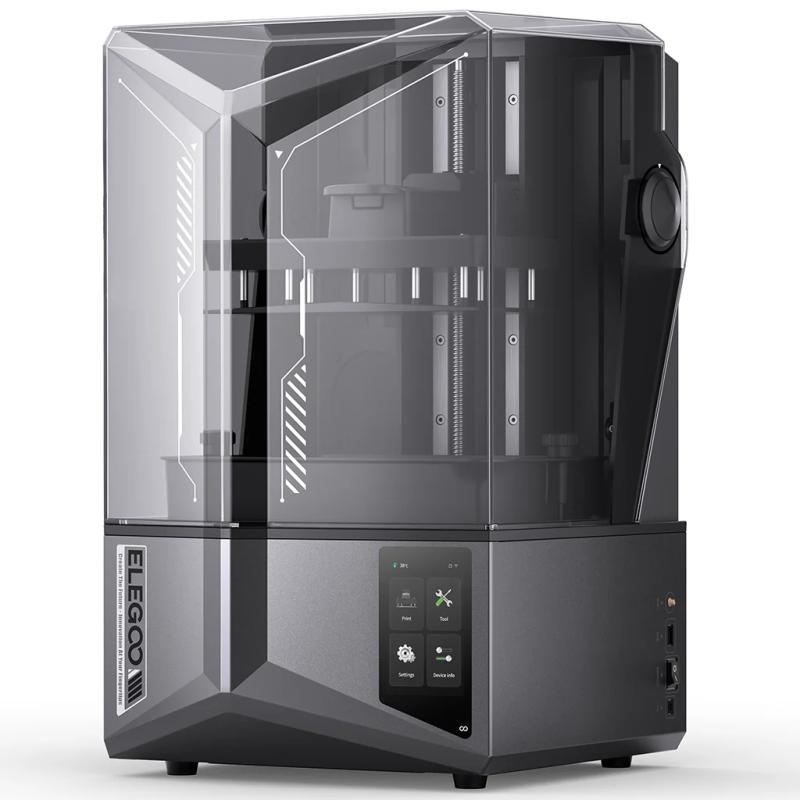

The Elegoo Saturn 4 Ultra 12K combines cutting-edge features to deliver outstanding printing performance:
12K Monochrome LCD Screen
Boasts a resolution of 11520 × 5120 pixels with an XY resolution of 19 × 24 μm, capturing intricate details with exceptional clarity.
Large Build Volume
Offers a build area of 218.88 × 122.88 × 220 mm, accommodating sizable models and reducing the need for multiple prints.
Smart Resin Tank Heating
Maintains resin at an optimal temperature, enhancing fluidity and layer adhesion, and minimizing defects like bubbles and layer separation.
Tilt-Release Technology
Enables quick and effortless model peeling, achieving print speeds of up to 150 mm/h, significantly reducing print times.

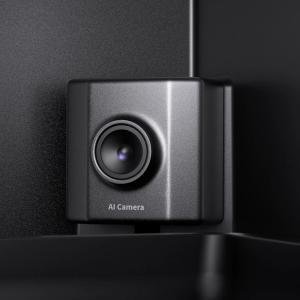

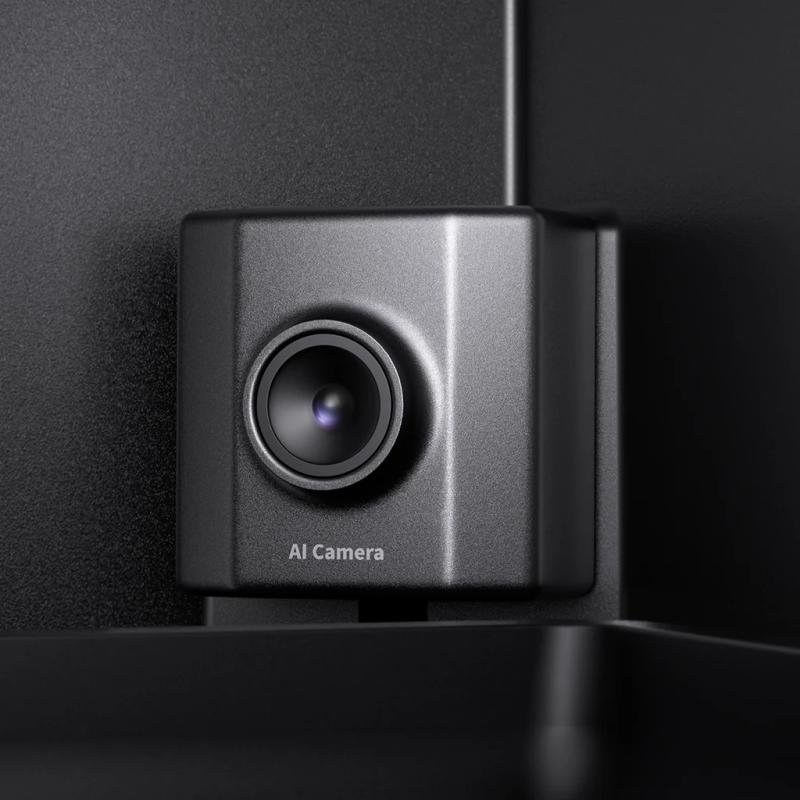

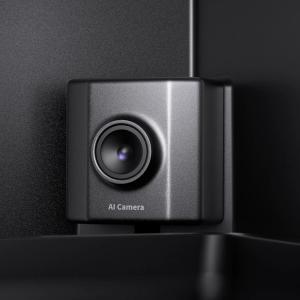

AI-Powered Camera
Equipped with an AI camera and integrated lighting for real-time monitoring and time-lapse recording, ensuring consistent print quality.
Auto-Leveling System
Features automatic leveling for precise calibration, eliminating manual adjustments and simplifying the printing process.
Advanced Safety Features
Includes overheating protection, power loss recovery, and resin shortage alarms to ensure safe and uninterrupted printing.

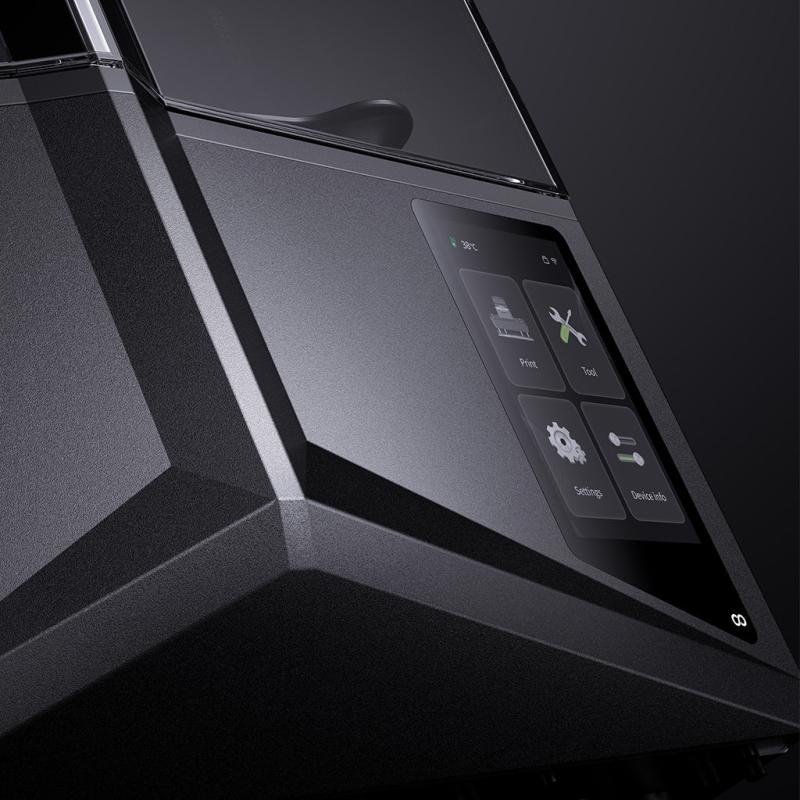

User-Friendly Interface
Operated via a 4.0-inch capacitive touchscreen with a smart UI, supporting multiple languages for ease of use.
Feature |
Details |
Printing Technology |
MSLA (Masked Stereolithography) |
Build Volume |
218.88 × 122.88 × 220 mm |
XY Resolution |
19 × 24 μm |
Z-Axis Accuracy |
0.02 mm |
Layer Thickness |
0.01–0.2 mm |
LCD Screen |
10-inch Monochrome LCD |
Screen Resolution |
11520 × 5120 pixels |
Light Source |
COB Light Source + Fresnel Lens |
Heating System |
Smart Resin Tank Heating |
Tilt-Release Speed |
Up to 150 mm/h |
Camera |
AI Camera with Integrated Lighting |
Auto-Leveling |
Yes |
Safety Features |
Overheating Protection, Power Loss Recovery, Resin Shortage Alarm |
Connectivity |
USB, Wi-Fi |
Operating System |
Custom Firmware with OTA Support |
Touchscreen |
4.0-inch Capacitive Touchscreen |
Dimensions (L×W×H) |
327.4 × 329.2 × 548 mm |
Weight |
14.5 kg |
What's in the Box
Elegoo Saturn 4 Ultra 12K 3D Printer
Build Plate
Resin Tank
Funnel
Resin Tray
USB Flash Drive
Power Supply and Cables
User Manual and Quick Start Guide
