The Elegoo OrangeStorm Giga combines cutting-edge technology with user-friendly features:

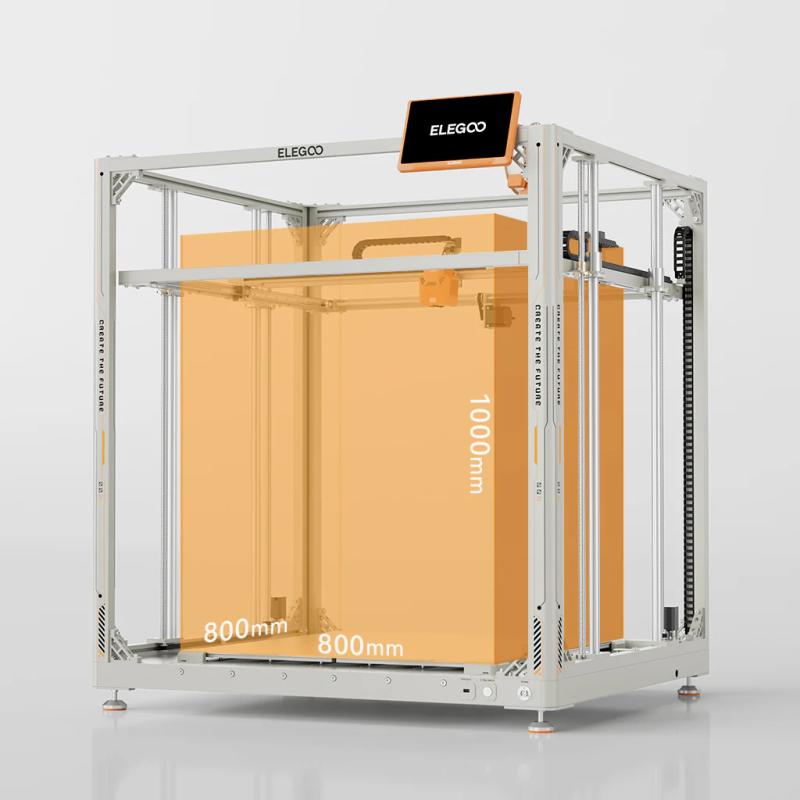

Massive Build Volume
Offers an expansive build area of 800 × 800 × 1000 mm, accommodating large and complex prints.
High-Speed Printing
Achieves print speeds up to 300 mm/s, significantly reducing print times for large models.

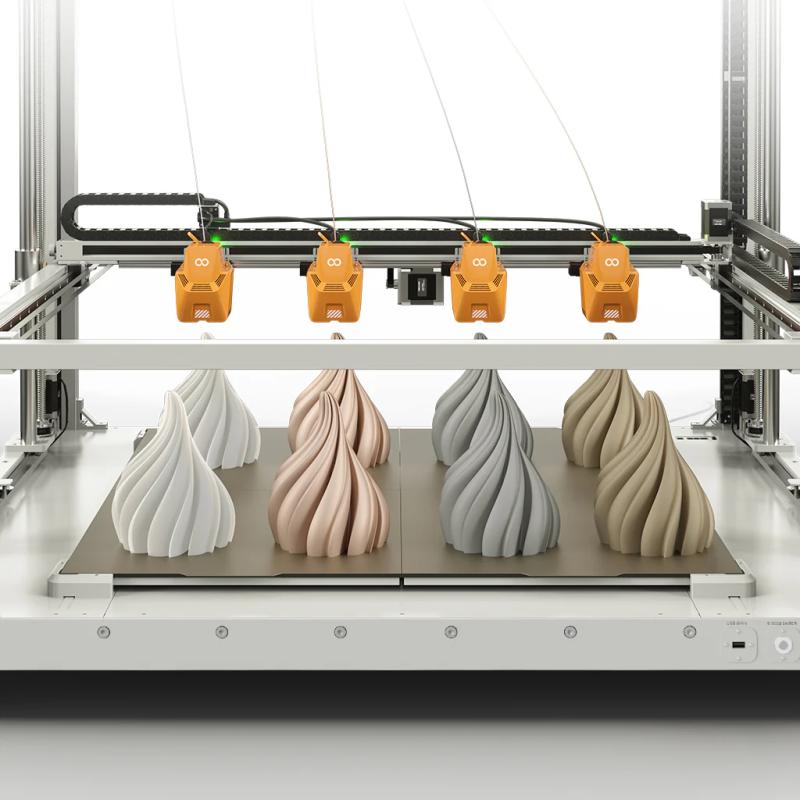

Multi-Nozzle Capability
Supports up to four nozzles for simultaneous printing, allowing for multi-color and multi-material prints.
Efficient Heated Bed
Features a four-zone heated bed with independent control, reaching temperatures up to 100°C in just 17 minutes, ensuring consistent adhesion and reducing warping.
Advanced Extruder System
Equipped with a dual-gear direct drive extruder and a titanium heat break, providing consistent filament flow and compatibility with a wide range of materials.
Intelligent Cooling System
Incorporates powerful cooling fans with automatic control, enhancing print quality and extending component lifespan.
User-Friendly Interface
Features a 10.1-inch touchscreen interface for intuitive control and monitoring of print jobs.
Robust Construction
Built with a sturdy frame and high-quality components, ensuring stability and durability during operation.
Feature |
Details |
Printing Technology |
FDM (Fused Deposition Modeling) |
Build Volume |
800 × 800 × 1000 mm |
Print Speed |
Up to 300 mm/s |
Nozzle Quantity |
1 (expandable to 4) |
Nozzle Diameter |
0.6 mm |
Layer Thickness |
0.1–0.5 mm (recommended 0.3 mm) |
Extruder Type |
Dual-gear direct drive |
Filament Diameter |
1.75 mm |
Heated Bed |
Four-zone PEI magnetic platform |
Max Bed Temperature |
100°C |
Max Nozzle Temperature |
300°C |
Cooling System |
Dual fans with automatic control |
Display |
10.1-inch touchscreen |
Connectivity |
USB, Wi-Fi, LAN |
Frame Dimensions (L×W×H) |
1224 × 1204 × 1424 mm |
Weight |
104 kg |
Power Supply |
100–240V AC |
What's in the Box
Elegoo OrangeStorm Giga 3D Printer Kit
Power Supply and Cables
Filament Sensor Module
Auto-Leveling Probe
User Manual and Quick Start Guide
Sample Filament Roll
