6.6-inch 4K Monochrome LCD
Delivers a resolution of 4098 × 2560 pixels with an XY resolution of 35 × 35 μm, ensuring detailed and precise prints.
Build Volume
Offers a printing area of 143.43 × 89.6 × 150 mm³, suitable for a variety of models.
COB Light Source
Utilizes a 405 nm wavelength COB LED light source, providing uniform exposure and enhancing print quality.
Automatic Leveling
Features intelligent mechanical sensors that detect resin shortages, foreign objects, and leveling issues, minimizing print failures.
One-Click Self-Check
Performs a quick self-diagnosis to verify the printer's components before each print, ensuring reliable operation.
Advanced Overheat Protection
Equipped with a heat dissipation system comprising three copper heat pipes and a fan, preventing overheating during extended prints.
Feature |
Details |
Printing Technology |
MSLA (Masked Stereolithography) |
Build Volume |
143.43 × 89.6 × 150 mm³ |
XY Resolution |
35 × 35 μm |
Z-Axis Accuracy |
0.02 mm |
Layer Thickness |
0.01–0.2 mm |
LCD Screen |
6.6-inch Monochrome LCD |
Screen Resolution |
4098 × 2560 pixels |
Light Source |
COB LED (405 nm) |
Connectivity |
USB |
Slicing Software |
Chitubox & Voxeldance Tango |
Heat Dissipation |
3 Copper Heat Pipes + Fan |

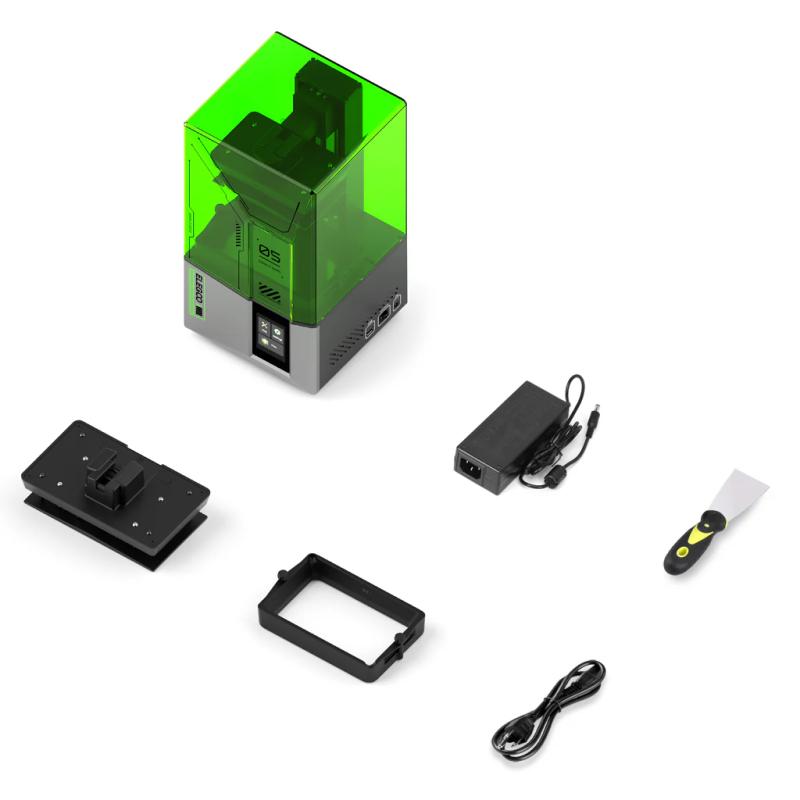

What's in the Box
Elegoo Mars 5 4K 3D Printer
Build Plate
Resin Tank
Funnel
Resin Tray
USB Flash Drive
Power Supply and Cables
User Manual and Quick Start Guide
