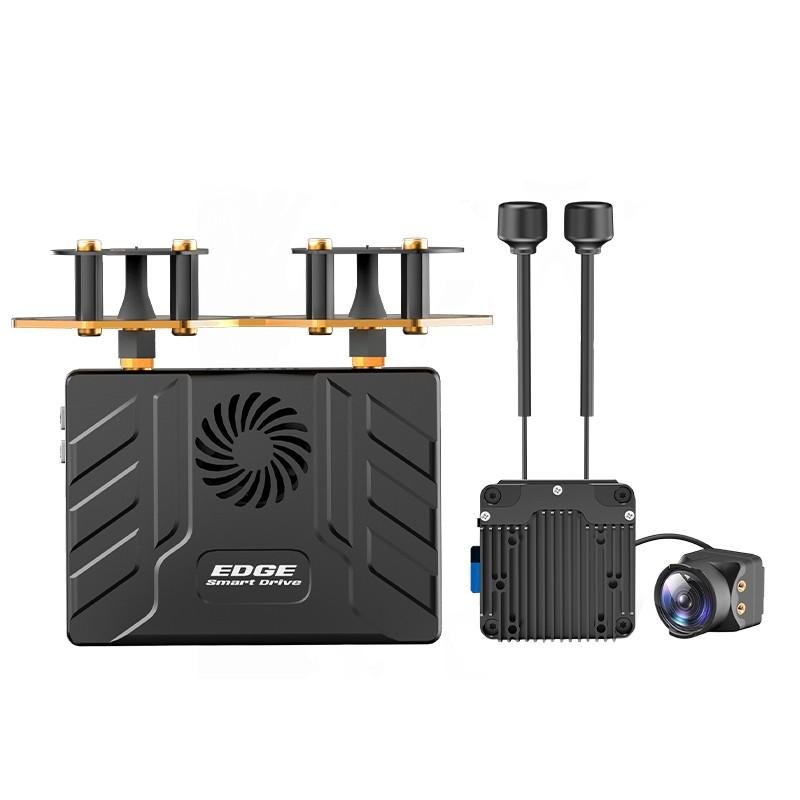

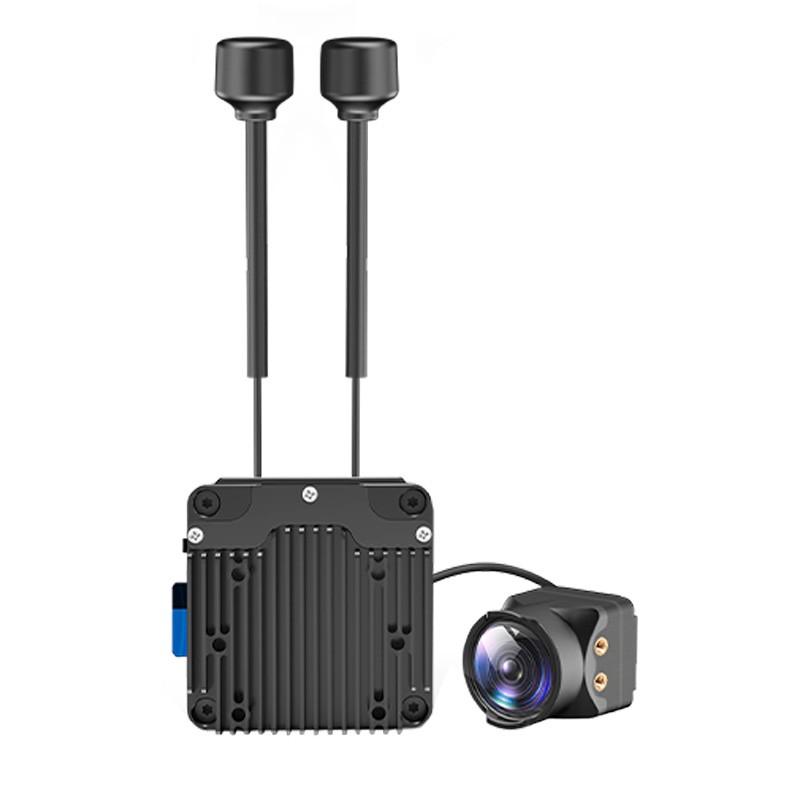

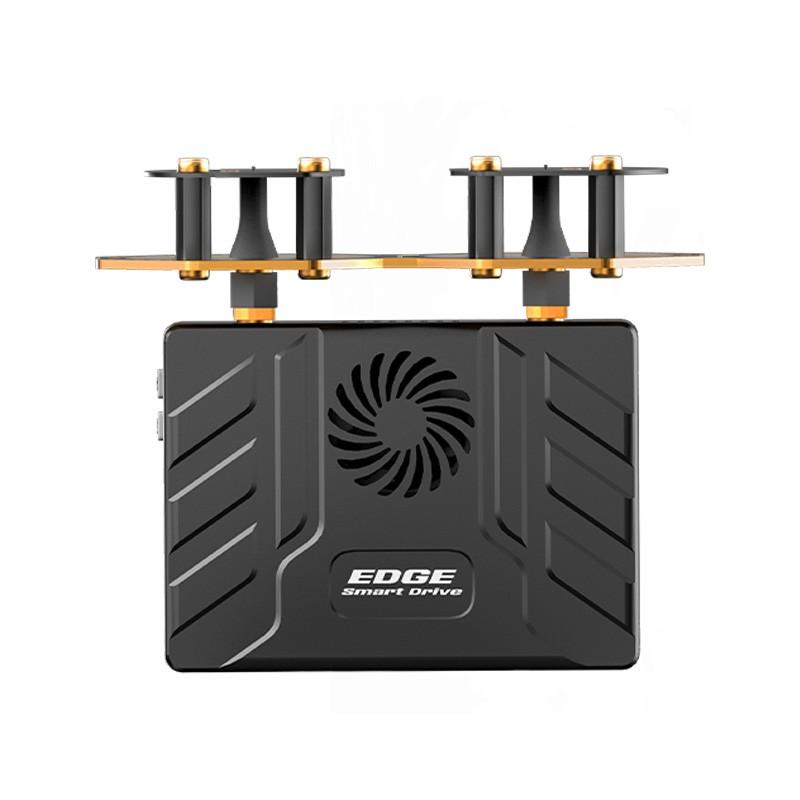

EDGE T3 – HD Digital Video Transmission
৳35,721
The EDGE T3 HD Digital Video Transmission System is a cutting-edge solution designed for drones, unmanned vehicles, and unmanned boats. It enables seamless communication and real-time video transfer, facilitating various operations such as aerial photography, surveillance, and remote control tasks. With its advanced features and reliable performance, the EDGE T3 is an essential device for modern unmanned systems.
| Feature | Specification |
|---|---|
| Video Resolution | 1080p @ 60fps |
| Max Video Bitrate | 120 Mbps |
| Transmission Range | Up to 35 km |
| Video Latency | Approximately 52 ms |
| RX Sensitivity | -97 dBm |
| Standby Power | 4 W |
| Operating Frequency | 5.18–5.24 GHz, 5.745–5.825 GHz |
| Transmit Power (EIRP) | FCC: 30 dBm, CE: <14 dBm, SRRC: <20 dBm |
| Interfaces | SH1.0-4P, SH1.0-6P, SH1.0-8P |
| Mounting Hole Spacing | 2×25.5 mm / 4×20 mm |
| Dimensions (Air Unit) | 36×36×11.8 mm |
| Weight (Air Unit) | 25 g (including heat sink) |
| MicroSD Support | 16–256 GB (for recording) |
| Supported Flight Controls | ArduPilot, Betaflight, iNav |
| Operating Temperature | 0°C to +50°C |
