Eachine TX06 700TVL FOV 130 Degree 5.8Ghz 40CH Smart Audio Mini FPV Camera+vtx
৳3,180

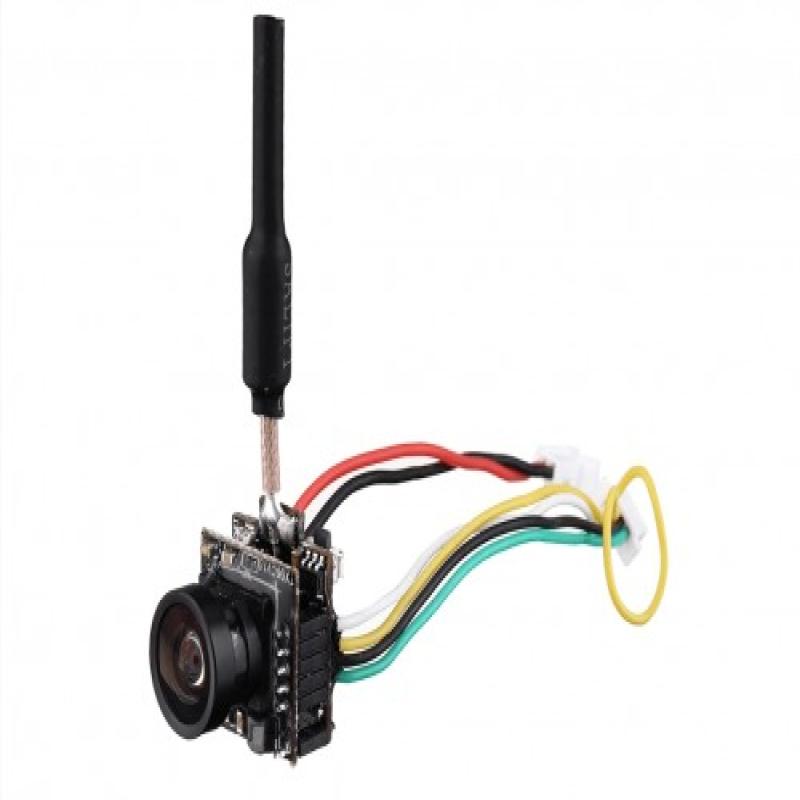

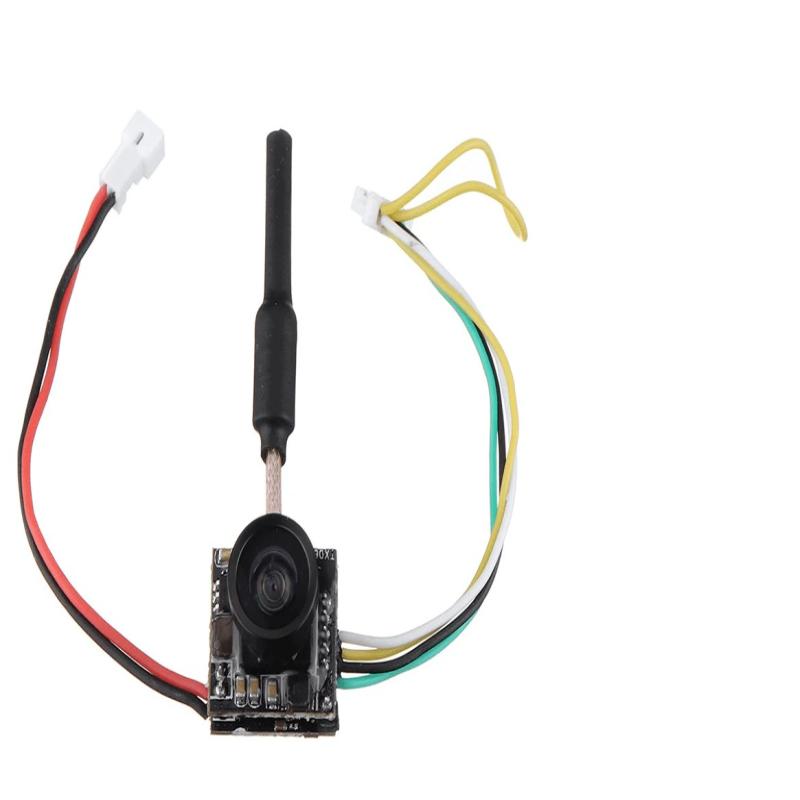

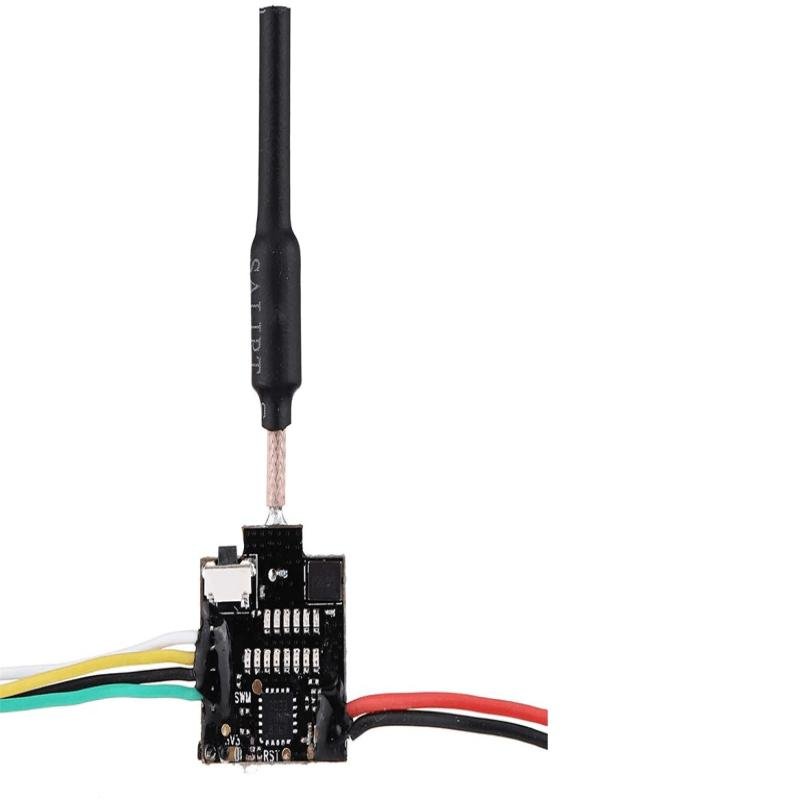

The Eachine TX06 is a compact All-in-One (AIO) FPV camera and video transmitter (VTX) designed for micro drones and Tiny Whoops. It offers a 700TVL resolution, a wide 130° field of view (FOV), and operates on a 5.8GHz frequency with 40 channels, including Raceband. With SmartAudio support and a lightweight design, it's ideal for DIY drone builds and offers excellent value for its price.
| Feature | Specification |
|---|---|
| Camera Resolution | 700TVL |
| Field of View (FOV) | 130° Horizontal, 110° Vertical |
| Frequency | 5.8GHz |
| Channels | 48 (including Raceband) |
| Output Power | 25mW |
| SmartAudio Support | Yes |
| Voltage Input | 3.3–5.5V |
| Current Consumption | 40mA @ 3.7V |
| Video Format | NTSC |
| Antenna Type | Brass Dipole |
| Weight | Approximately 1.8g |
| Dimensions | 19.5 × 19.5 × 10.5 mm |
