Digital Clamp Meter UNI-T UT203+
৳4650

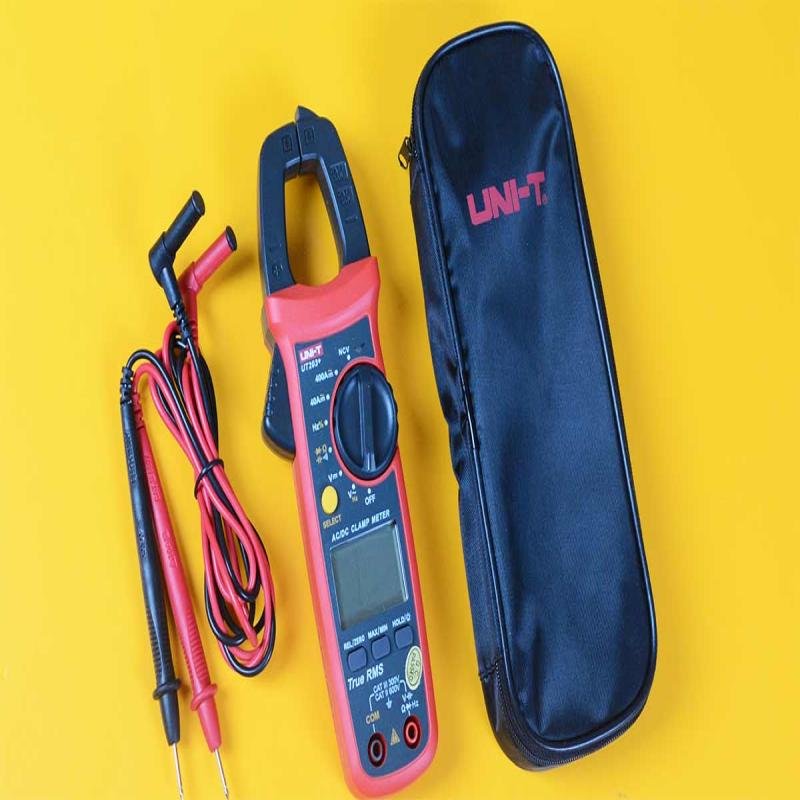

The UNI-T UT203+ Digital Clamp Meter is a versatile and reliable measuring instrument designed for electricians, technicians, and engineers in Bangladesh. It can measure AC/DC current, voltage, resistance, continuity, and more, making it an essential tool for both professional and educational use. Featuring a large digital display, clamp design for non-contact current measurement, and overload protection, this meter ensures safety and accuracy during operation. Widely trusted in industrial, commercial, and household electrical maintenance, the UT203+ is part of UNI-T’s professional-grade lineup known for durability, precision, and user-friendly design.
The UNI-T UT203+ Digital Clamp Meter is designed in compliance with EN61010-2010 CAT II 600V / CAT III 300V standards, offering overload protection, high reliability, safety, and accuracy. This True RMS clamp meter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and continuity, and also includes diode testing functionality, making it a versatile tool for electrical diagnostics.
Features of UT203+ Digital Clamp Meter:-
- Large screen and display digits
- 60mF large capacitance measurement
- Neutral/live wire test
- Ideal for Industrial electricity, Residential electricity, Air conditioning, Automobile etc.
- Functions:
- AC/DC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- duty ratio;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD with backlight.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption without backlight is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
- REL measurements.
Specification:-
- Brand: UNI-T
- Model: 203+
- Material: ABS
- Safety Rating: CAT II 600V, CAT III 300V
- Display Count: Max. 4000
- Jaw Opening: 28mm
- Auto off: 15 minutes
- Range: Auto
- AC Current Range: 40.00A/400.0A
- AC Current Resolution: 0.01A/0.1A
- DC Current Range: 40.00A/400.0A
- DC Current Resolution: 0.01A/0.1A
- AC Voltage Range: 4.000V/40.00V/400.0V/600V
- AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
- AC Voltage Frequency: 10Hz~60kHz
- AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
- DC Voltage Range: 400.0mV/4.000V/40.00V/400.0V/600V
- DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
- Resistance Range: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
- Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
- Capacitance Range: 40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF/40.00mF
- Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
- Frequency Range: 10Hz~10MHz
- Frequency Resolution: 0.01Hz~0.01MHz
- Duty Cycle Range: 0.1%~99%
- Duty Cycle Resolution: 0.1%
- Continuity Range: 400.0Ω
- Continuity Resolution: 0.1Ω
- Diode Range: 4.000V
- Diode Resolution: 0.001V
- Operating Temperature: 0~30℃ (humidity ≤ 80%RH), 30~40℃ (humidity ≤ 75%RH), 40~50℃ (humidity ≤ 45%RH)
- Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
- Altitude: 2,000 meters
- Power Supply: 2 * 1.5V AAA battery (NOT included)
- Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
- Item Weight: 268g / 9.45oz
- Package Weight: 359g / 12.66oz
- Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in
Package List:
- 1 * UNI-T UT203 Digital Clamp Multimeter
- 1 * Test Lead
- 1 * Carrying Bag
- 1 * English Manual
Documents:-
Check Specification Tab to know more.
User Manual Click Here
