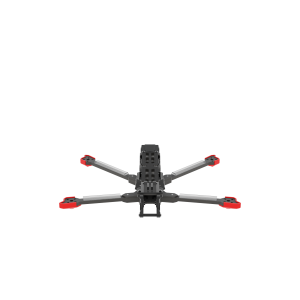

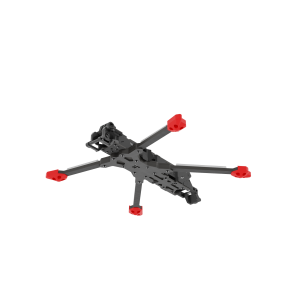

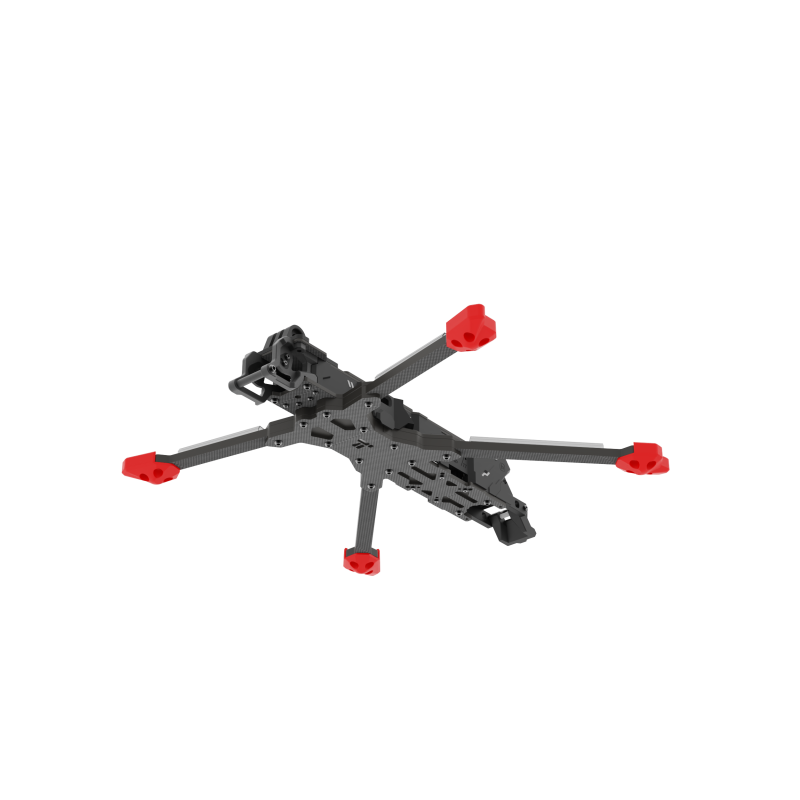

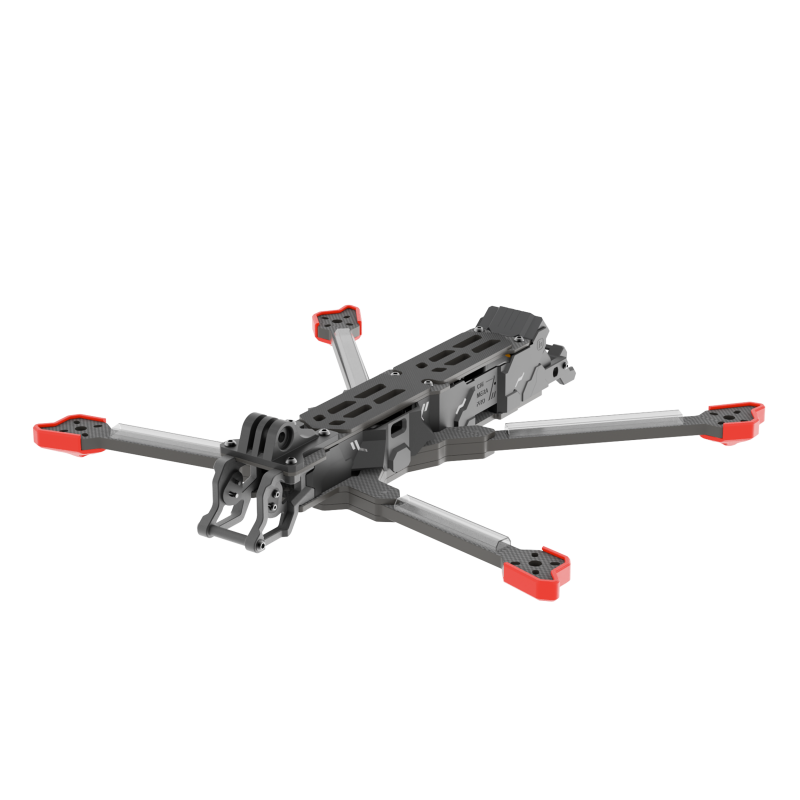

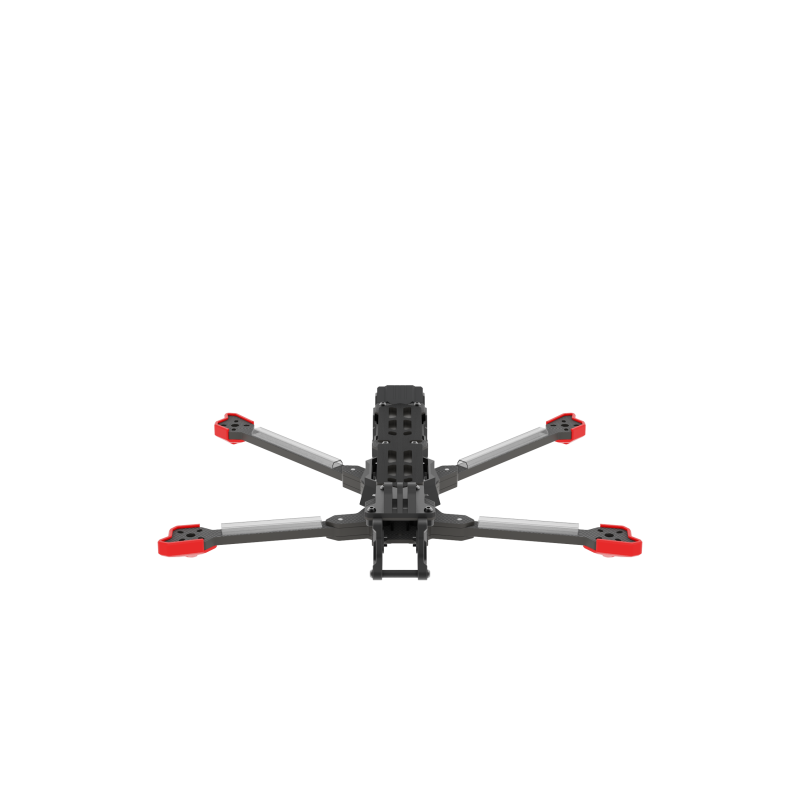

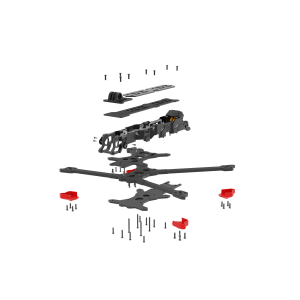

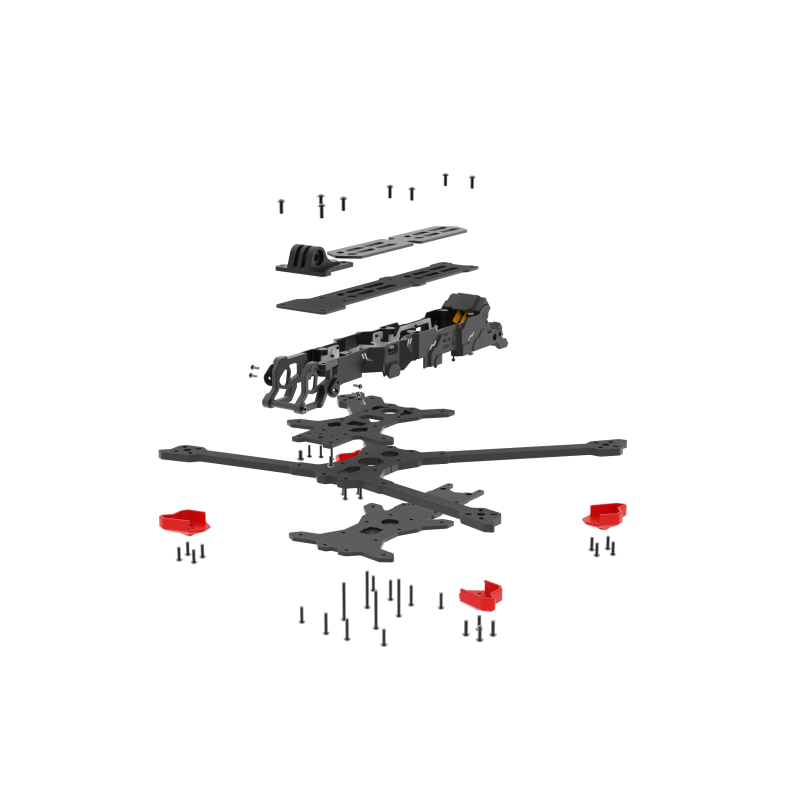

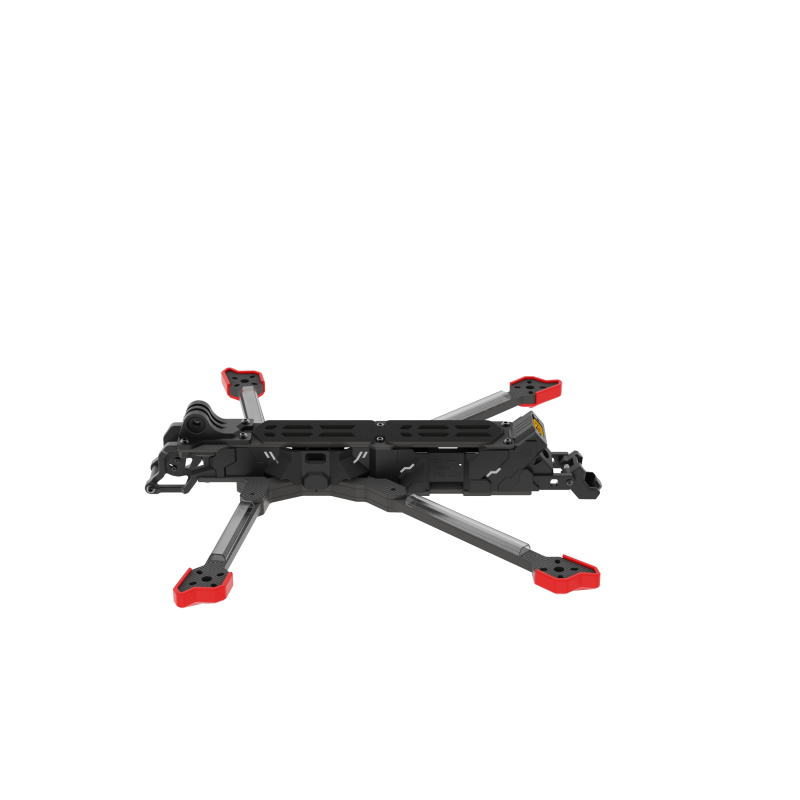

Chimera7 Pro V2 Frame Kit
৳16200

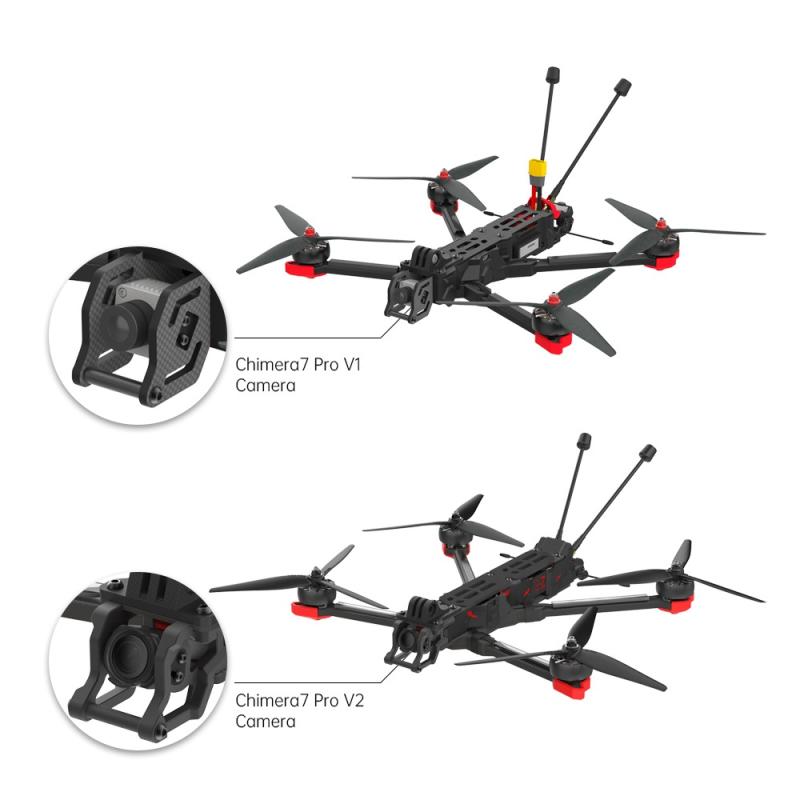

The iFlight Chimera7 Pro V2 Frame Kit is a 7.5" long-range frame designed to provide maximum stability and extended flight times during cinematic shoots. Crafted from super-stiff carbon fiber, this frame minimizes resonance and ensures durability. It is optimized for the DJI O3 Air Unit, featuring a specially designed heatsink, new camera mount for a wider field of view, and TPU damping inserts for enhanced performance. The frame supports both top-mounted and bottom-mounted battery configurations, with 6S LiPo or Li-ion batteries recommended for optimal performance.
| Feature | Details |
|---|---|
| Frame Type | Long-Range (7.5") |
| Material | Super-Stiff Carbon Fiber |
| Wheelbase | 327mm |
| Weight | 175g (excluding TPU parts) |
| Arm Thickness | 6mm |
| Top Plate Thickness | 2mm |
| Upper Plate Thickness | 3mm |
| Camera Plate Thickness | 3mm |
| Bottom Plate Thickness | 3mm |
| Frame Dimensions | 270mm (L) x 199mm (W) x 34mm (H) |
| Motor Mounting | 16x16mm / 19x19mm |
| VTX Mounting | 30.5x30.5mm (φ3mm) / 25x25mm (φ1.6mm) / 20x20mm (φ2mm) |
| Max Stack Height | 21mm |
| Max VTX Height | 30mm |
| Recommended Motors | 2806.5 (for optimal 7.5" prop control) |
| Recommended Batteries | 6S LiPo or Li-ion (top-mounted); 5S for slow cruising |
| Camera Compatibility | DJI O3 Air Unit |
| Additional Features | Specially designed heatsink for DJI O3 Air Unit, new camera mount for wider FOV with TPU damping inserts, new side panels to fit O3 Air Unit, dual 5.8GHz VTX antenna TPU mount |
