Chimera7 ECO Frame kit
৳12000

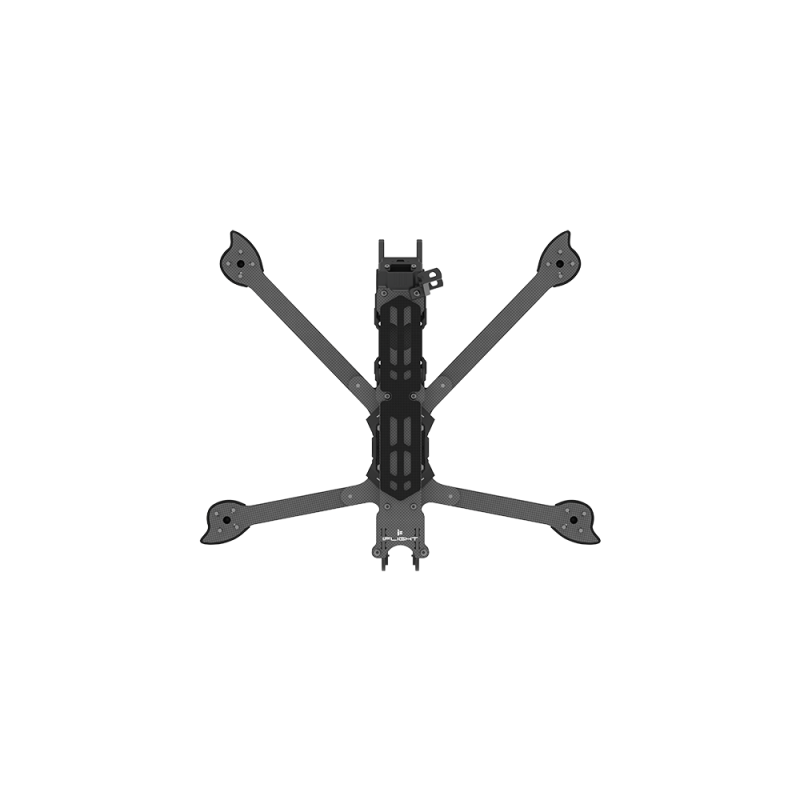

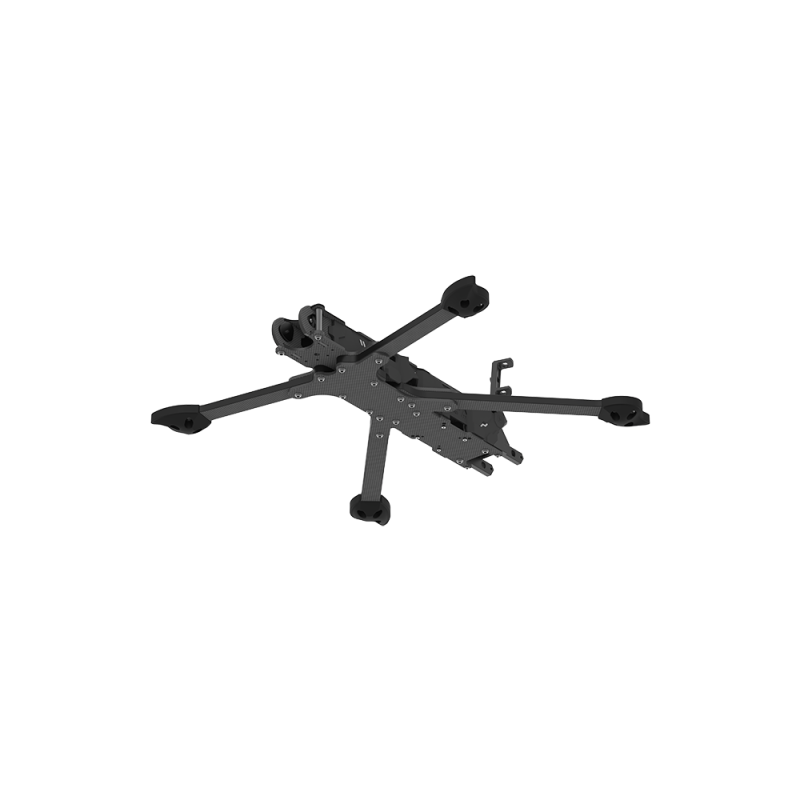

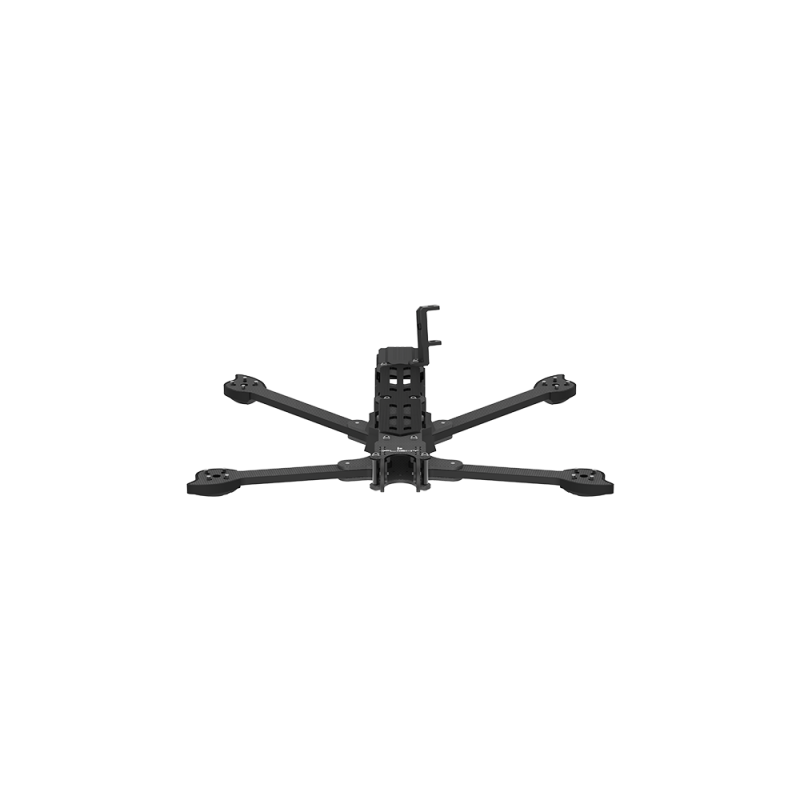

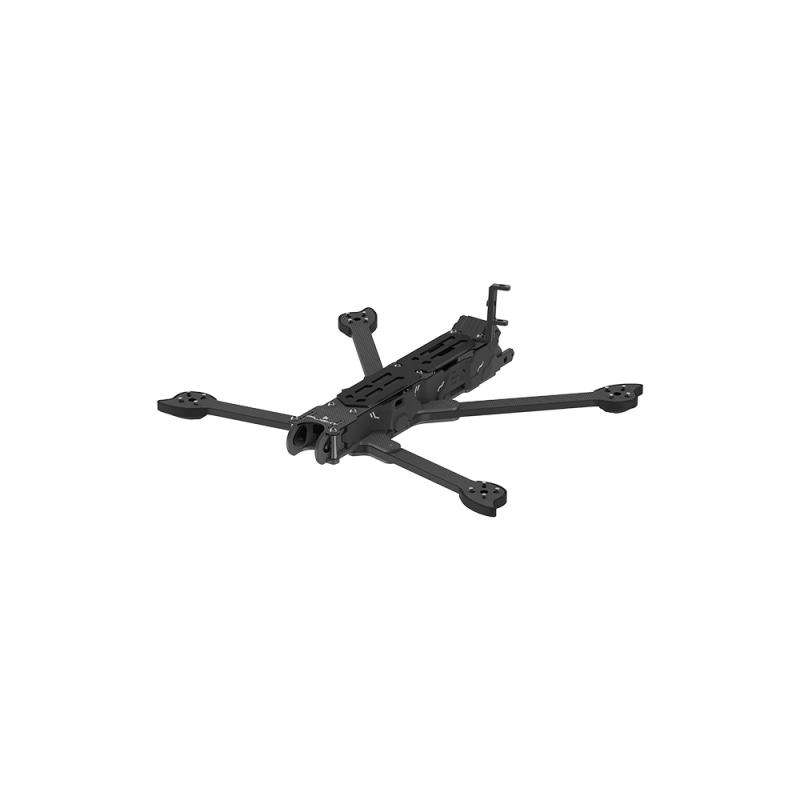

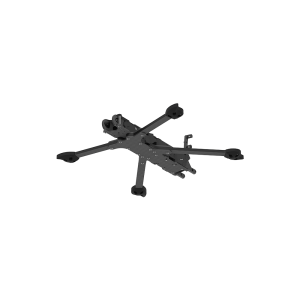

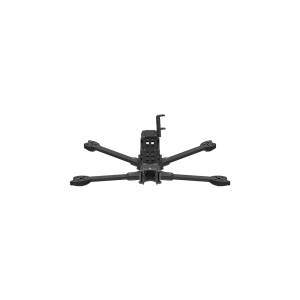

The iFlight Chimera7 ECO 7" Frame Kit is engineered for FPV pilots who demand performance and durability. Crafted from high-strength carbon fiber, this frame offers a balance of lightweight construction and robust resilience. The DeadCat design enhances flight stability and agility, making it ideal for dynamic long-range maneuvers. With a wheelbase of 327mm and support for up to 7.5-inch propellers, it accommodates a wide range of motor and propeller combinations. The frame's aerodynamic design and compatibility with various setups make it a versatile choice for pilots aiming to push the boundaries of their FPV flying experience.
| Feature | Details |
|---|---|
| Frame Type | DeadCat |
| Material | High-strength carbon fiber |
| Wheelbase | 327mm |
| Frame Dimensions | L270 x W199 x H34 mm |
| Arm Thickness | 6mm |
| Bottom Plate Thickness | 3mm |
| Top Plate Thickness | 2mm |
| Upper Plate Thickness | 3mm |
| Camera Plate Thickness | 3mm |
| Max Flight Stack Height | 21mm |
| Max VTX Height | 30mm |
| Flight Stack Mounting | 30.5x30.5mm / φ3mm |
| VTX Mounting | 30.5x30.5mm φ3mm / 25x25mm φ1.6mm / 20x20mm φ2mm |
| Motor Mounting | 16x16mm / 19x19mm φ3mm |
| Weight | 357g |
| Included Components | Frame kit, TPU set, screw bag, anti-slip battery pad, 2 battery straps, 4 AMASS MR30 plugs |
| Ideal For | Long-range FPV enthusiasts seeking a durable, lightweight frame |
