BOB57 O3 Frame Kit

৳16800

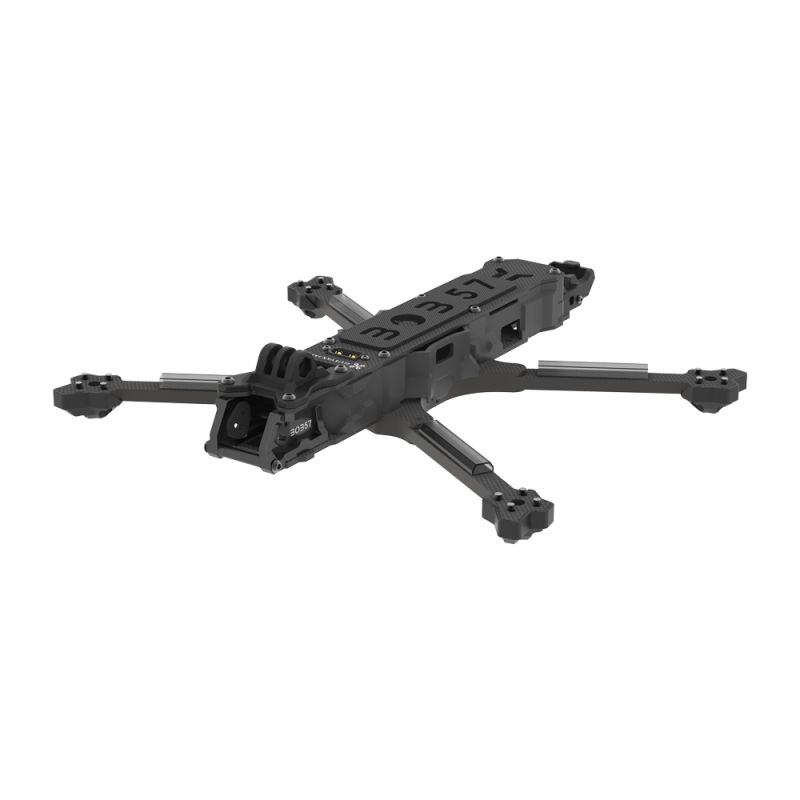

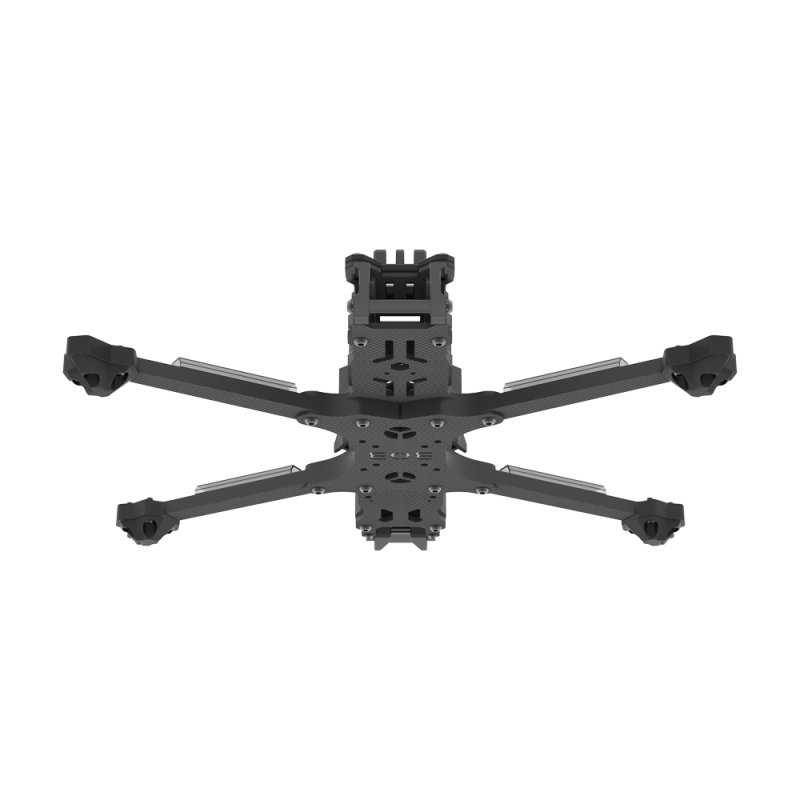

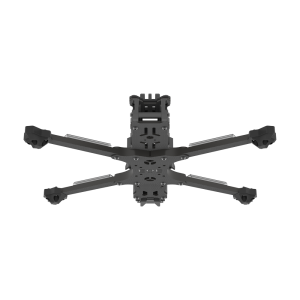

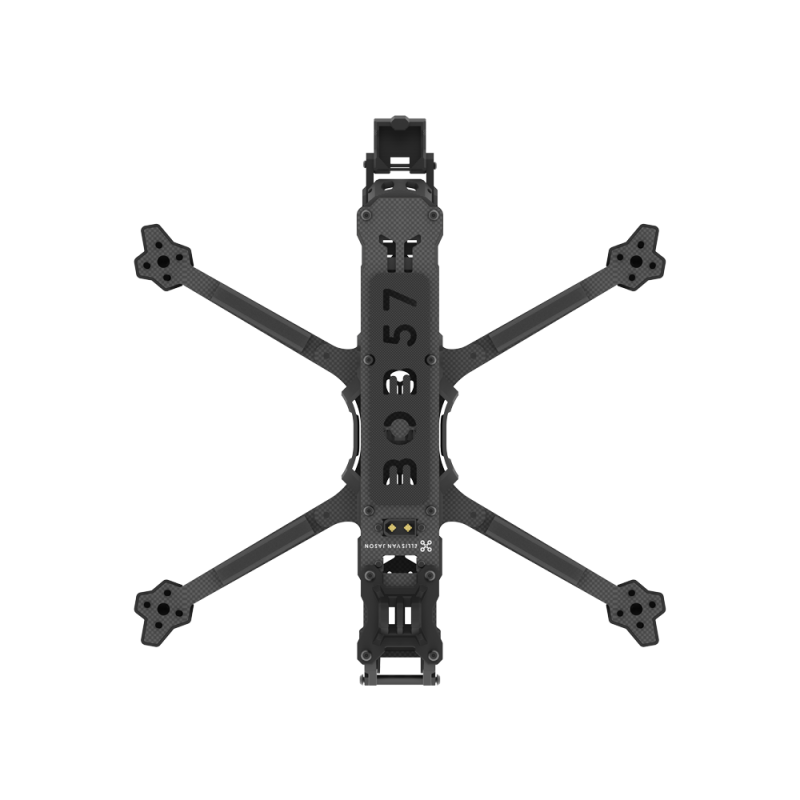

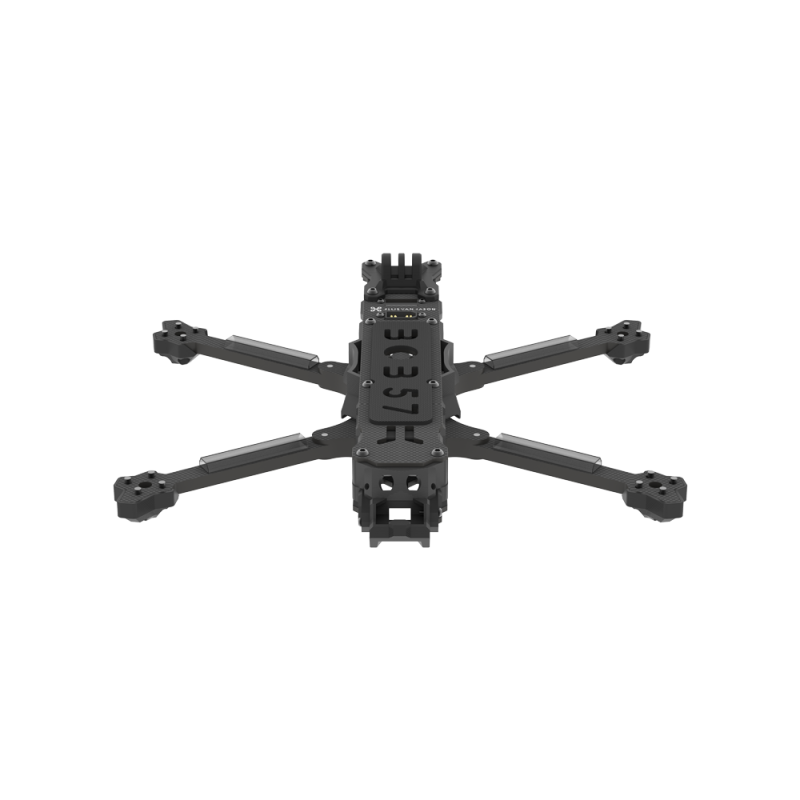

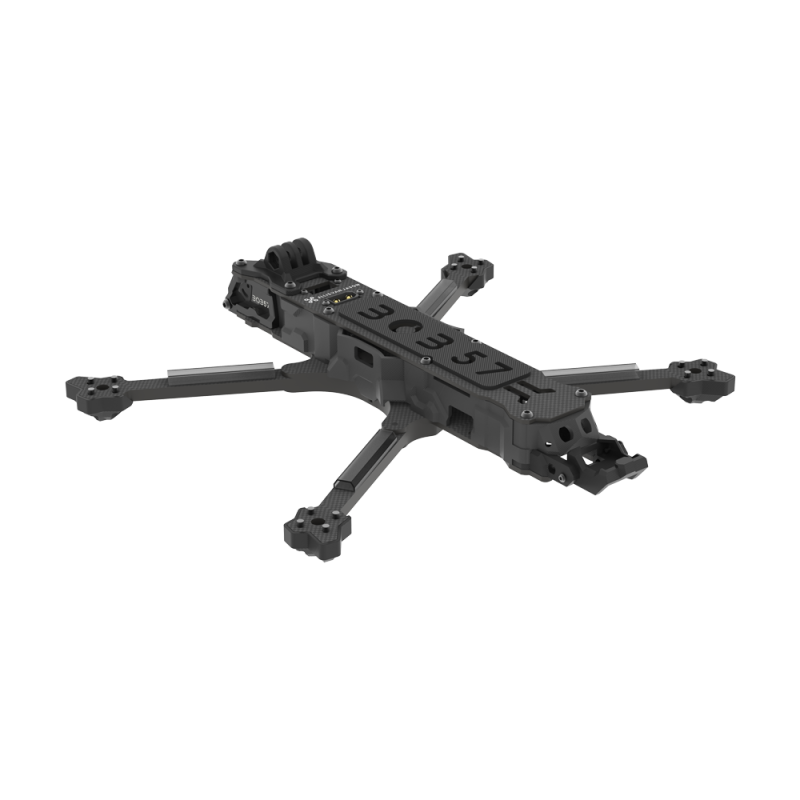

The iFlight BOB57 O3 Frame Kit is a 6-inch long-range and cinematic drone frame designed in collaboration with pilot and videographer Ellis van Jason. This frame combines the agility and flight time advantages of both 5-inch and 7-inch drones, making it suitable for both cinematic and freestyle flights. The hybrid motor design allows compatibility with both bi-blade and tri-blade 6" propellers, providing versatility in flight dynamics. The solid antenna mount reduces oscillations when using long antennas, ensuring stable video transmission. The H-shaped frame with a robust middle section minimizes propeller visibility in the camera view, enhancing the cinematic experience. Additionally, the Gladiator shell offers protection from dust and water droplets, increasing the frame's durability in various environments. The front-mounted XT-60 battery connector provides a clean setup and easy access.
Categories: Drone / Frame Brand: Made in China SKU: Available
Share :
Feature Details
Frame Type Long-Range / Cinematic (6")
Material Super-Stiff Carbon Fiber
Wheelbase 278mm
Weight 305g
Arm Thickness 6mm
Bottom Plate Thickness 1.5mm
Top Plate Thickness 2mm
Upper Plate Thickness 2.5mm
Frame Dimensions L165mm x W225mm x H34mm
Frame Body Dimension 34mm
Motor Mounting 16x16mm
VTX Mounting 25.5x25.5mm (Φ1.6mm), 20x20mm (Φ2mm)
Battery Mounting Front-mounted XT-60
Camera Compatibility DJI O3 Air Unit
Propeller Compatibility 6" bi-blade or tri-blade
Additional Features Hybrid motor design, solid antenna mount, H-shaped frame, Gladiator shell for dust and water protection
