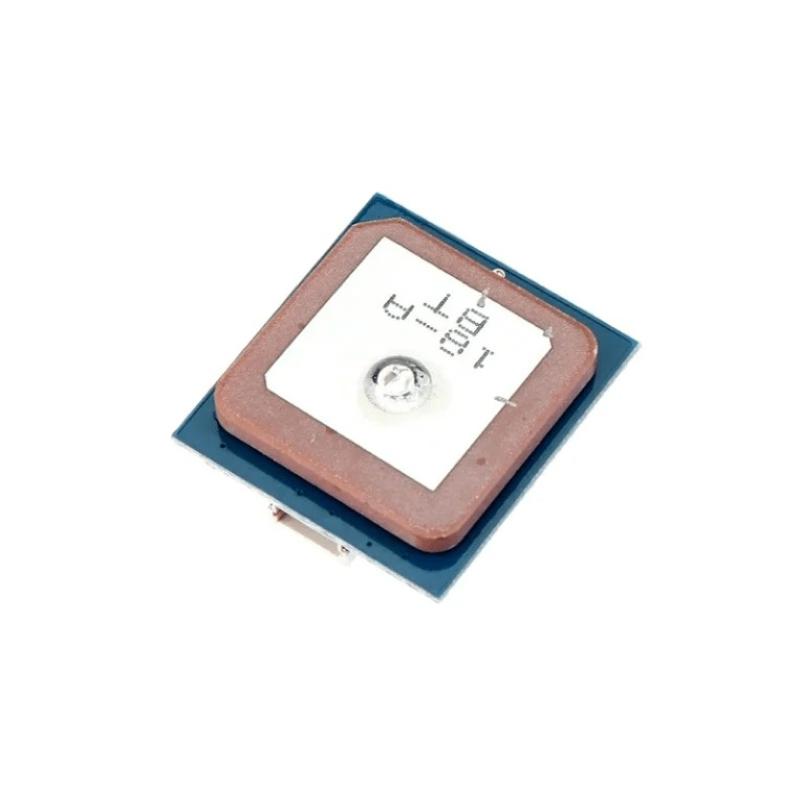

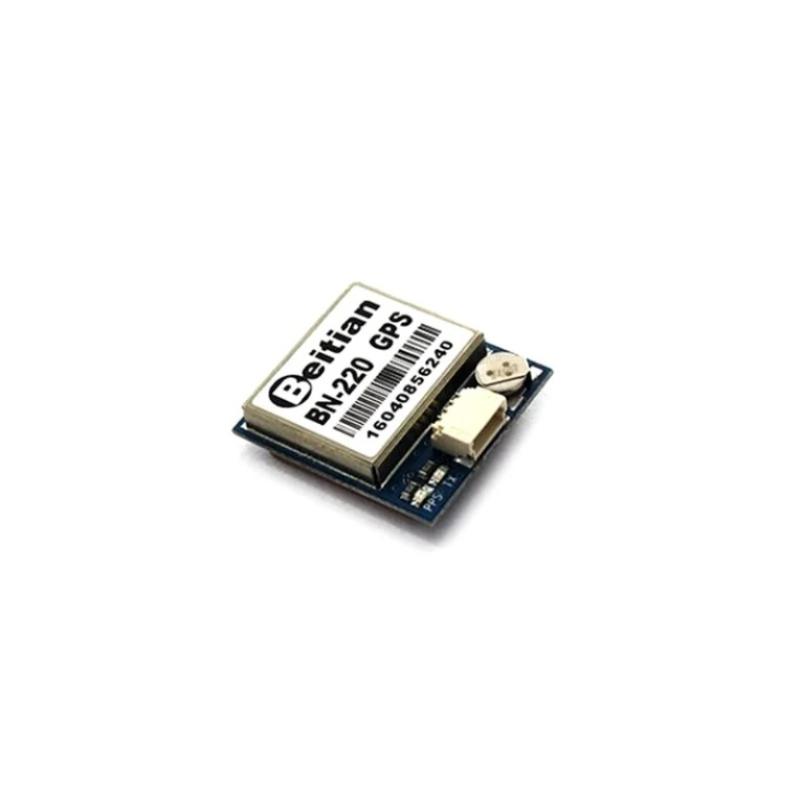

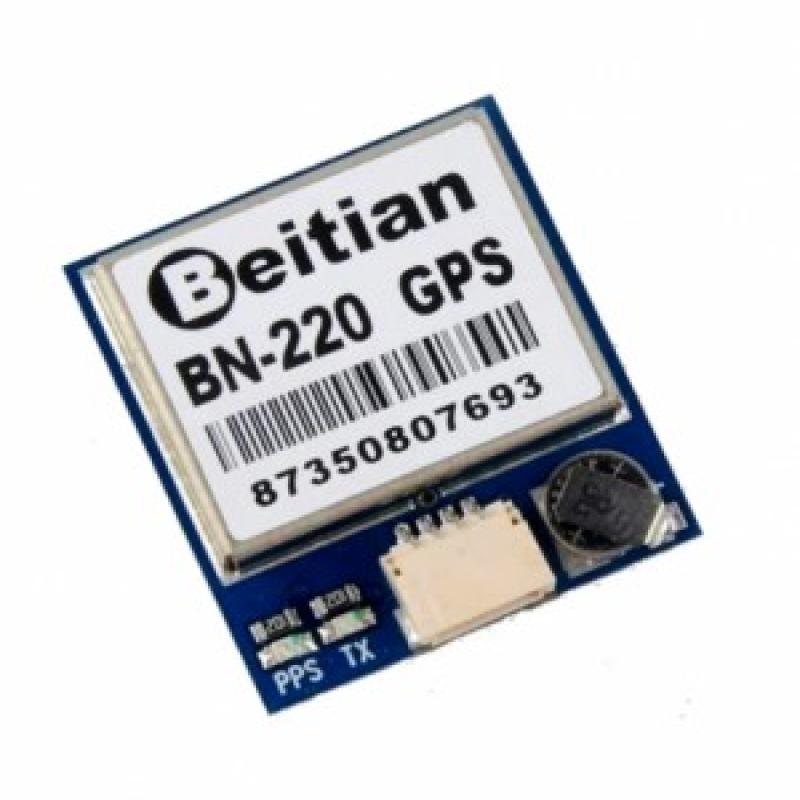

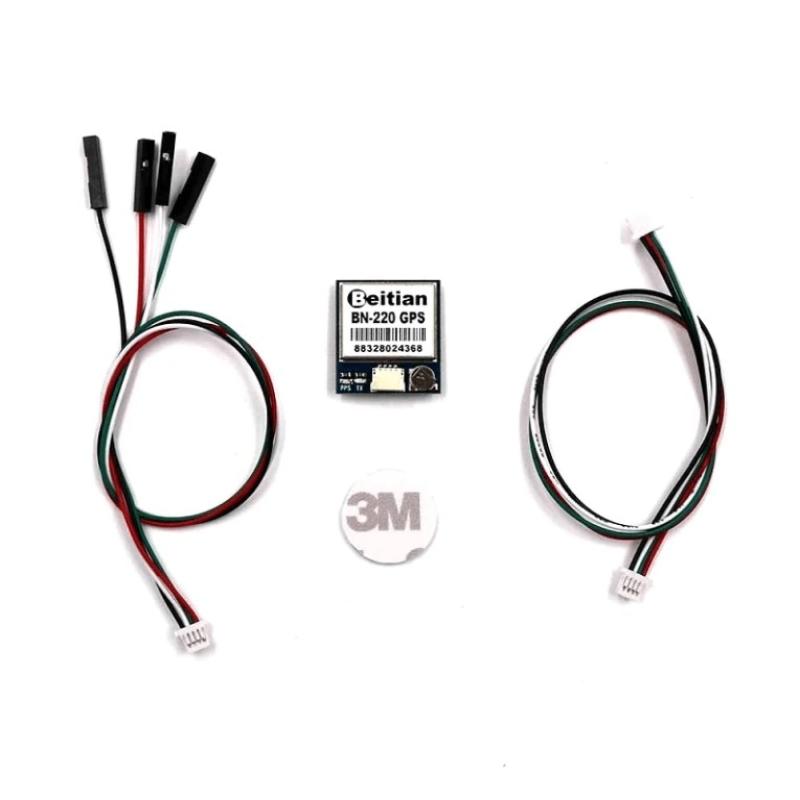

BN-220 GPS Module
৳1860 ৳2160
The Beitian BN-220 GPS Module is a compact and high-performance navigation solution designed for drone enthusiasts and professionals seeking precise positioning capabilities. Leveraging the advanced u-blox M8030-KT chipset, this module offers enhanced accuracy and reliability for various UAV applications.
| Feature | Specification |
|---|---|
| Chipset | u-blox M8030-KT |
| Supported Satellite Systems | GPS L1, GLONASS L1, BeiDou B1, Galileo E1, QZSS L1, SBAS L1 |
| Input Voltage | 3.0V – 5.5V |
| Baud Rate | 9600bps |
| Protocols | NMEA-0183, UBX |
| Navigation Update Rate | Up to 18Hz (single GNSS), up to 10Hz (dual GNSS) |
| Horizontal Position Accuracy | 2.0m CEP (SBAS enabled) |
| Velocity Accuracy | 0.1m/s |
| Cold Start Time | 26 seconds |
| Warm Start Time | 25 seconds |
| Hot Start Time | 1 second |
| Sensitivity | Tracking: –167 dBm; Reacquisition: –160 dBm; Cold Start: –148 dBm; Hot Start: –156 dBm |
| Operating Temperature | –40°C to +85°C |
| Dimensions | 22mm × 20mm × 6mm |
| Weight | 5.3g |
