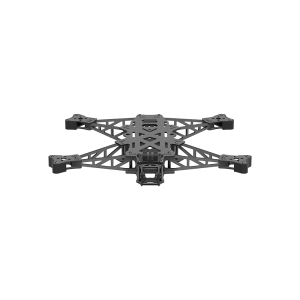

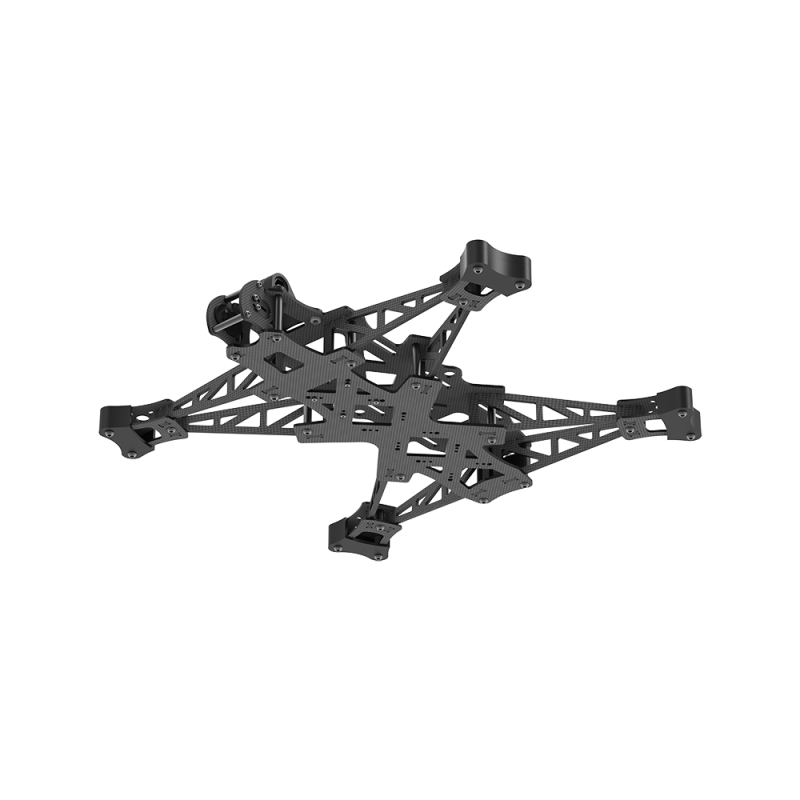

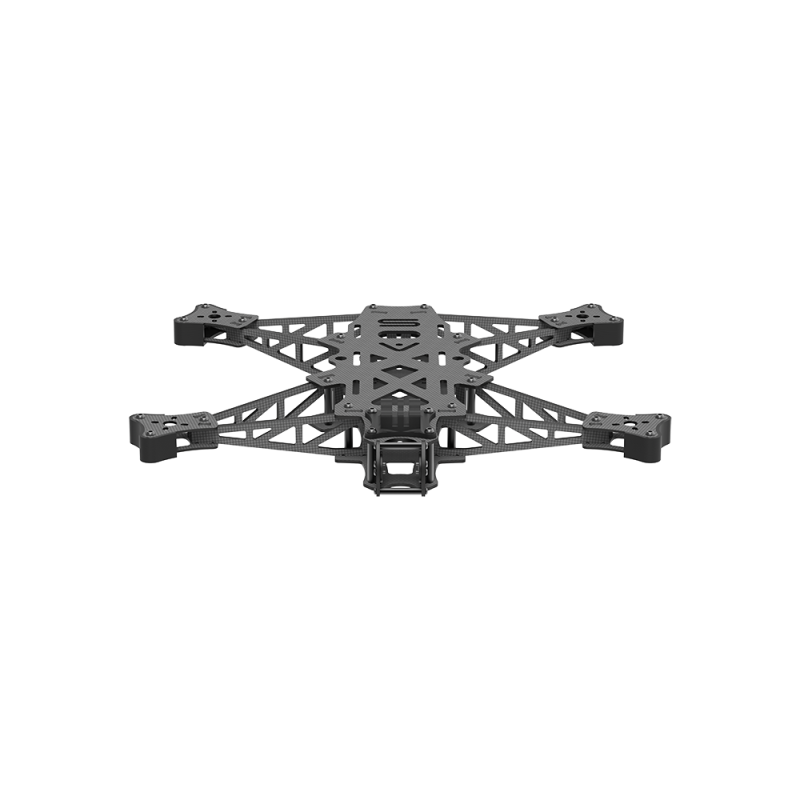

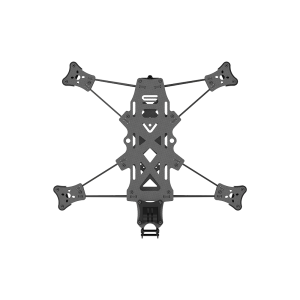

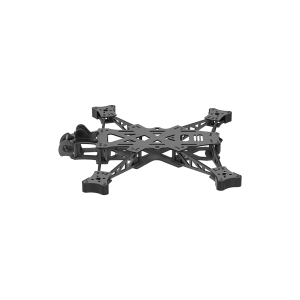

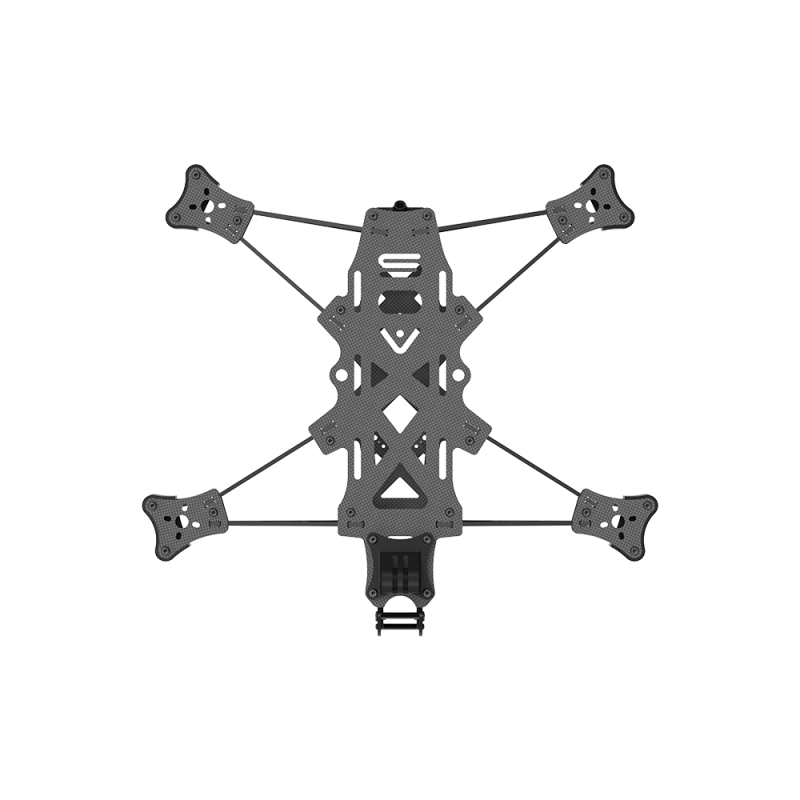

AOS UL7 FPV Frame Kit

৳14400
The AOS UL7 FPV Frame Kit is engineered for FPV enthusiasts seeking a balance between durability and performance. Crafted from high-quality carbon fiber, this frame offers robust protection for your components. Its long-range configuration ensures that the props remain out of the camera's view, providing unobstructed footage. With a wheelbase of 312mm and support for 7-inch propellers, it accommodates a wide range of motor and propeller combinations. The frame's aerodynamic design and compatibility with various setups make it a versatile choice for pilots aiming to push the boundaries of their FPV flying experience.
Categories: Drone / Frame Brand: Made in China SKU: Available
Share :
Feature Details
Frame Type Long-Range (7")
Material Carbon Fiber
Wheelbase 312mm
Weight Approximately 230g
Arm Thickness 3mm
Top Plate Thickness 2mm
Bottom Plate Thickness 2mm
Side Plate Thickness 2mm
Motor Mounting 16x16mm / 19x19mm
VTX Mounting 20x20mm / 25.5x25.5mm / 30.5x30.5mm
Stack Mounting 20x20mm / 25.5x25.5mm / 30.5x30.5mm
Max Stack Height 25mm
Max VTX Height 25mm
Recommended Motors 2806–2808 (for optimal 7" prop control)
Recommended Batteries 6S LiPo or Li-ion (top-mounted); 5S for slow cruising
Camera Compatibility DJI O3 Air Unit
Additional Features Soft camera mount to reduce vibrations, supports ND filters with DJI O3, flexible camera fit for 14mm or 20mm FPV cams, vertical truss arm structure for lightweight and stiff design
