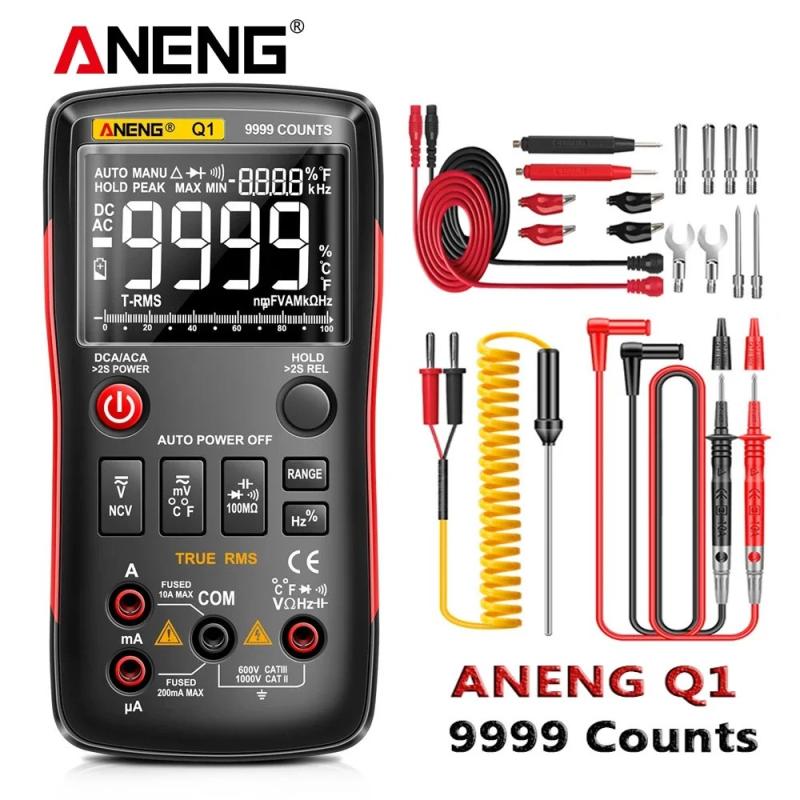

ANENG Q1 True-RMS Digital Multimeter (Original)
৳6270
The ANENG Q1 is a compact and reliable digital multimeter designed for professionals and hobbyists alike. Whether you're troubleshooting household electronics, conducting low-voltage circuit analysis, or performing routine maintenance, this multimeter offers the accuracy and durability you need.
| Function | Measuring Range | Best Accuracy | Resolution |
|---|---|---|---|
| DC Voltage | 999.9mV/9.999V/99.99V/999.9V | ±(0.5%+3) | 0.1mV |
| AC Voltage | 999.9mV/9.999V/99.99V/750.0V | ±(1.0%+3) | 0.1mV |
| DC Current | 999.9mA/9.999A | ±(1.0%+3) | 0.01mA |
| AC Current | 999.9mA/9.999A | ±(1.0%+3) | 0.01mA |
| Resistance | 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ | ±(0.5%+3) | 0.01Ω |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF | ±(2.0%+5) | 0.01nF |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/2.000MHz | ±(0.1%+2) | 0.01Hz |
| Duty Cycle | 1%–99% | ±(0.1%+2) | 0.1% |
| Diode Test | – | – | – |
| Continuity | Buzzer at 10Ω–120Ω | – | – |
| Temperature | – | ±(2.5%+5) | – |
