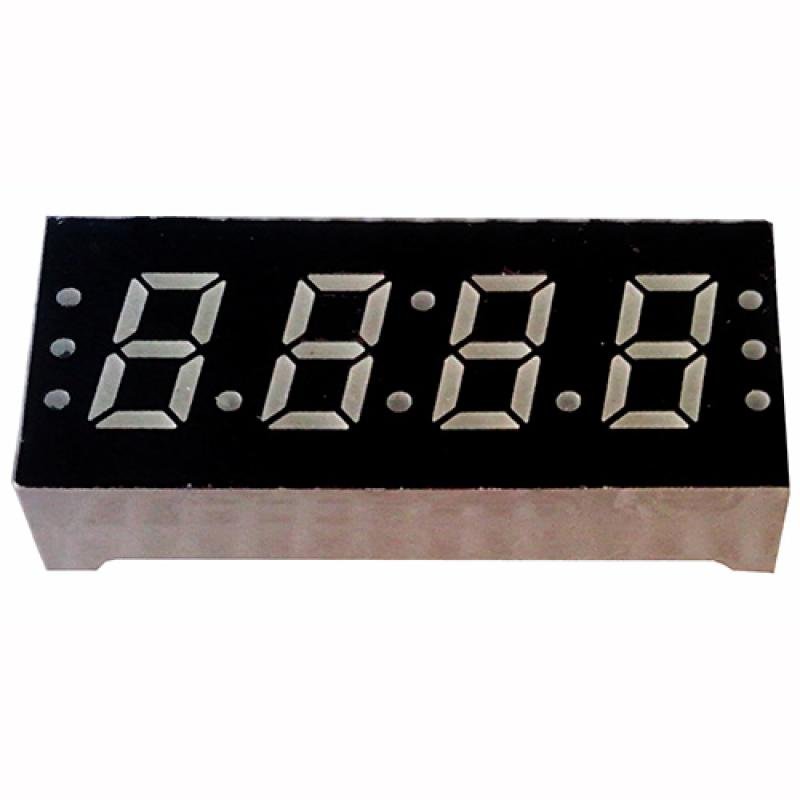

7 Segment Display CA - 4 Digit (0.30in)
৳42
The 0.30" 4-Digit Common Anode 7 Segment Display is a space-saving solution for displaying numerical data in your electronics projects. Its compact size makes it perfect for portable devices, while the bright LED segments ensure clear visibility. Compatible with Arduino, Raspberry Pi, and various microcontrollers, it’s ideal for clocks, timers, and sensor readouts in Bangladesh.
A basic 4-digit 7-segment LED display with red illumination and a common anode configuration. Each digit includes a decimal point, along with individually controllable apostrophe and colon points—ideal for clocks, counters, and numeric displays.
-
Forward Voltage: 2.1V DC
-
Max Forward Current: 20mA
-
High luminous intensity output
-
Low voltage & current operation
-
Long lifespan
-
IC compatible
-
Environmentally friendly
-
Applications:
- Audio equipment or instrument panels
- Indoor and outdoor display
- General use for digital indicators
- Multimedia product
- Elevtor/lift
- Bank exchange rate display
- LED clock display
Function
Value
Peak Forward Current
100mA
Continuous Forward Current
20 mA
Reverse Voltage
5V
Digit Height
0.30"
Figure Size
30.4x13.2x7mm
Forward Current 20mA Operating temperature Range -30 to +70 Degrees Celsius
